Automatic Transmission/Transaxle
>>

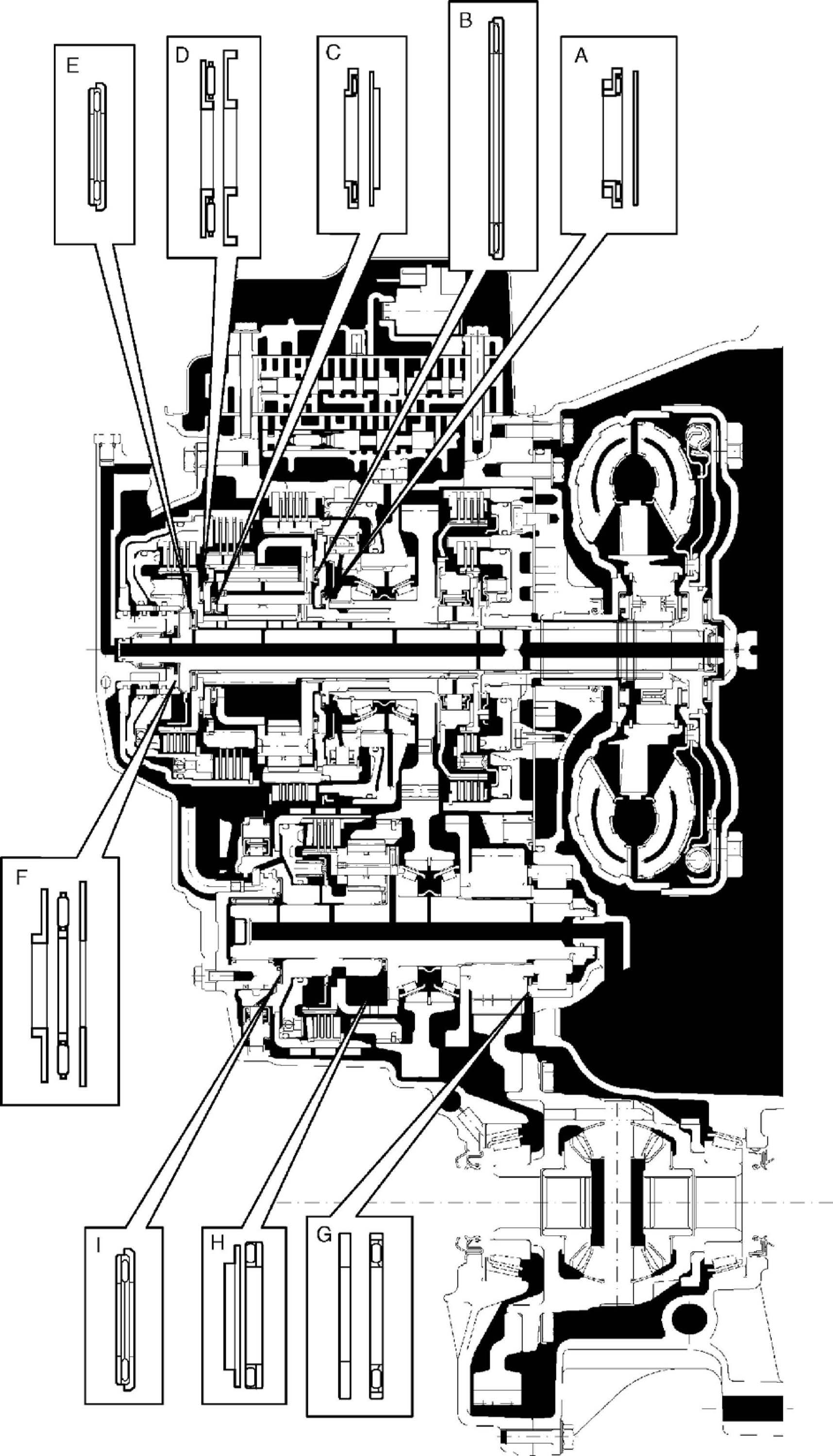

Bearing and Race Installation Diagram
Bearing and Race Installation Diagram
Bearing and Race Installation Diagram

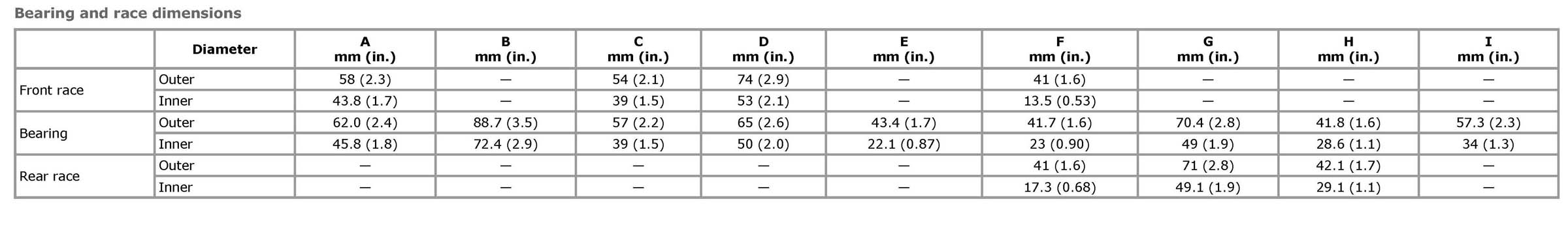

Bearing and race dimensions
