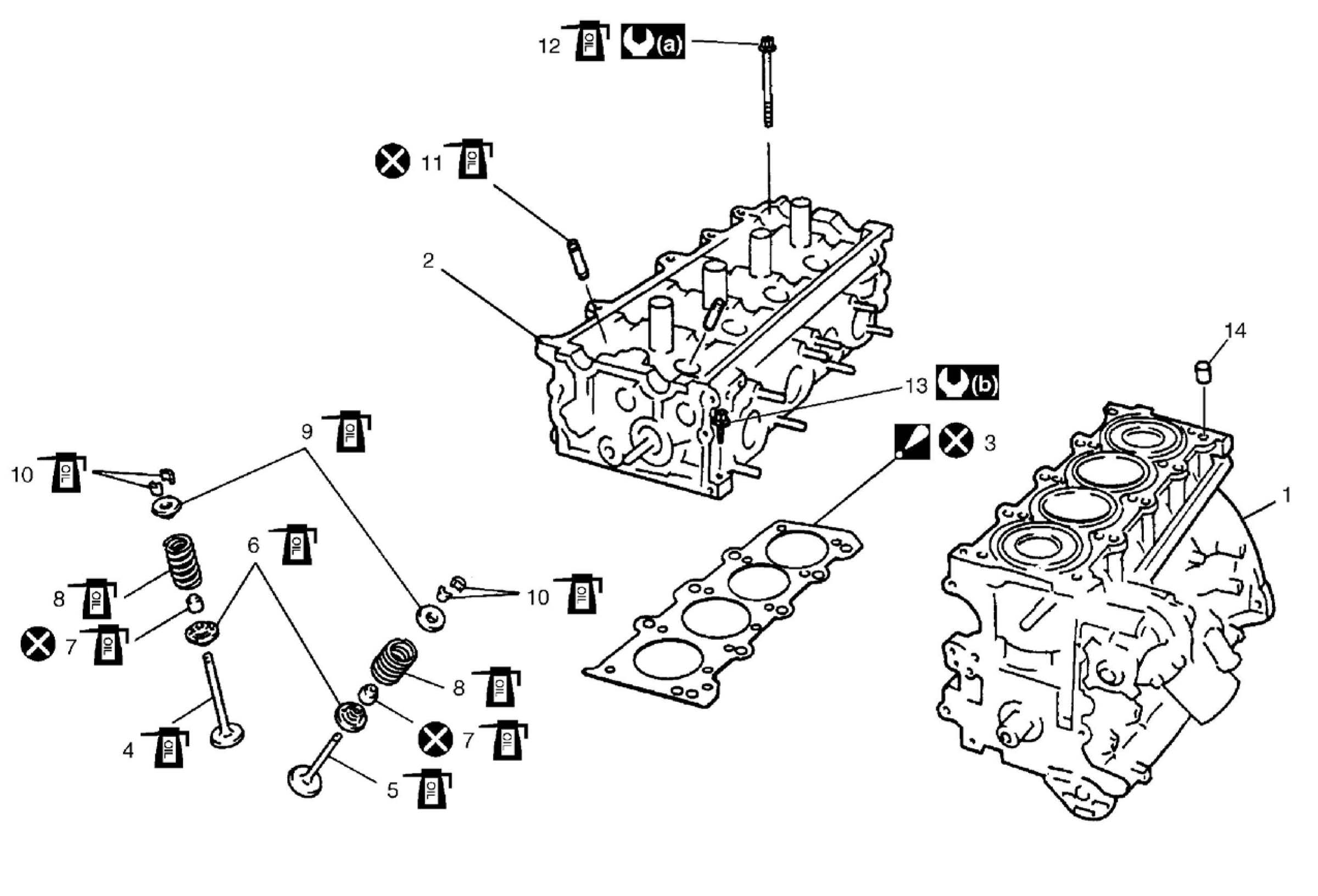

Exploded Views
>>
Cylinder Head Assembly
>>
Valves and Cylinder Head Components

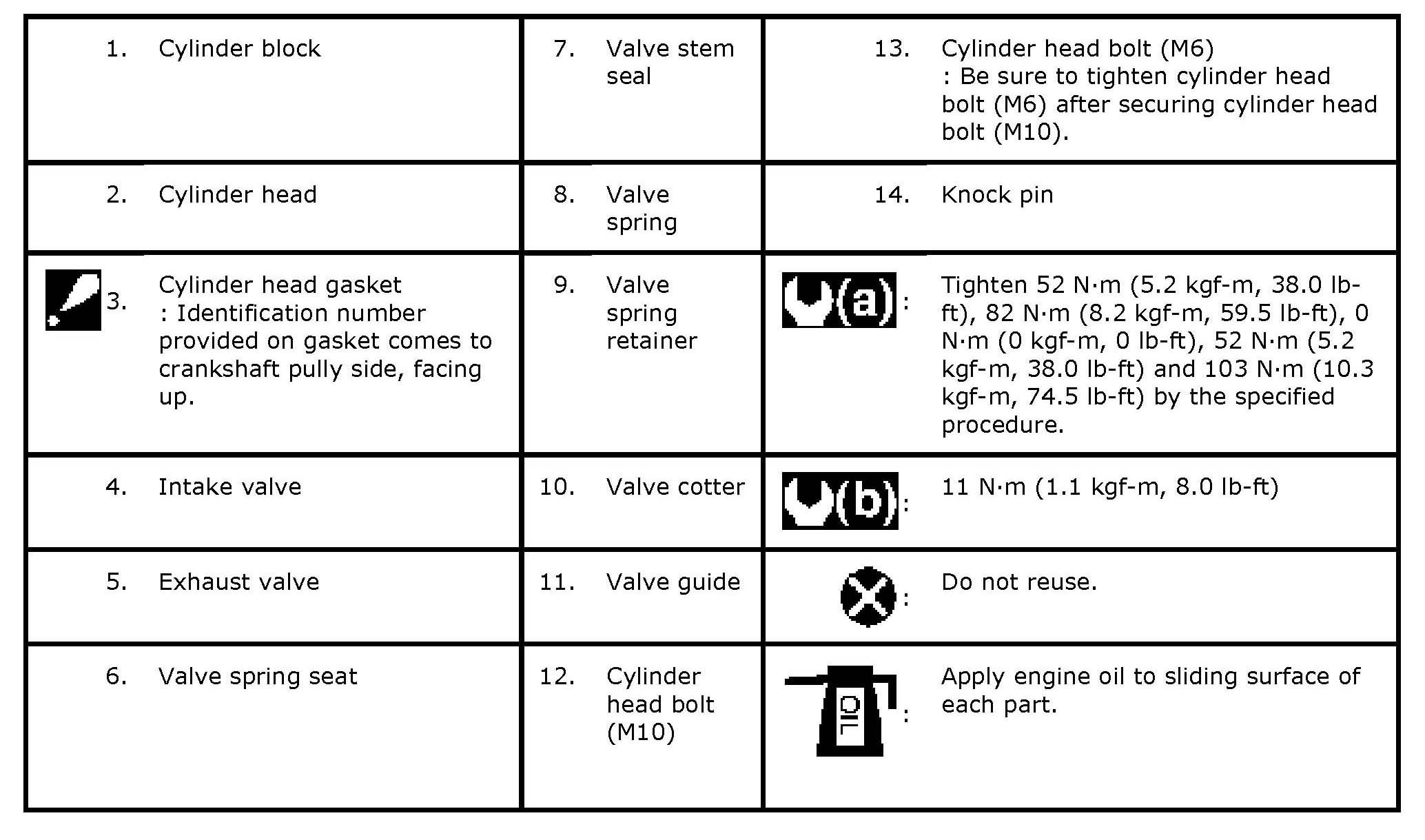

Valves and Cylinder Head Components
Valves and Cylinder Head Components
