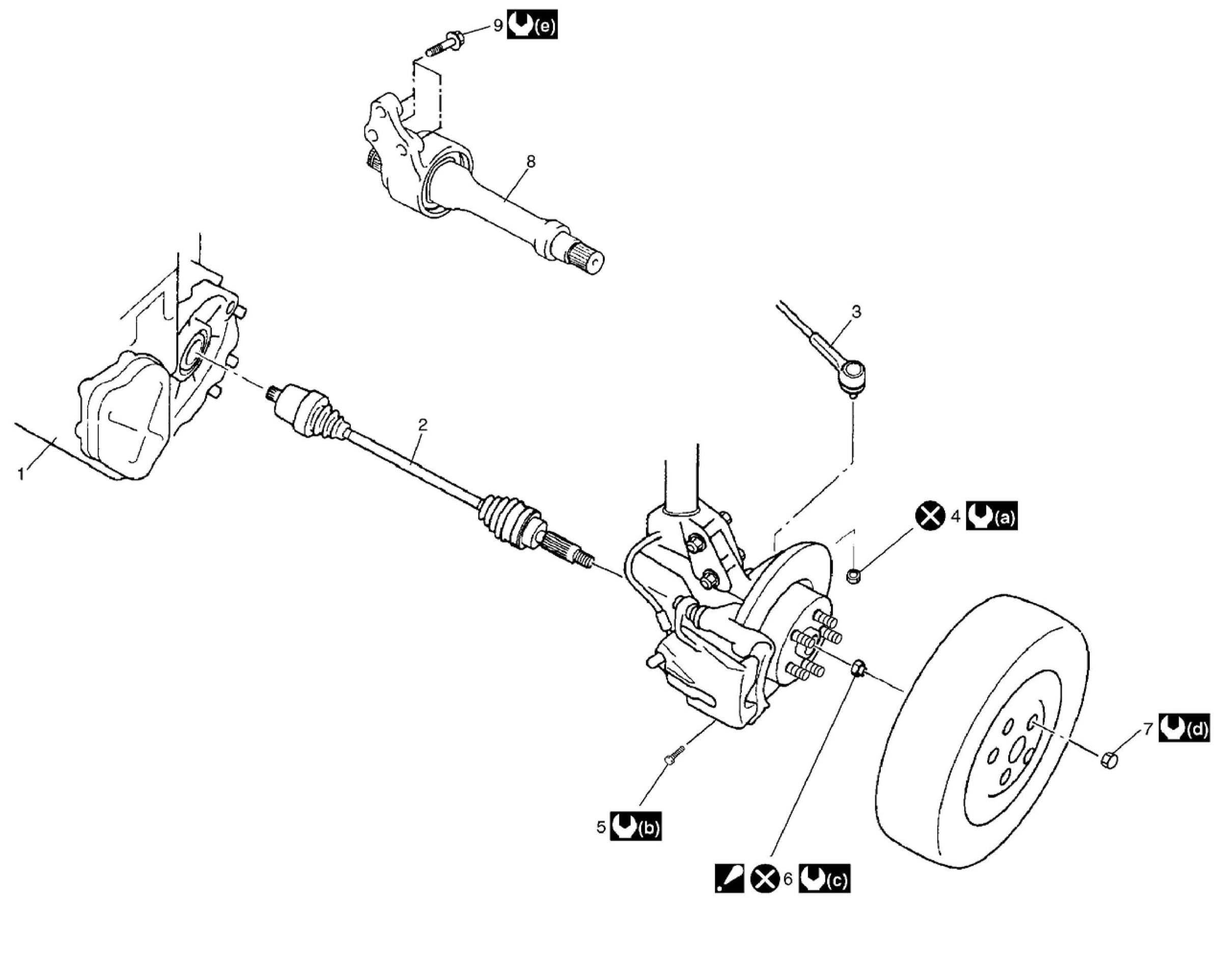

Front Drive Shaft Assembly Components Location

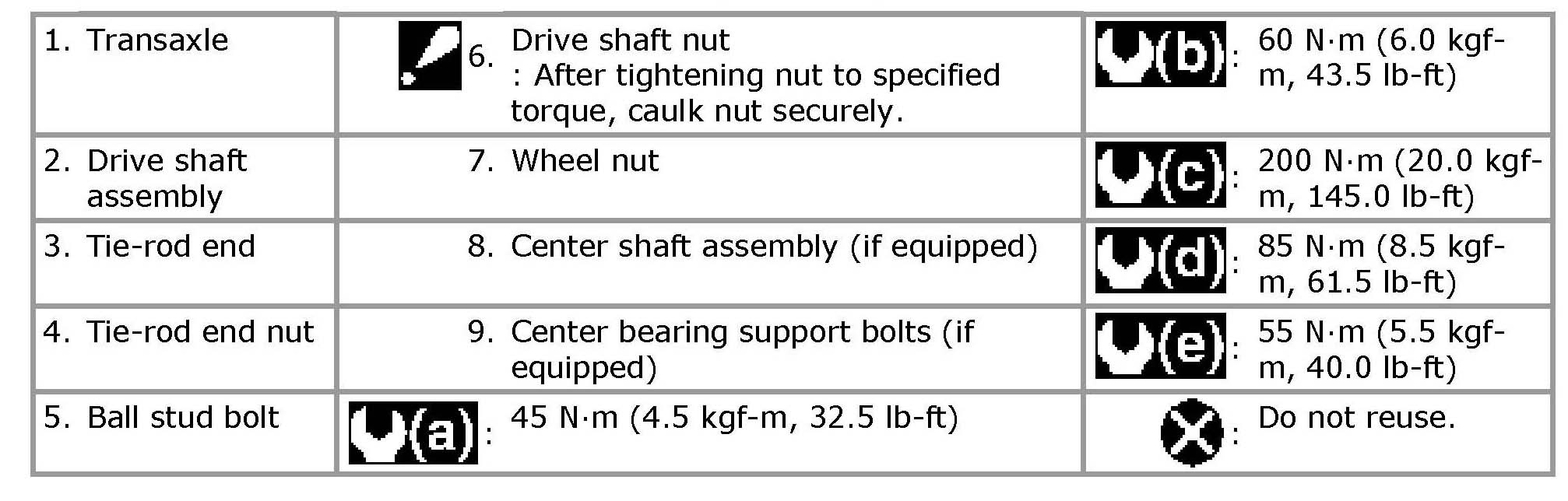

Front Drive Shaft Assembly Components Location
Front Drive Shaft Assembly Components Location
