Home >> Suzuki >> 2009 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Description and Operation

Suspension: Description and Operation

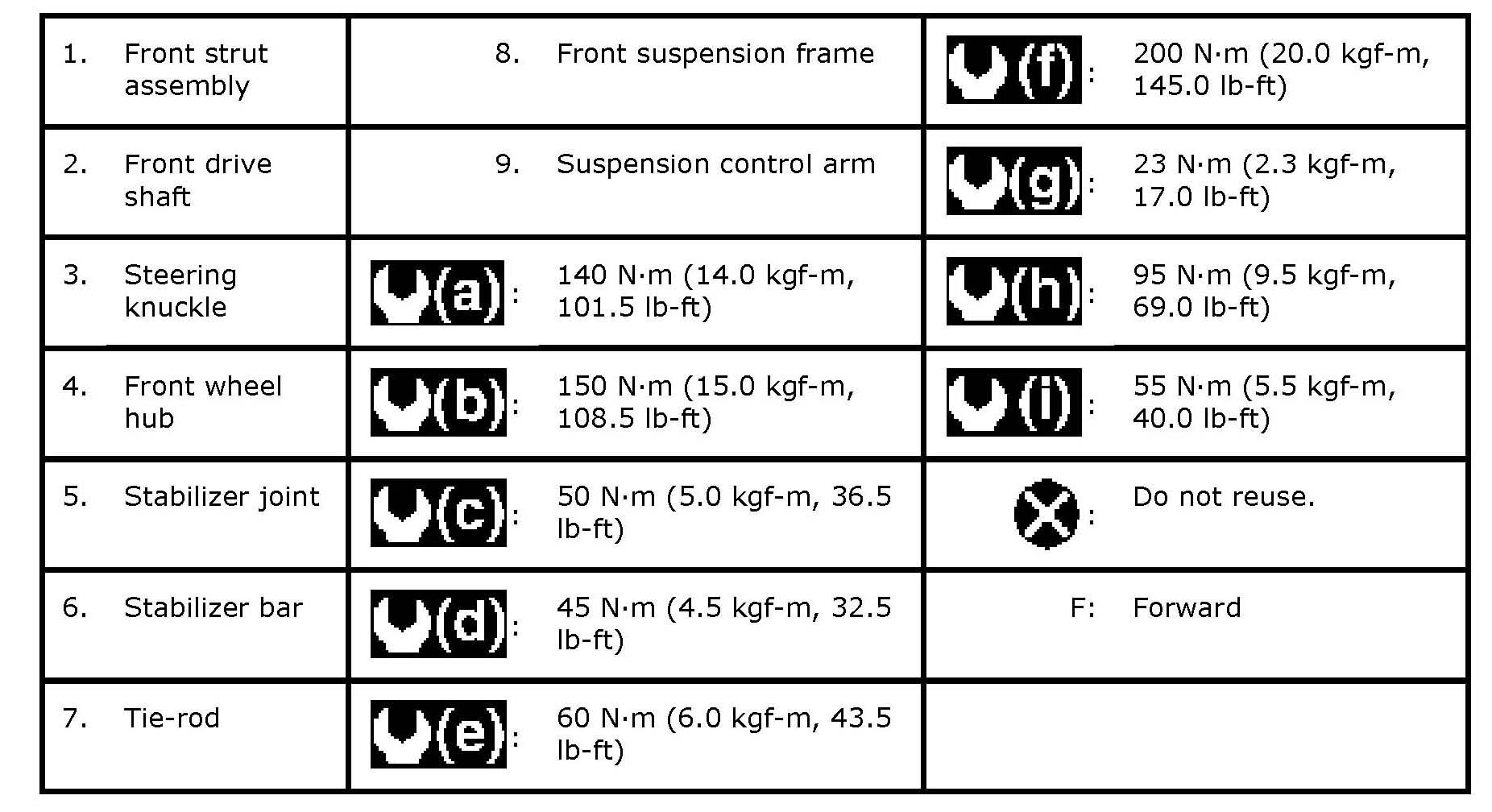

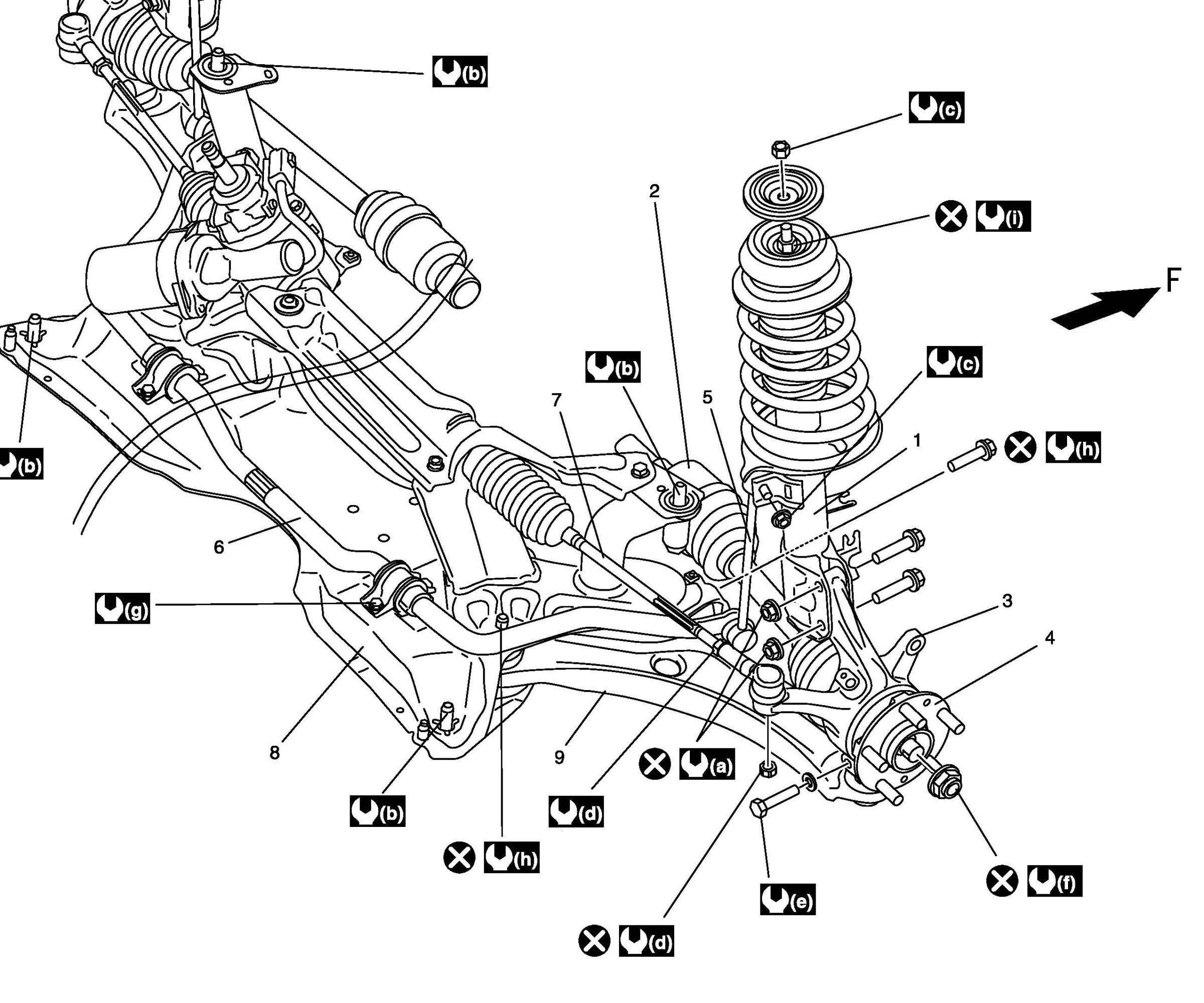

Front Suspension Construction
