Home >> Suzuki >> 2008 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Oil Pan >> Diagrams

Oil Pan: Diagrams

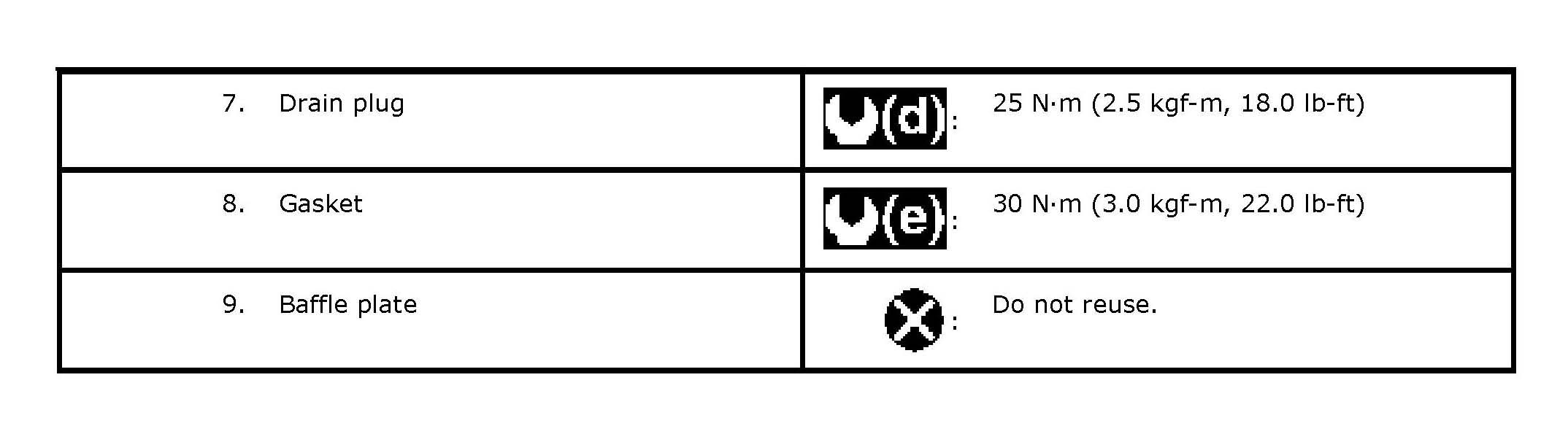

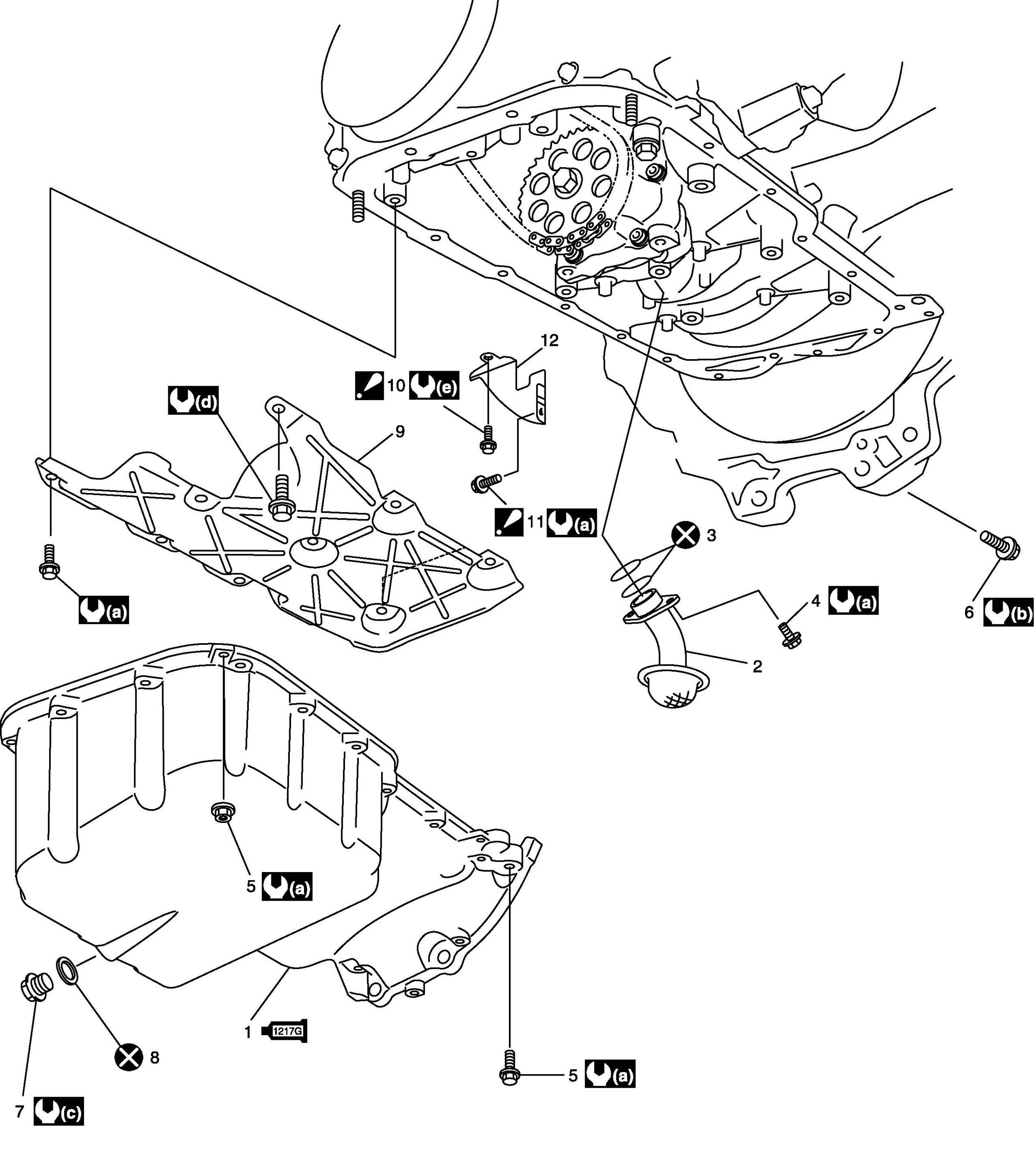

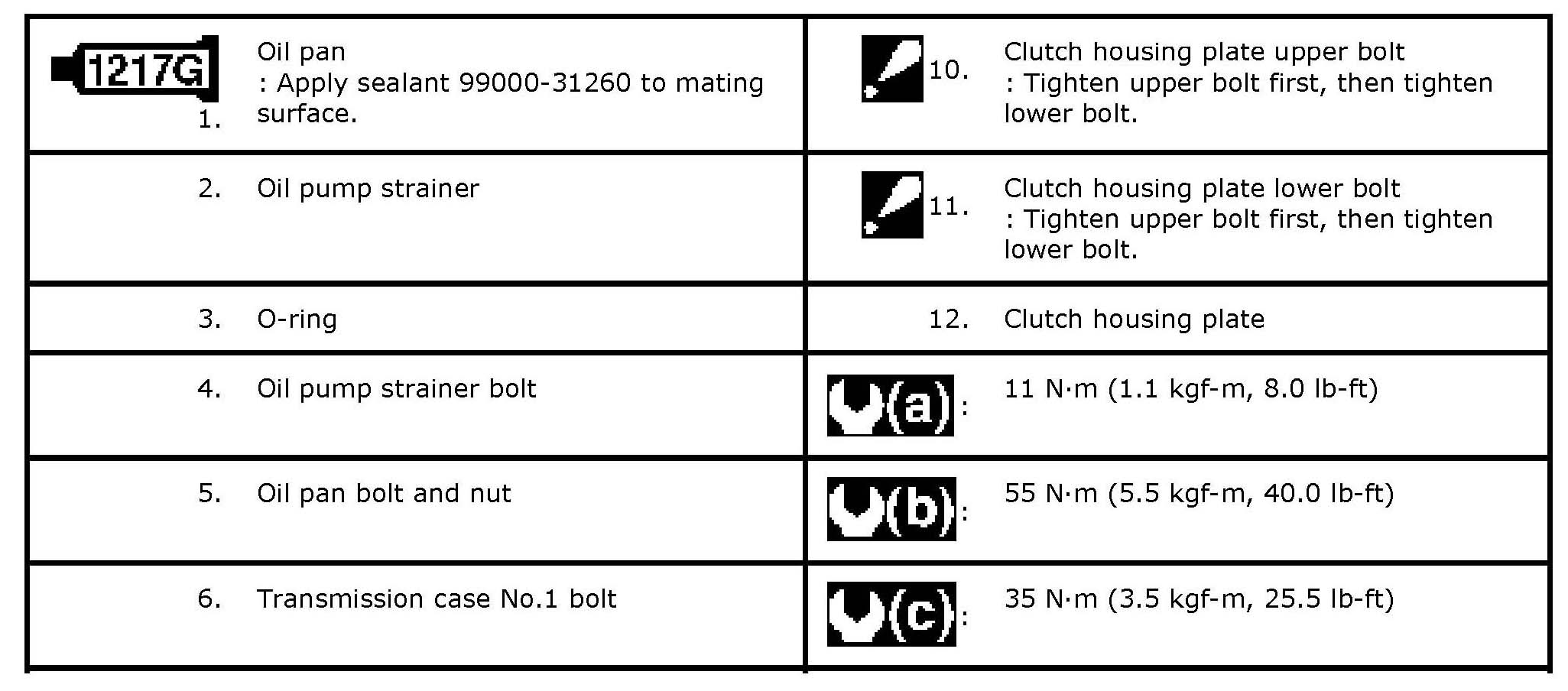

Oil Pan and Oil Pump Strainer Components
