Home >> Suzuki >> 2008 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams >> Electronic Stability Program >> Electronic Stability Program Schematic

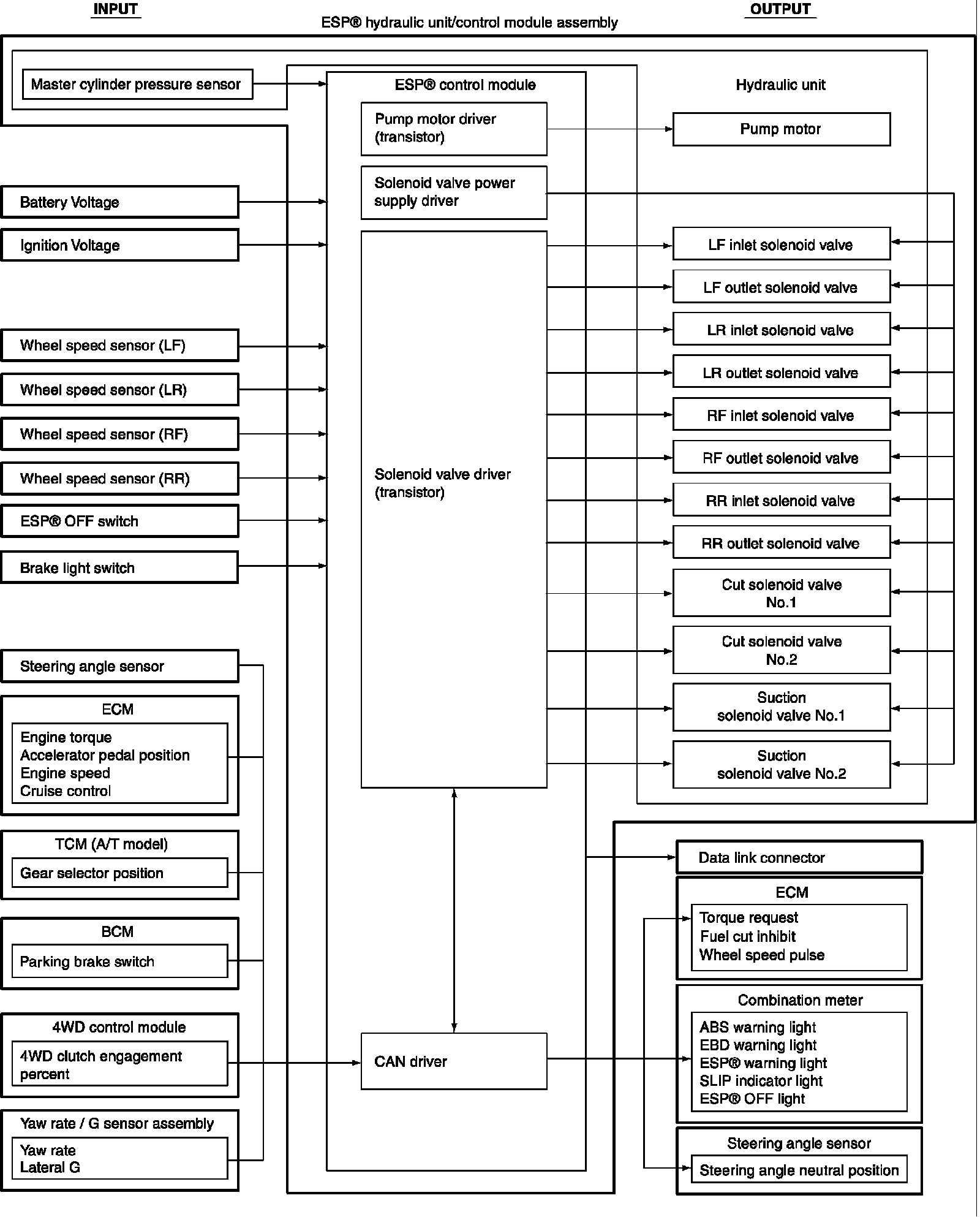

Electronic Stability Program Schematic

Electronic Stability Program Schematic:
