Power Steering Fluid Reservoir: Service and Repair

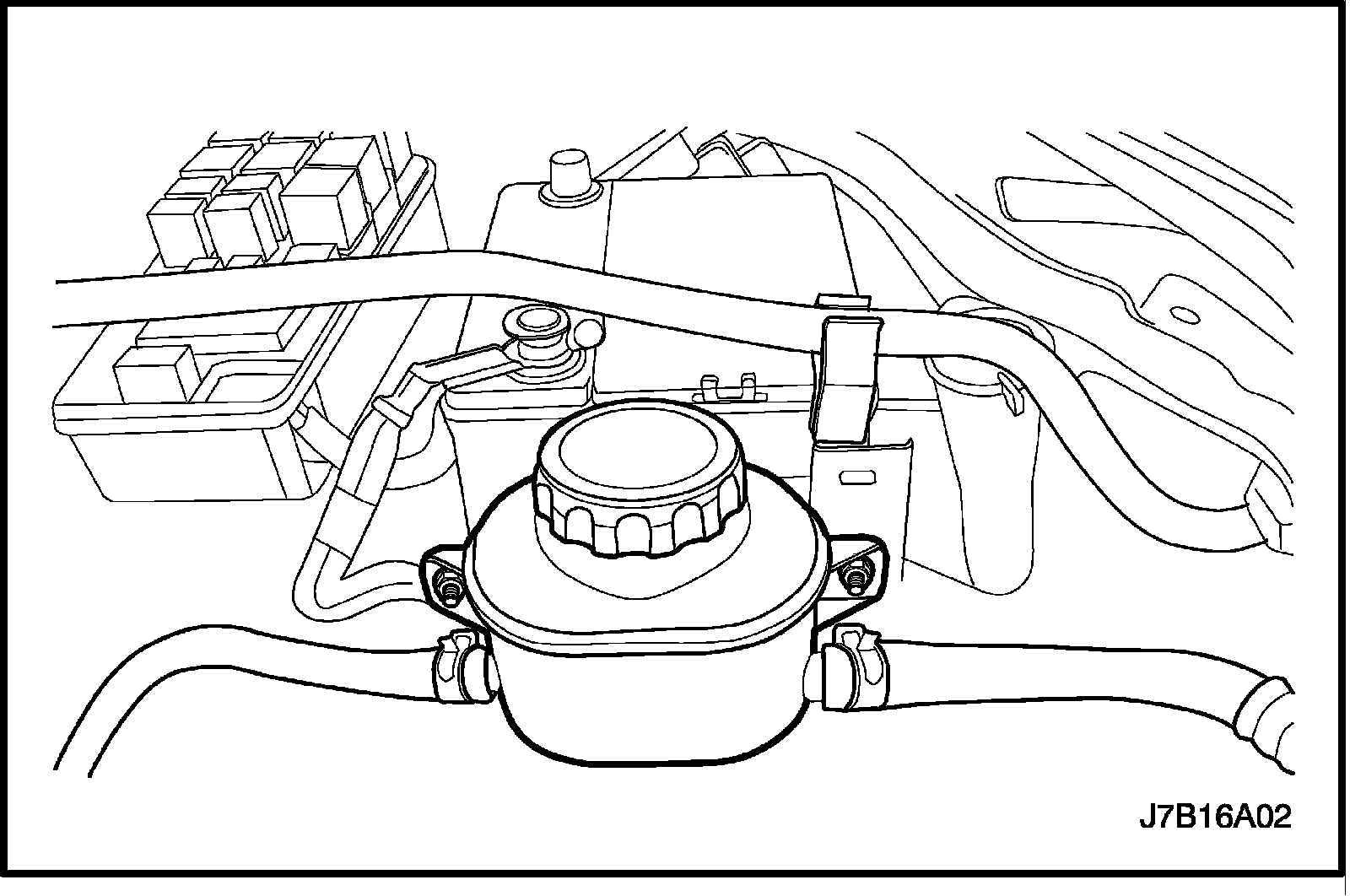

Fluid Reservoir Removal and InstallationRemoval
1. Siphon the power steering fluid from the fluid reservoir.
2. Loosen the hose clamps and remove both hoses from the fluid reservoir.
3. Remove the fluid reservoir nuts.
Installation
1. Attach the fluid reservoir to the fluid reservoir bracket.
2. Fix the fluid reservoir with the nuts.
Tighten:
Tighten the fluid reservoir nuts to 10 Nm
3. Connect both hoses to the fluid reservoir and secure the hose clamps.
4. Fill the fluid reservoir with power steering fluid.
5. Inspect for leaks. If there are leaks, correct the cause of the leaks and bleed the system.
