Suzuki
>>
2008
>>
Forenza L4-2.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

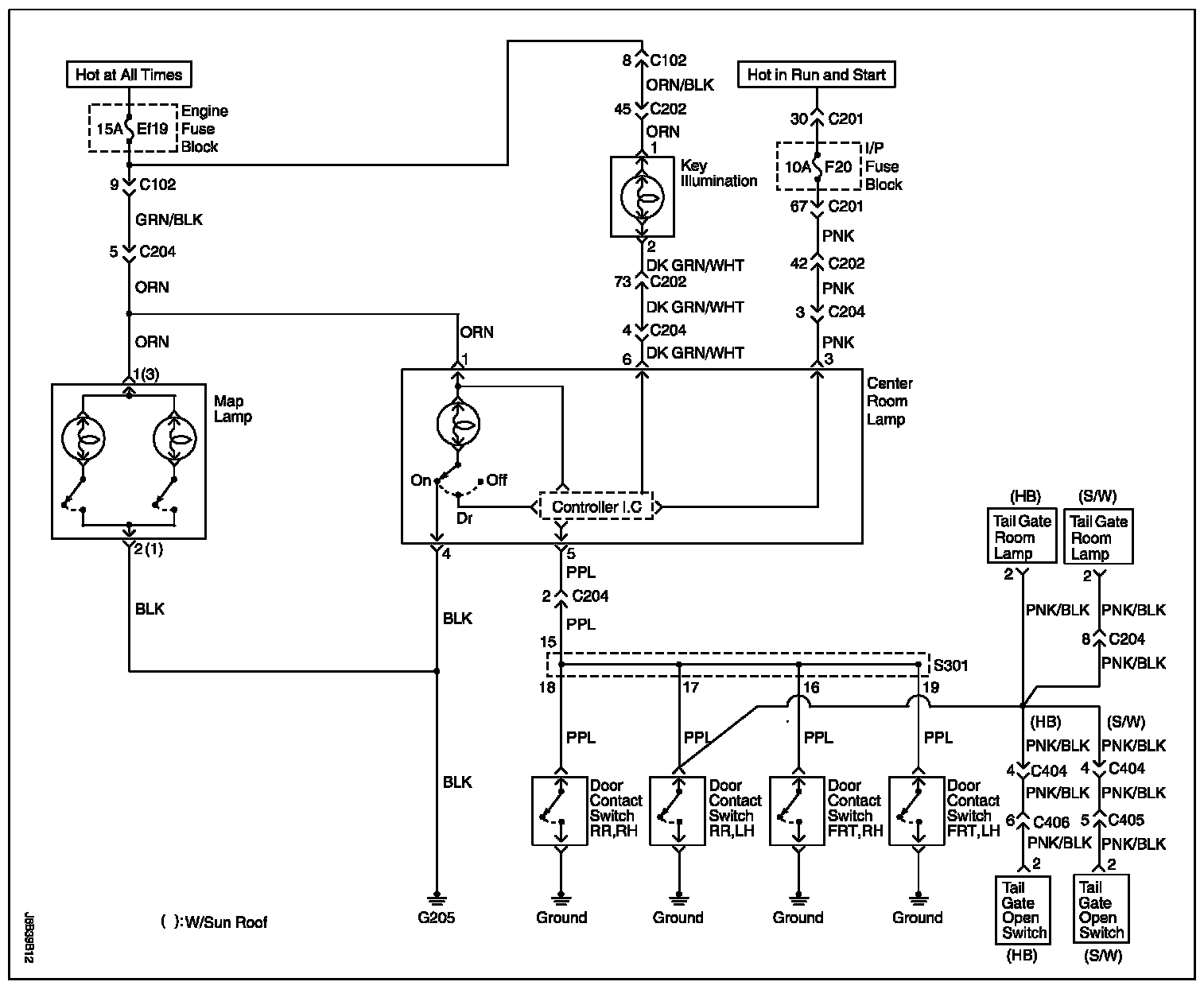

Interior Courtesy And Luggage Compartment Lamp Circuit Diagram:
