Headlamp
>>
Headlamps, DRL Circuit Diagram
Headlamps, DRL Circuit Diagram

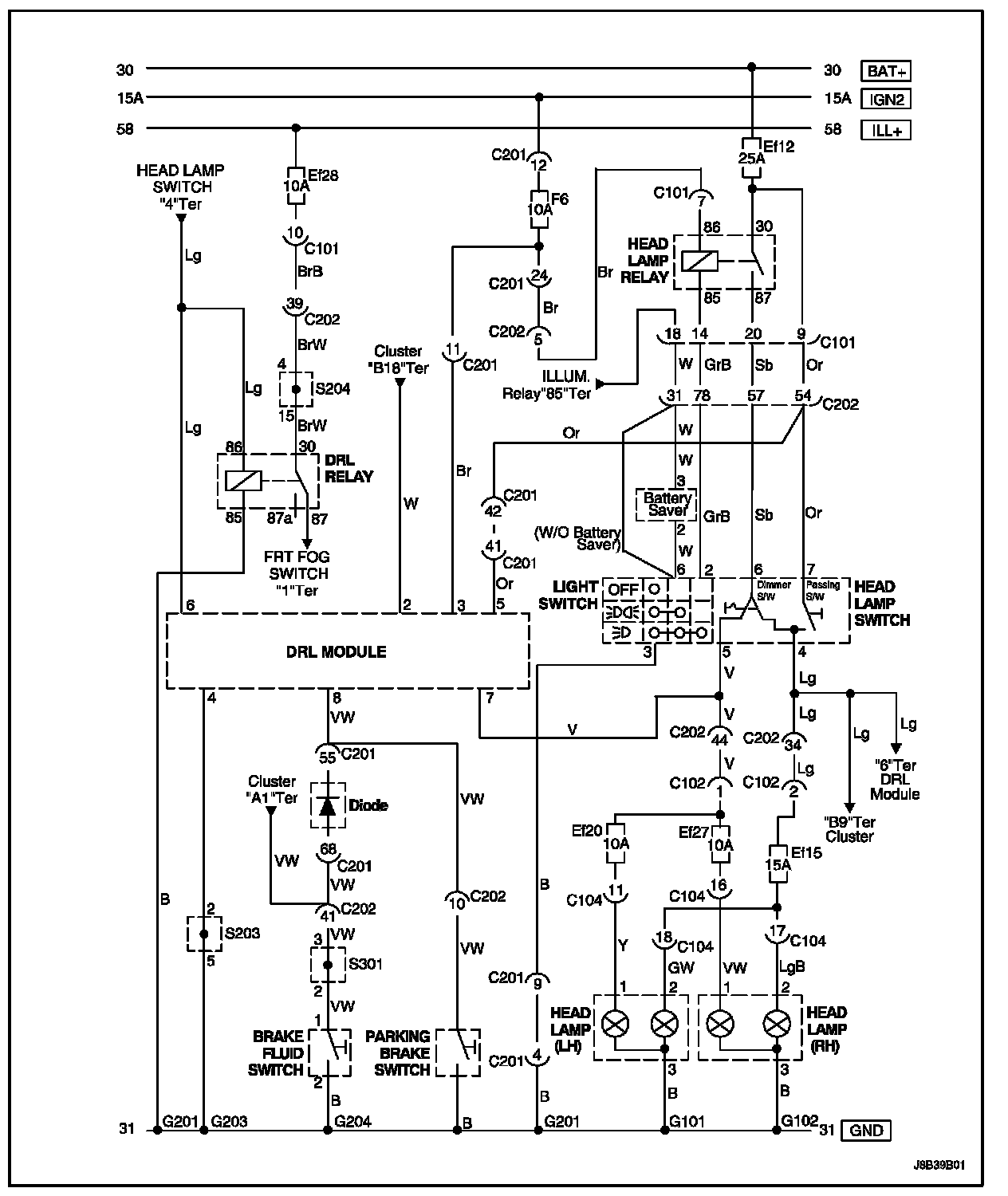

Headlamps, DRL Circuit Diagram:
