Bearing and Race Installation Diagram
Bearing and Race Installation Diagram

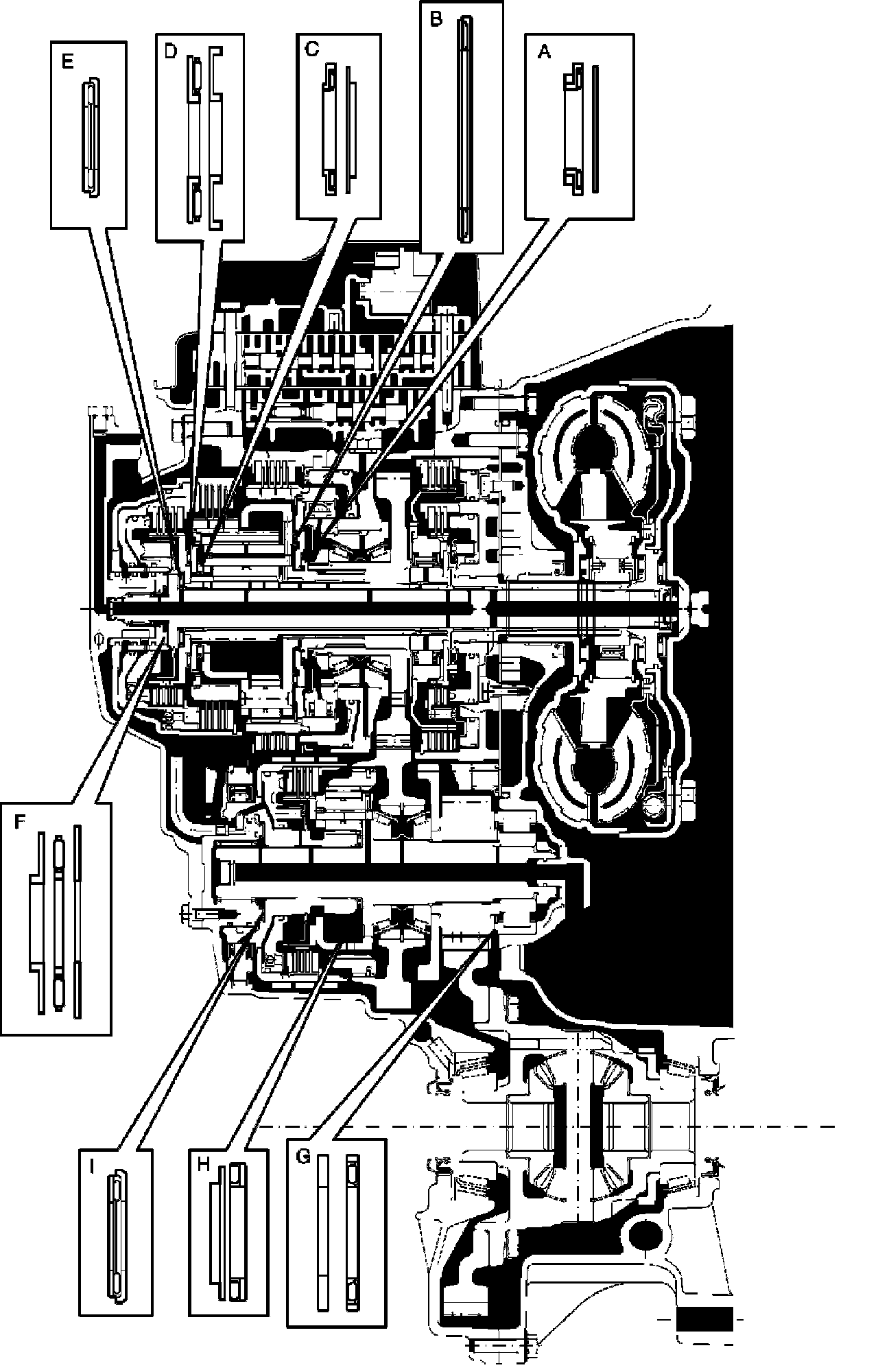

Bearing and Race Installation Diagram:

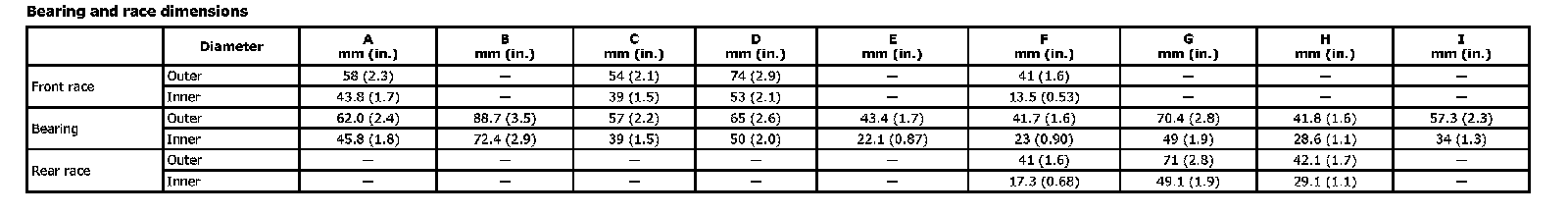

Bearing and race dimensions:
