Home >> Suzuki >> 2007 >> Aerio L4-2.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> System Schematic

System Schematic

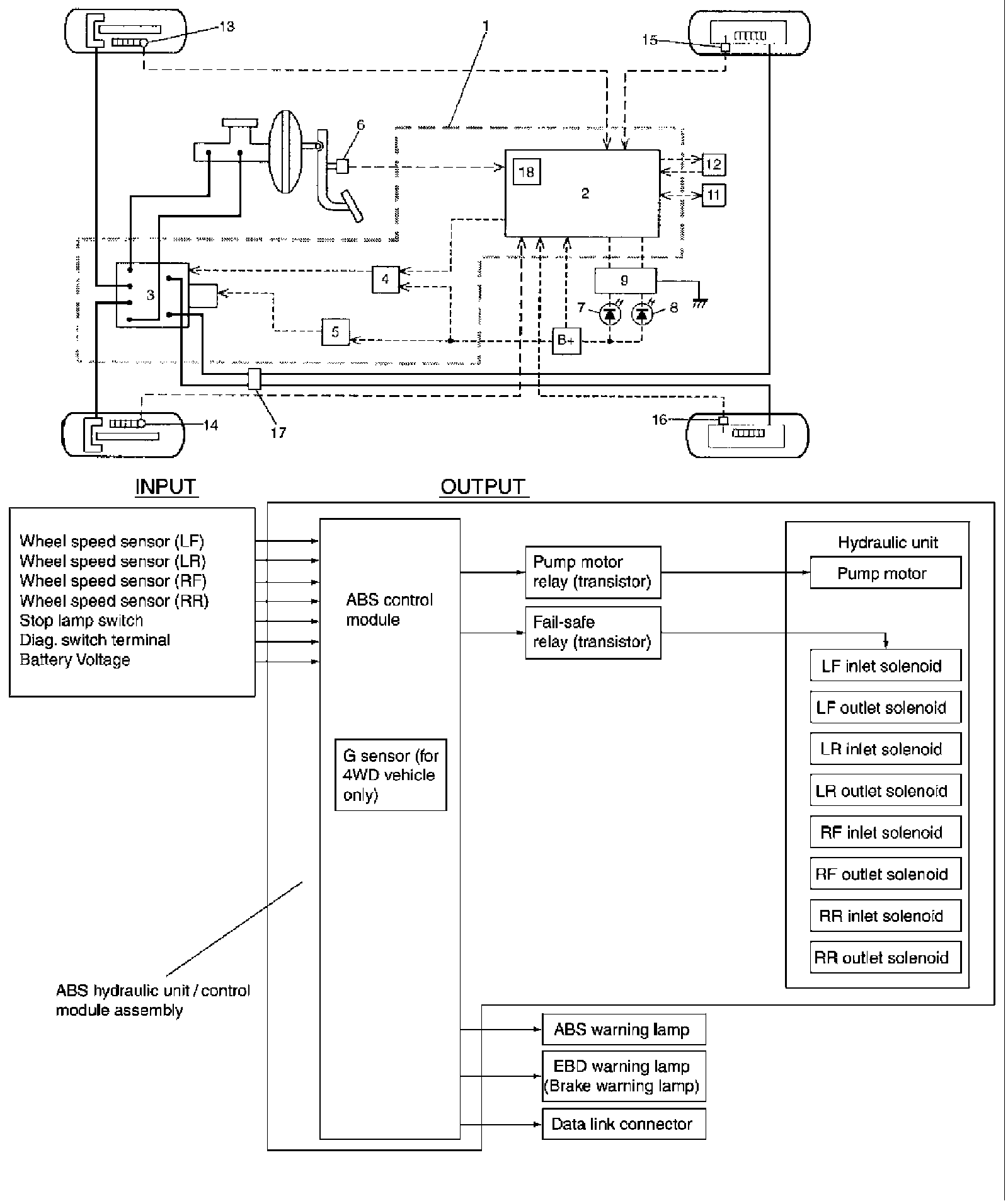

ABS Schematic

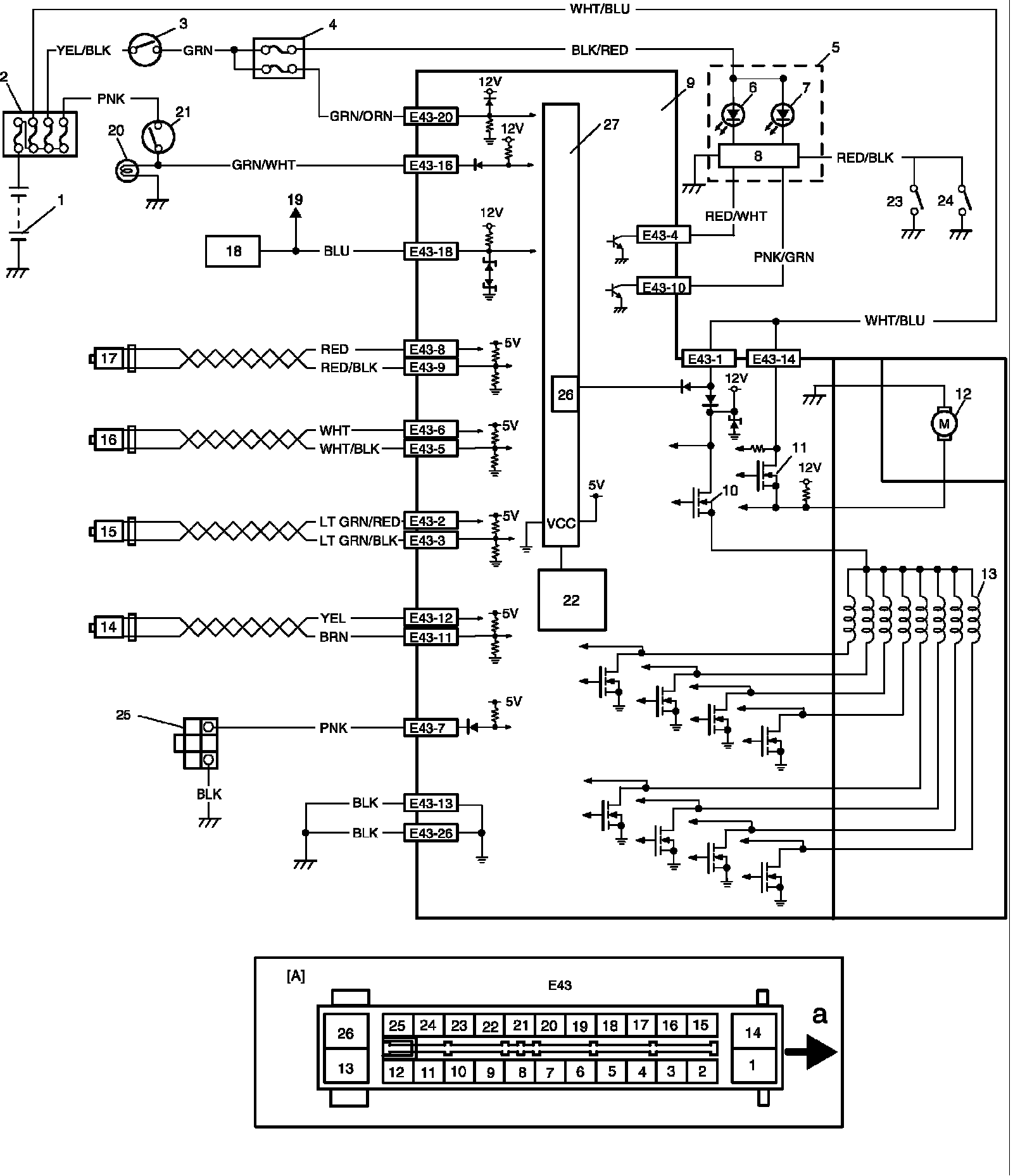

ABS Wiring Circuit Diagram
