Shift Lever Diagnosis

Shift Lever Diagnosis

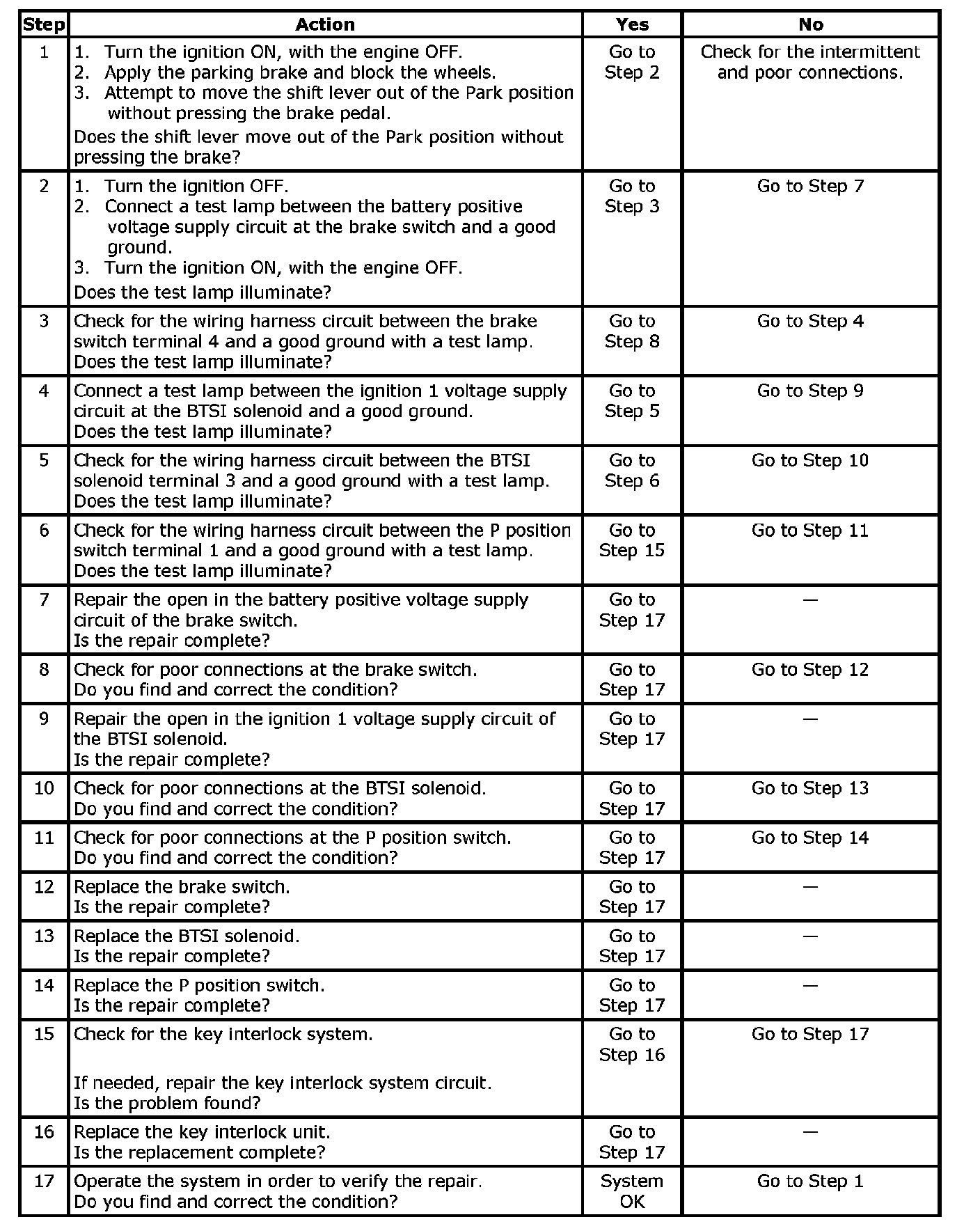

Shift Lever Does Not Move with Brake Pedal Depressed

Steps 1-11:





Shift Lever Can Be Moved without Brake Pedal Depressed

Steps 1-17:
