Power Steering Fluid Reservoir: Service and Repair

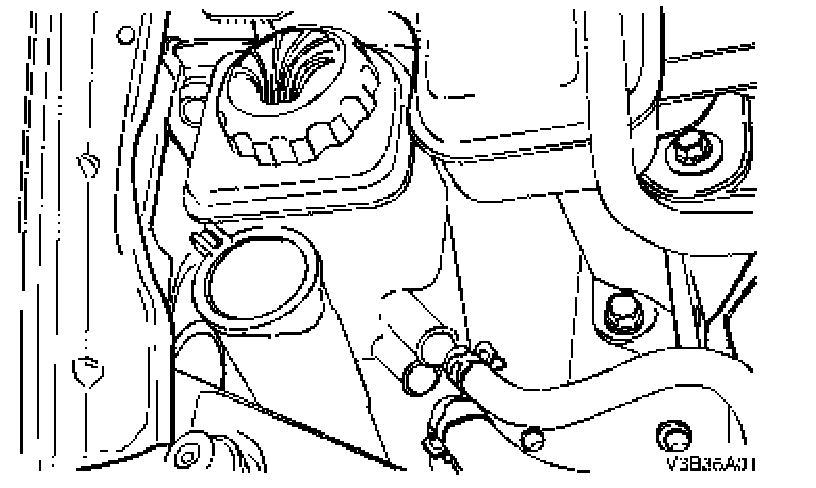

Fluid Reservoir

Removal
1. Siphon the power steering fluid from the fluid reservoir.
2. Loosen the hose clamps and remove both hoses from the fluid reservoir.





3. Remove the fluid reservoir by sliding it off the fluid reservoir bracket.

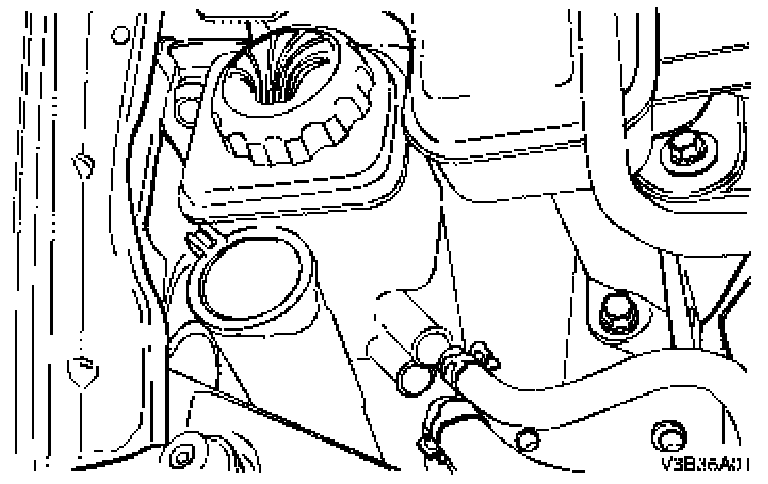

Installation
1. Attach the fluid reservoir to the fluid reservoir bracket.
2. Connect both hoses to the fluid reservoir and secure the hose clamps.
3. Fill the fluid reservoir with power steering fluid.

CAUTION: When adding fluid or making a complete change, always use DEXRON-II or III power steering fluid. Failure to use the proper fluid will cause hose and seal damage and fluid leaks.





4. Inspect for leaks. If there are leaks, correct the cause of the leaks and bleed the system.
