Seat Belt: Service and Repair

3-Point ELR Rear Seat Belt (LH, CENTER, RH) Removal and Installation

Removal
1. Remove the back shelf panel. Refer to Deck Lid Sill Plate Cover Removal.

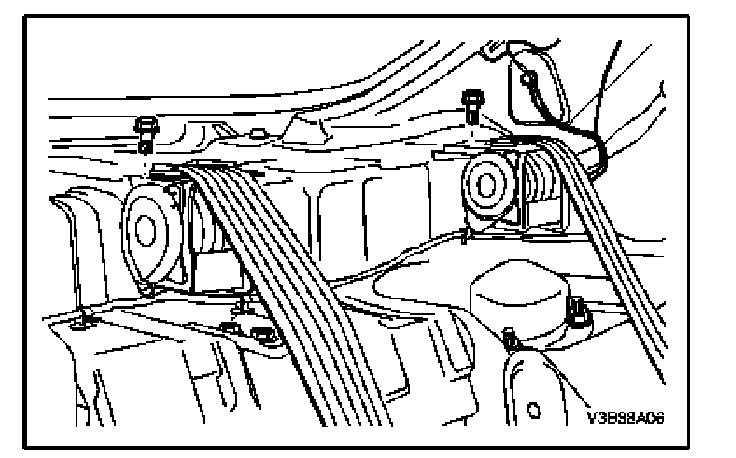

2. Remove the rear seat belt retractor securing bolts (LH, CENTER, RH) from the back panel.

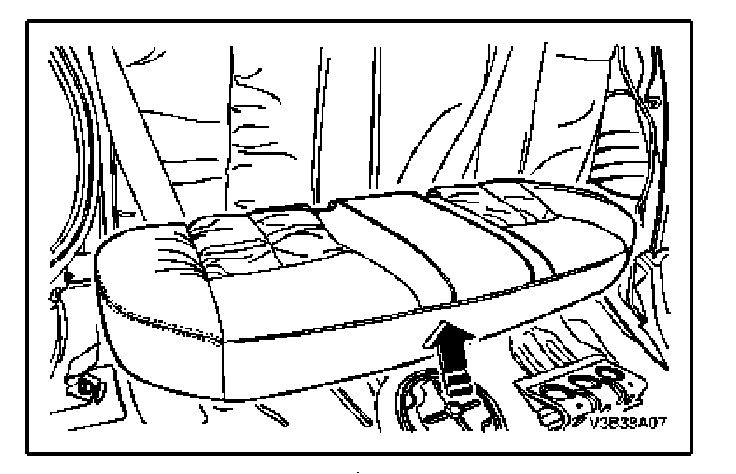

3. Remove the rear seat cushion.

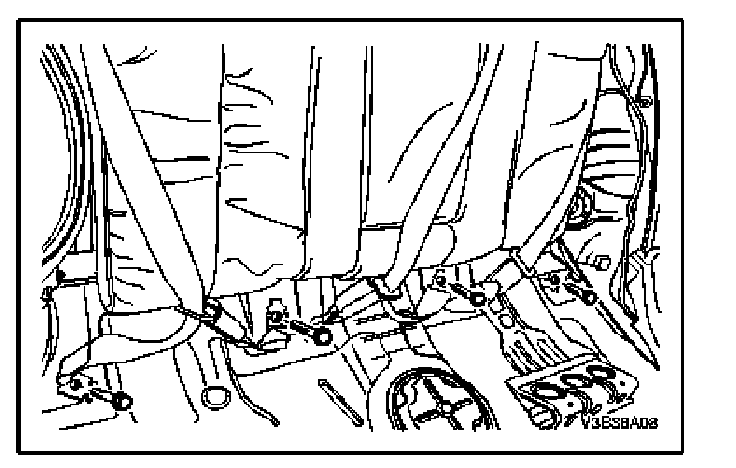

4. Remove the floor seat belt anchor bolts.




5. Remove the seat belt.

Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.




1. Install the floor seat belt anchor bolts.

Tighten: Tighten the floor seat belt anchor bolt to 38 N.m (28 lb-ft).




2. Install the rear seat belt retractor bolts (LH, CENTER, RH) on the back panel.

Tighten: Tighten the rear seat belt retractor bolts to 38 N.m (28 lb-ft).

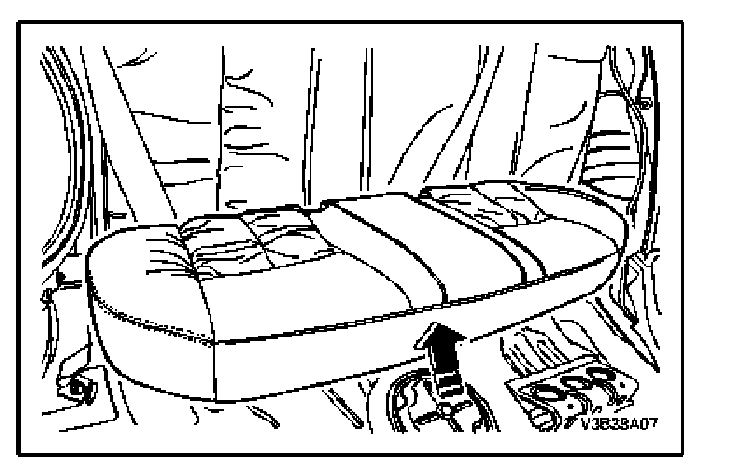

3. Install the rear seat cushion.




4. Install the back shelf panel. Refer to Deck Lid Sill Plate Cover Installation.
