Home >> Suzuki >> 2006 >> Verona L6-2.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

Fuse Block: Locations

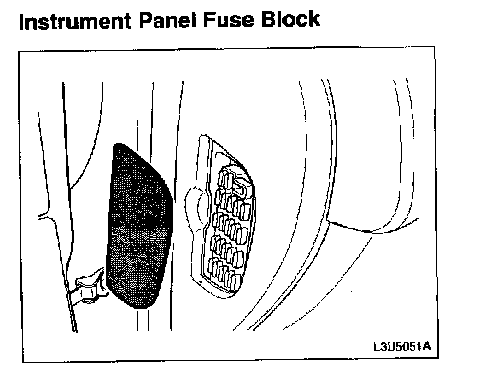

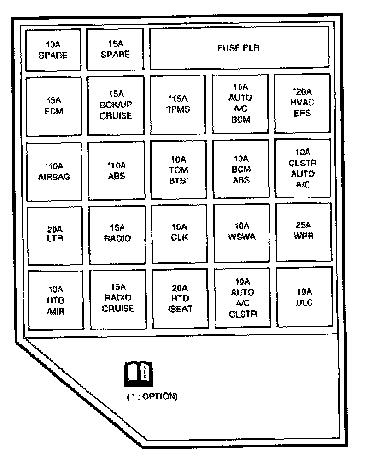

Instrument Panel Fuse Block

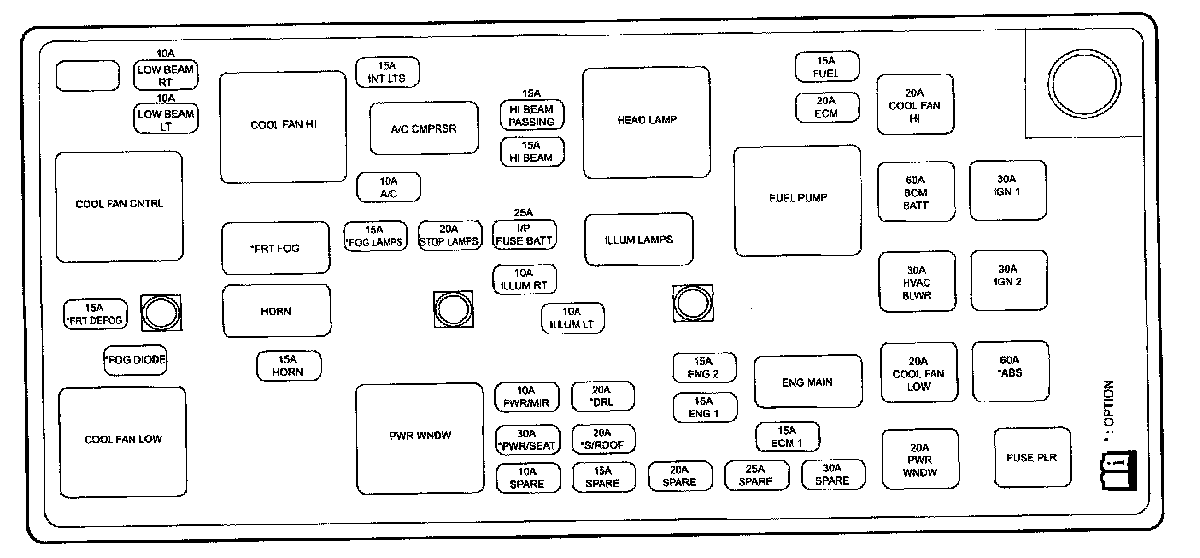

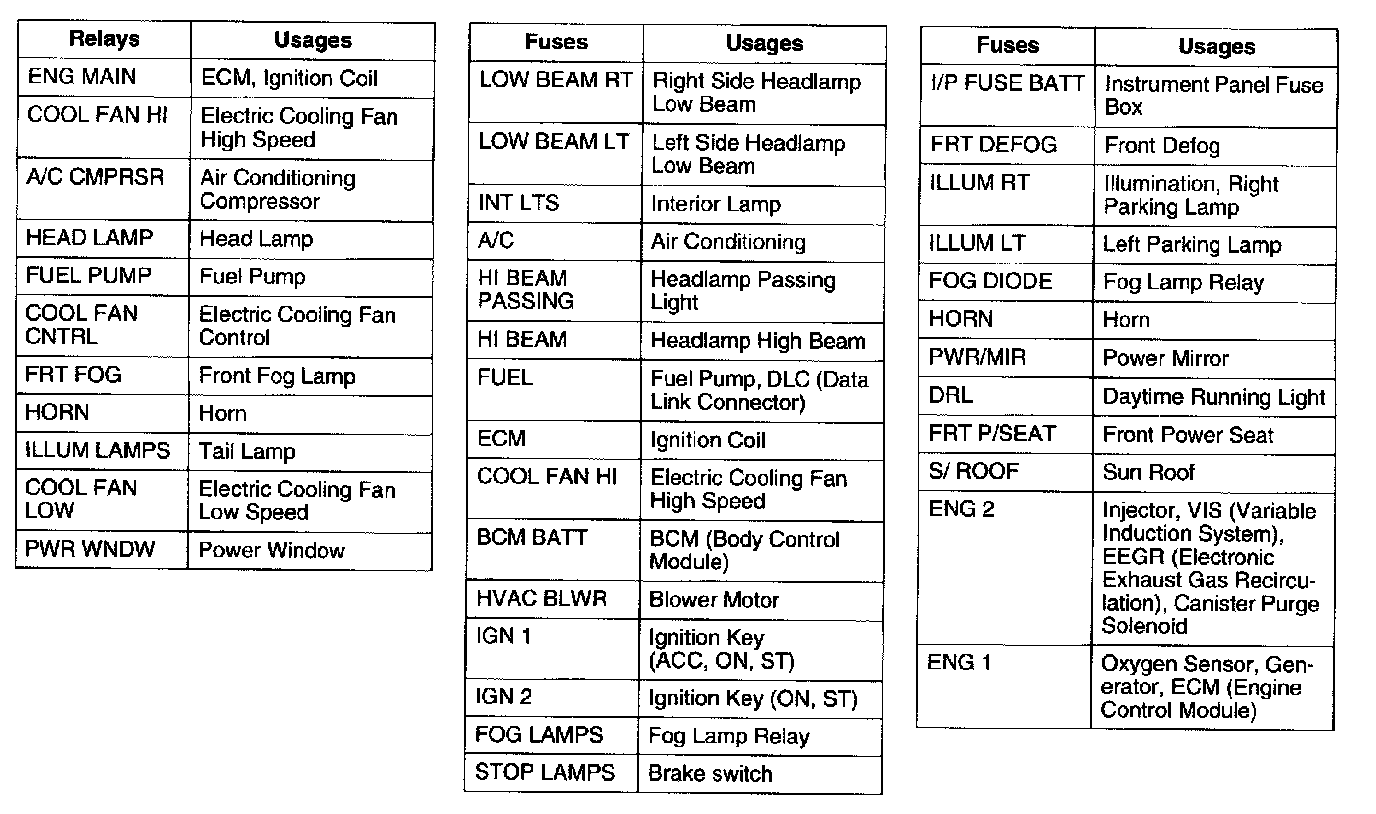

Engine Compartment Fuse Block
