Home
>>
Suzuki
>>
2006
>>
Verona L6-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Power Door Lock Actuator
>>
Wiring Diagram
Wiring Diagram

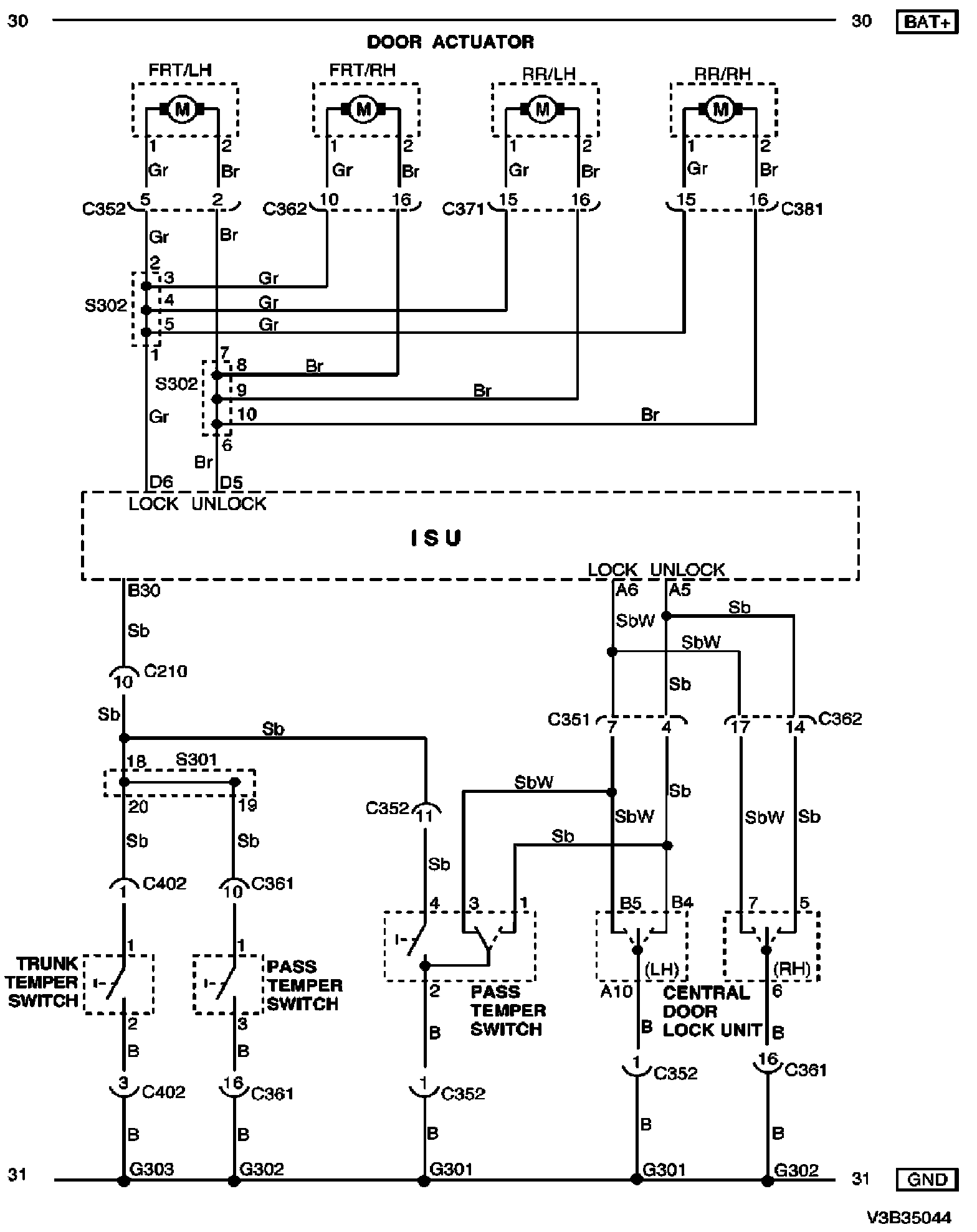

Door Actuator and Central Door Lock Unit Circuit:
