Brake Warning Indicator
>>

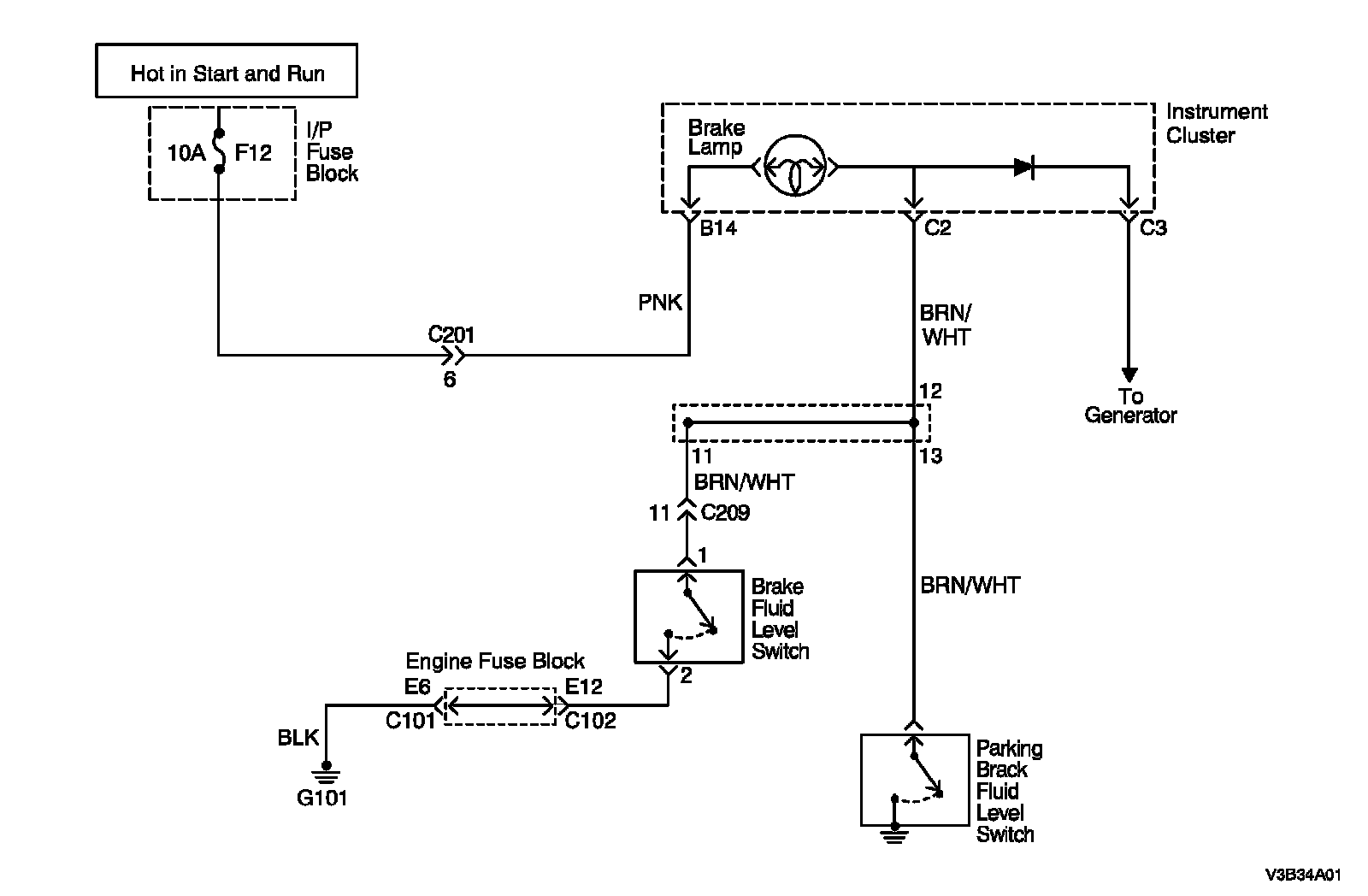

Brake Lamp Warning Circuit Diagram
Brake Lamp Warning Circuit Diagram
Brake Lamp Warning Circuit Diagram:
