Power Supply, Ground, PNP Switch, Brake Switch and Solenoid Valve Circuit
Power Supply, Ground, PNP Switch, Brake Switch and Solenoid Valve Circuit:

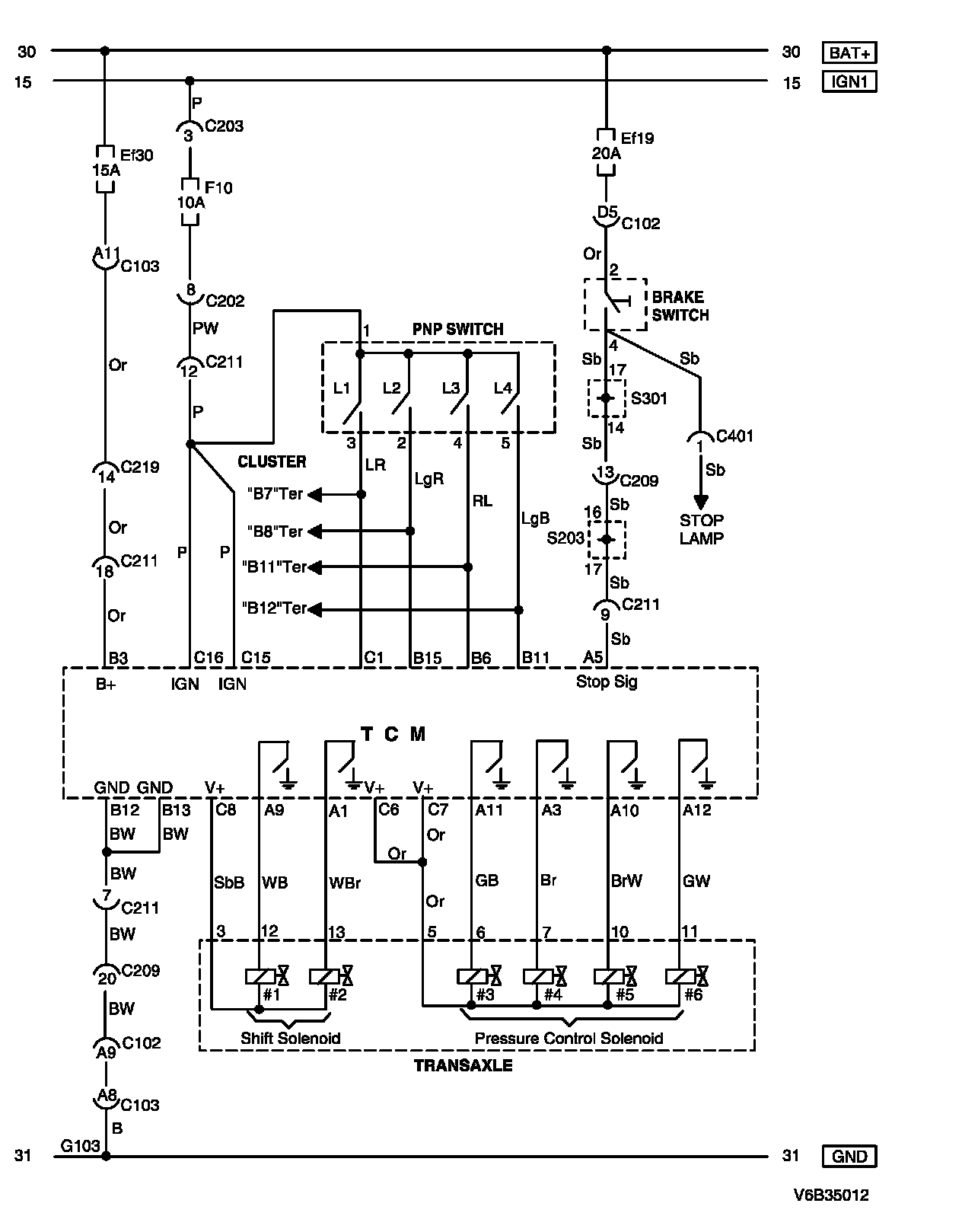

WIRING DIAGRAM
C102 - G103:

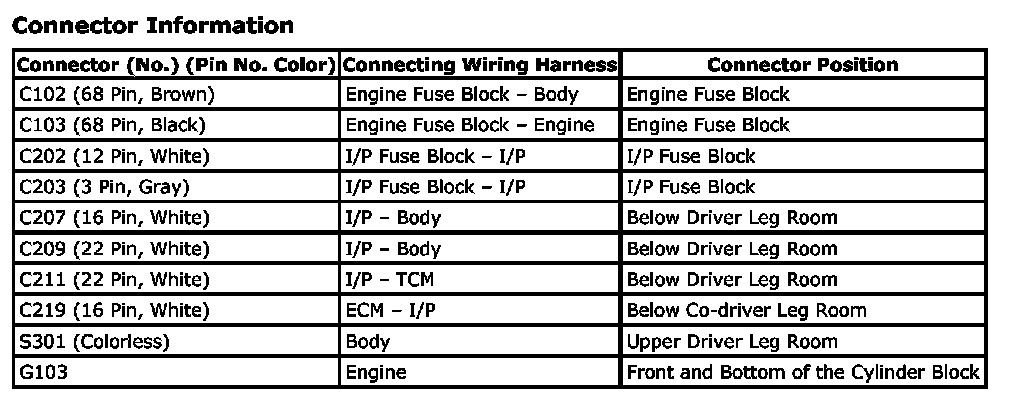

CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:

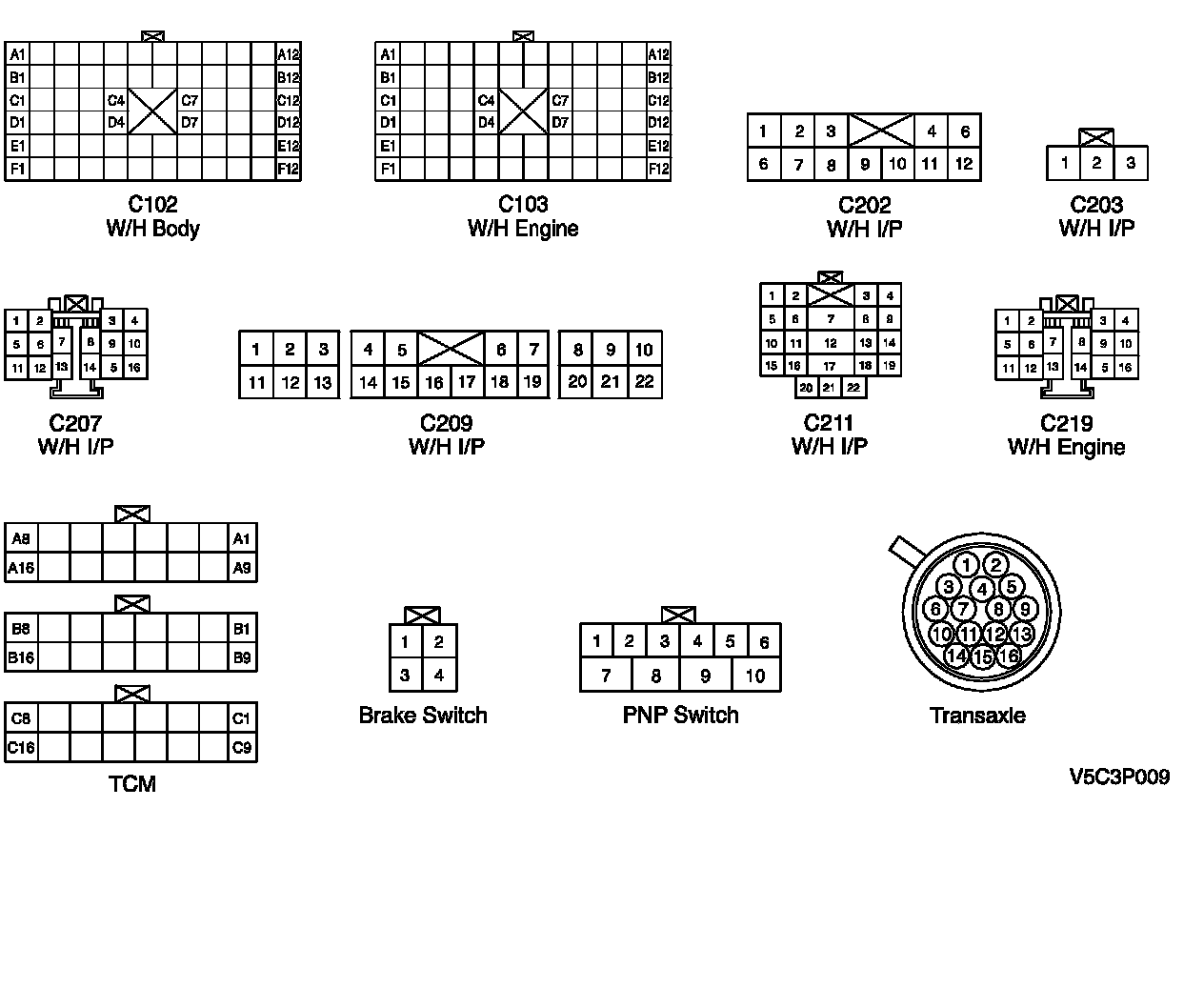

CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

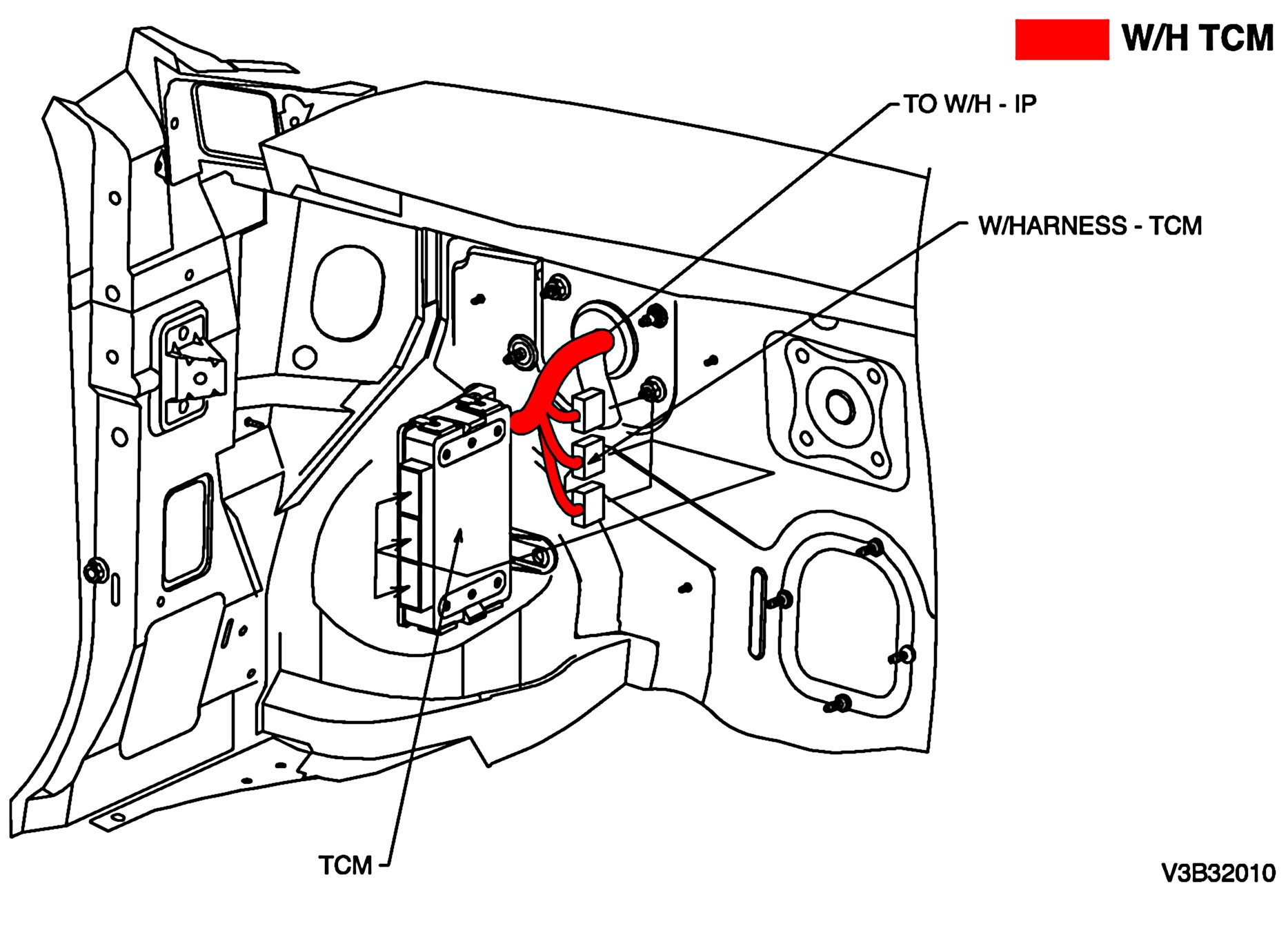

W/H TCM:

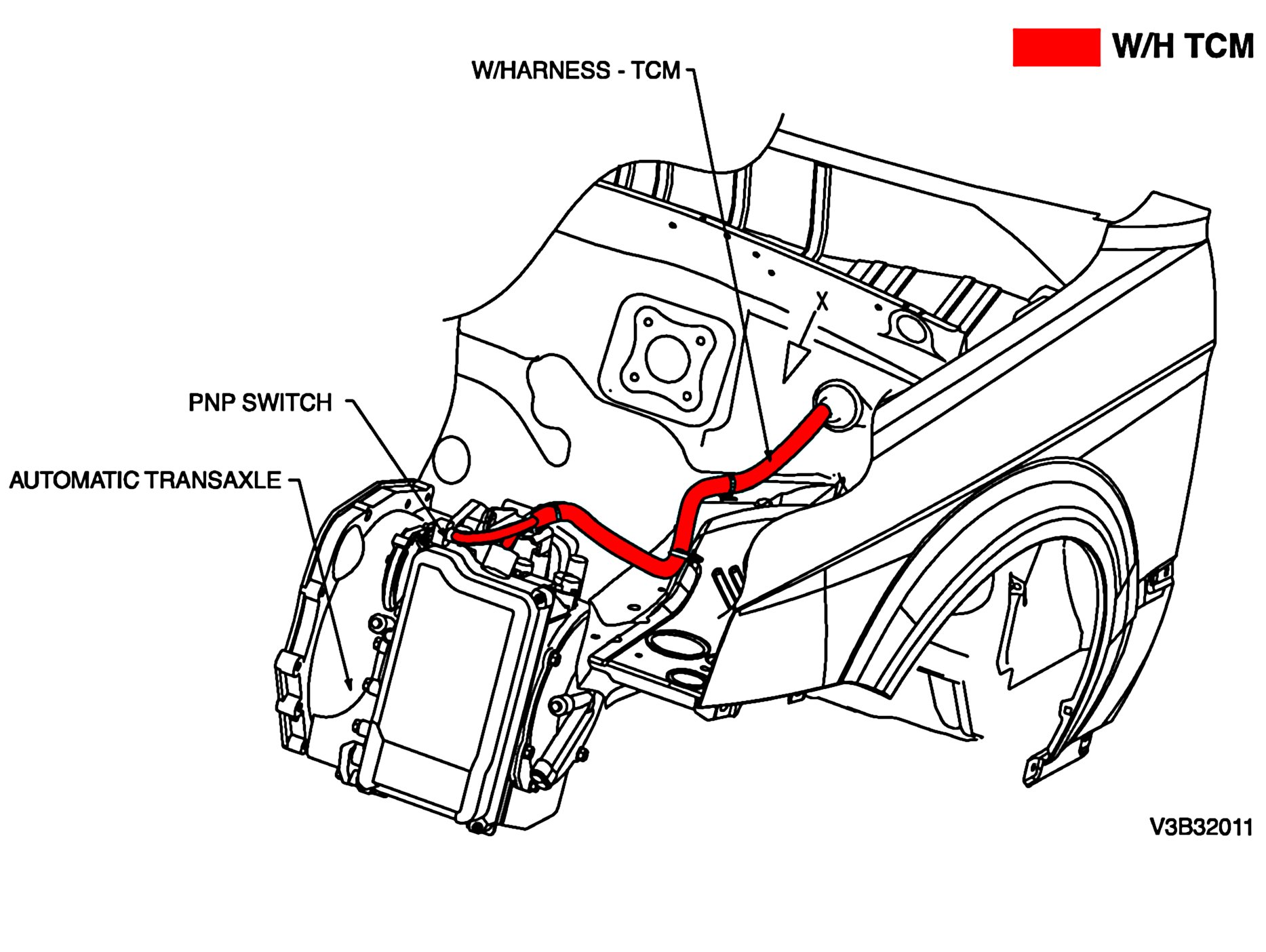

W/H TCM:
POSITION OF CONNECTORS AND GROUNDS

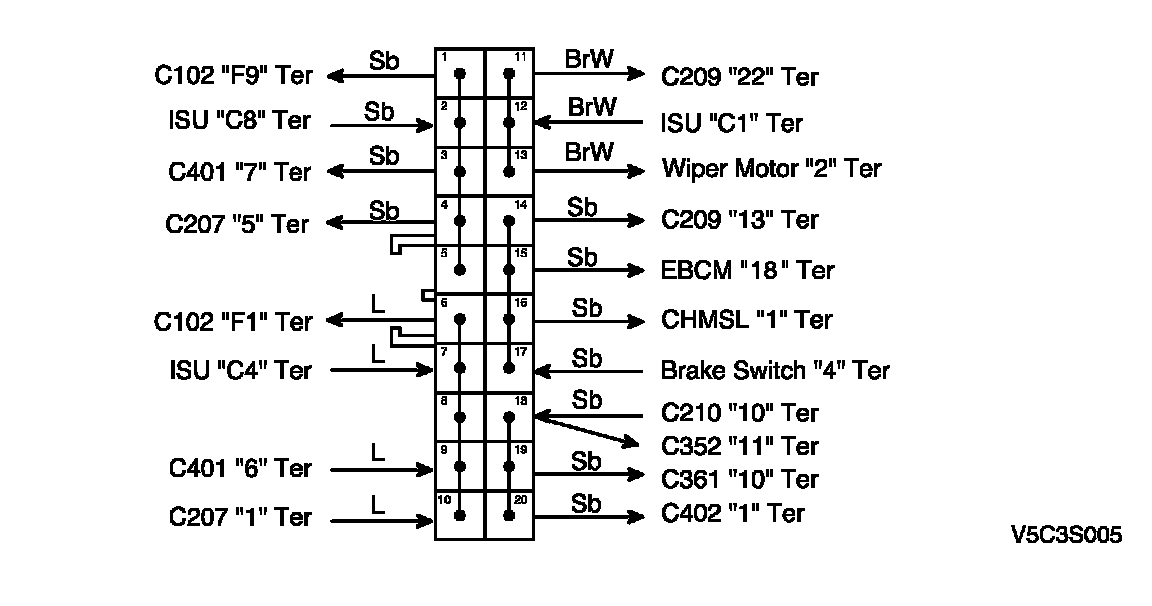

S301 (COLORLESS):
SPLICE PACK
