Home
>>
Suzuki
>>
2006
>>
Verona L6-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
>>

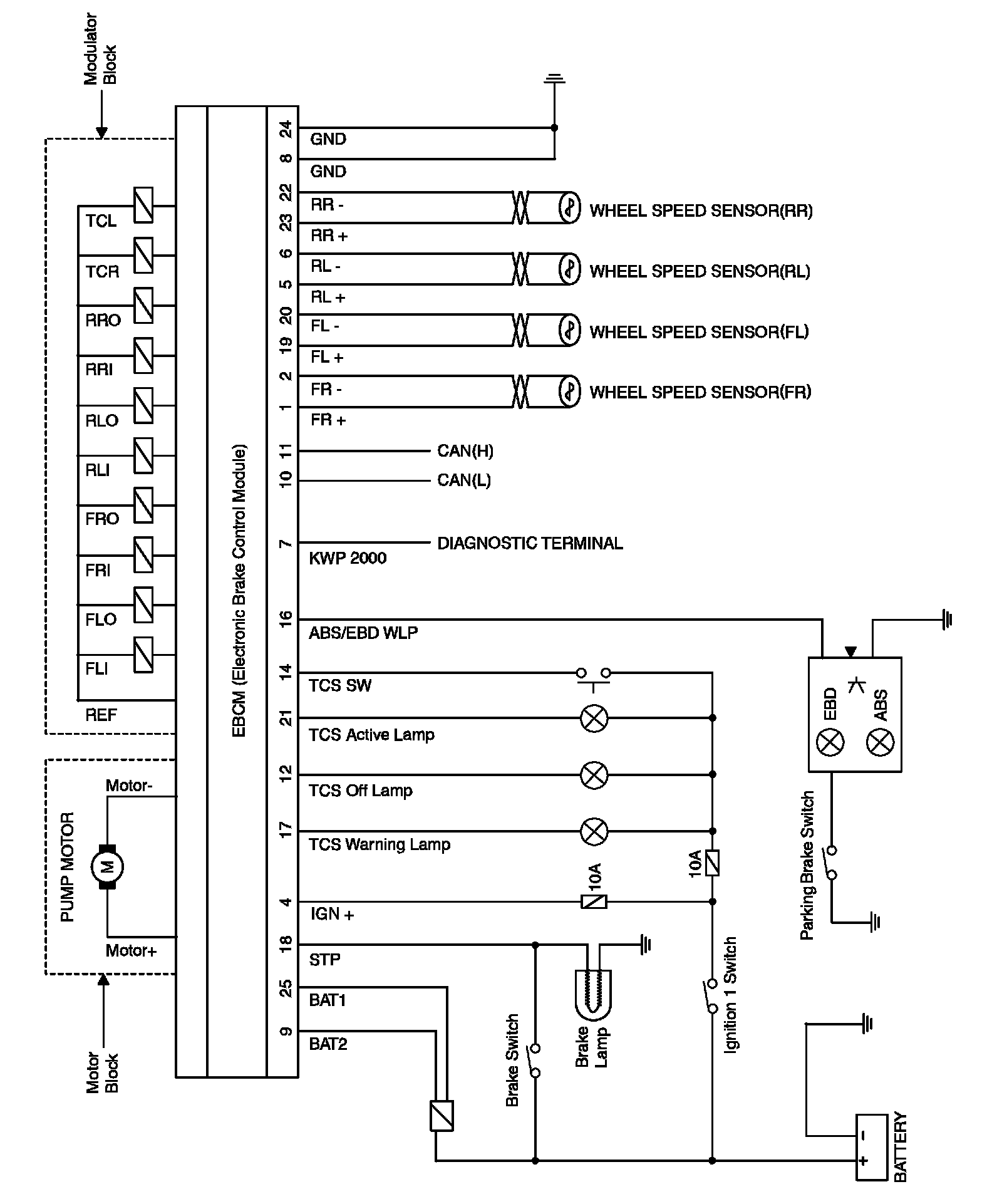

Electrical Schematic Diagram - ABS With FTCS (Full Function TCS)
Electrical Schematic Diagram - ABS With FTCS (Full Function TCS)
