Drink Holders: Service and Repair

Cupholder Removal and Installation

Cupholder Removal




1. Remove the screw and the cupholder.

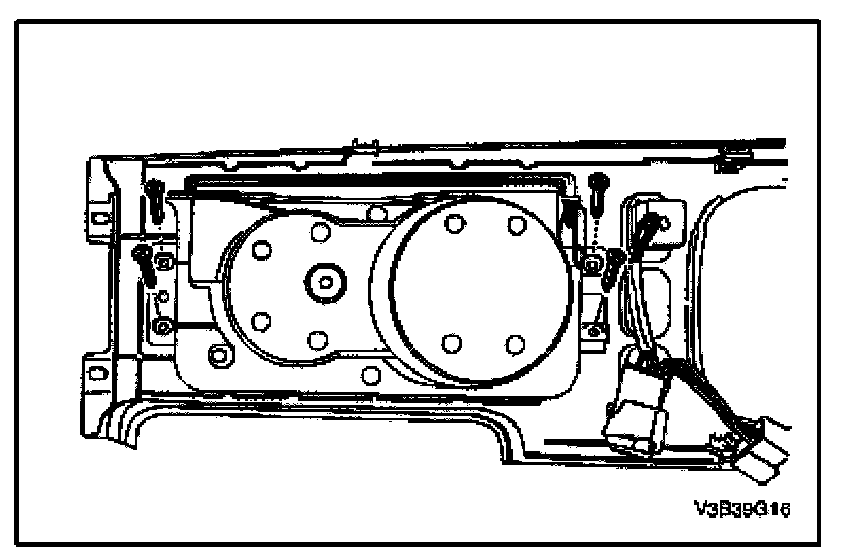

Cupholder Installation




1. Install the cupholder with the screw.

Tighten:
Tighten the cupholder screw to 2.5 N.m (22 lb.in).
