Lower Side Moulding / Trim: Service and Repair

Rocker Panel Molding Removal and Installation

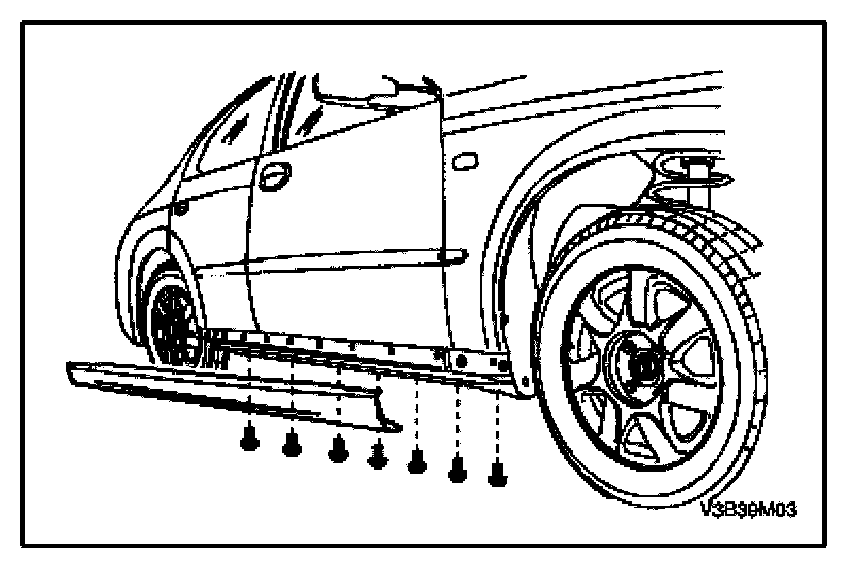

Rocker Panel Molding Removal

1. Remove the front mud guards. Refer to Mud Guards Removal.




2. Remove the screws and the rocker panel molding.

Rocker Panel Molding Installation

1. Install the rocker panel molding with the screws.




2. Install the front mud guards. Refer to Mud Guards Installation.
