Hood Hinge: Service and Repair

Hood Hinges Removal and Installation

Hood Hinges Removal

1. Remove the hood. Refer to Hood Removal.
2. Remove the fender. Refer to Fender Removal.

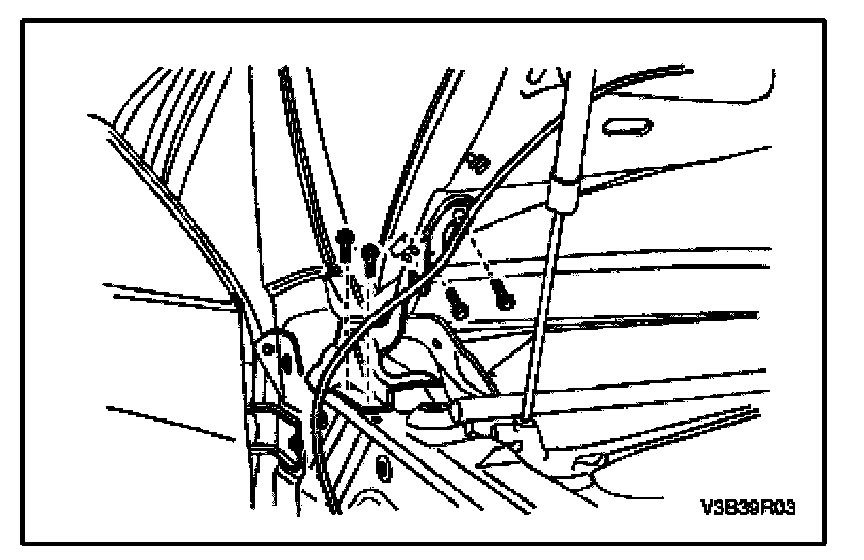

3. Remove the bolts and the hinge.

Hood Hinges Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

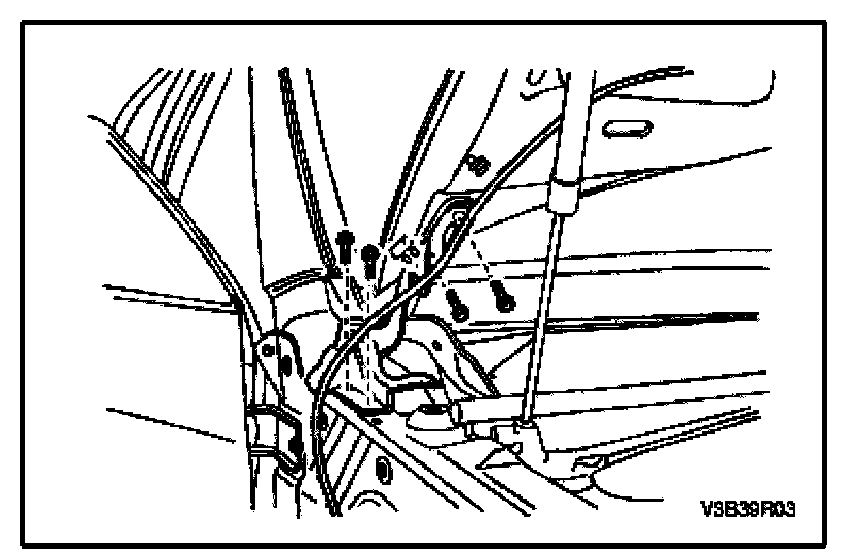

1. Install the hinge with the bolts.

Tighten:
Tighten the hinge bolts to 20 N.m (15 lb.ft).

2. Install the fender. Refer to Fender Installation.




3. Install the hood. Refer to Hood Installation.
