Front Door Panel: Service and Repair

Front Door Trim Panel Removal and Installation


Removal


1) Lower the front door window.

2) Pry off the inside door handle trim bezel.

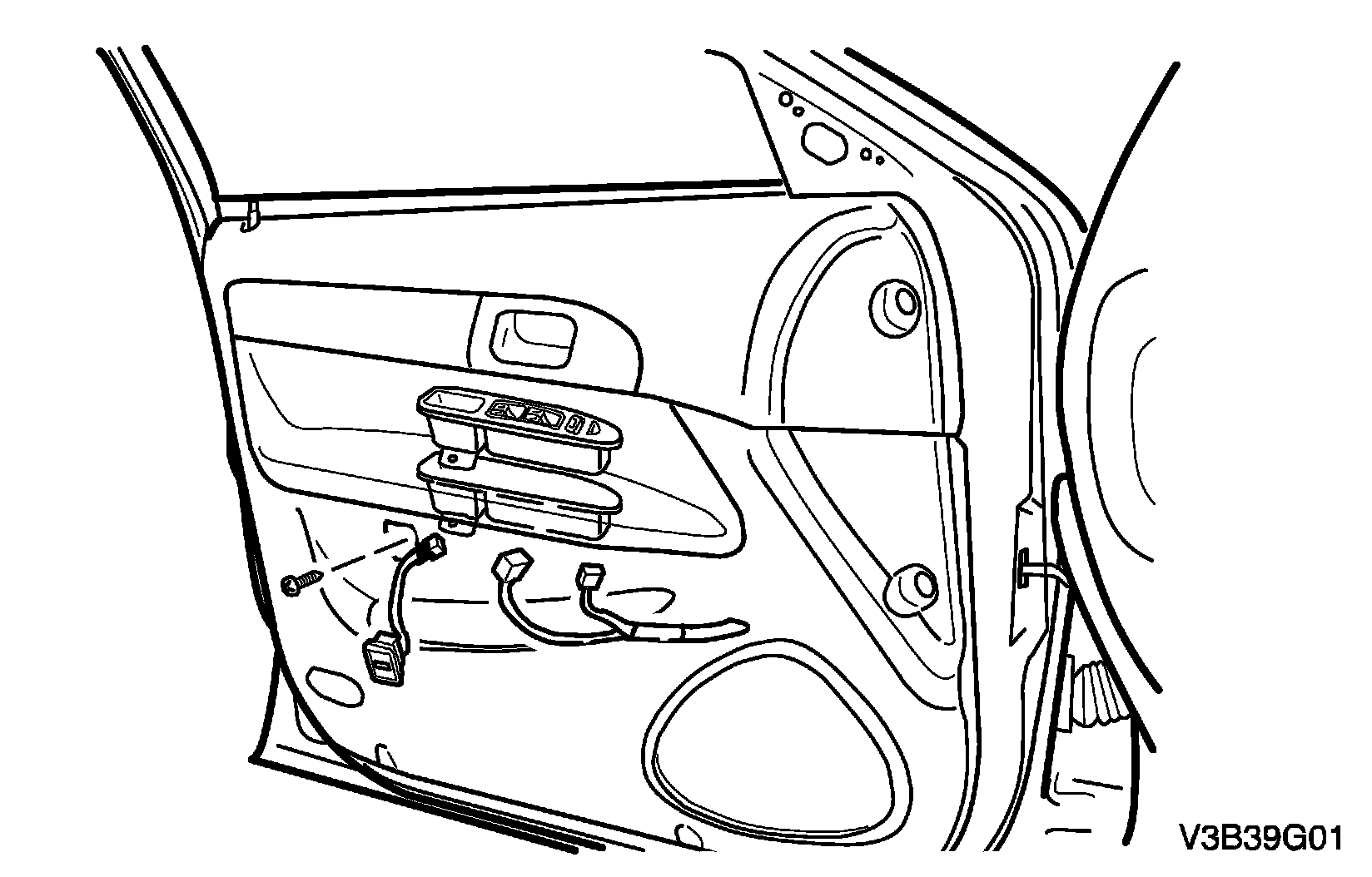

3) Remove the rear deck lid remote switch and the power window/mirror control switch.

4) Disconnect the electrical connectors.

�'�4:

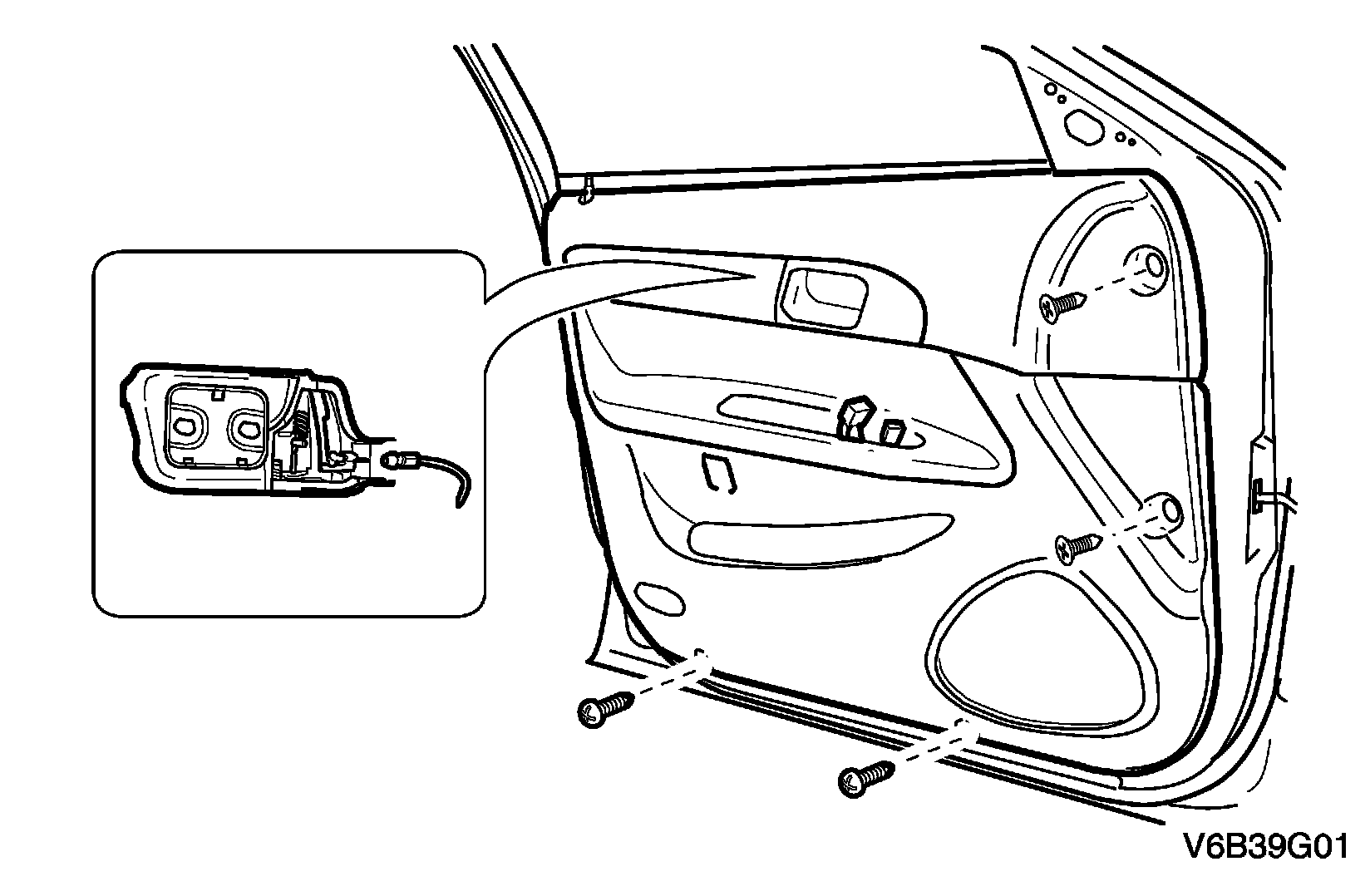

5) Remove the door trim panel screws.

6) Pry off the trim panel using the trim remover KM-475-B.

7) Remove the door step lamp.






Installation


1) Install the door step lamp.

2) Install the trim panel.

3) Connect the electrical connectors.

4) Install the rear deck lid remote switch and the power window/mirror control switch.

�s�4:

5) Install the door trim panel screws.

Tighten: Tighten the door trim panel screws to 2.5 N-m (22 lb-in.)

6) Install the inside door handle trim bezel.

7) Raise the front window.

C��4:
