Radio/Stereo: Service and Repair

Stereo Cassette AM/FM Radio Removal and Installation

Stereo Cassette AM/FM Radio Removal

1. Disconnect the negative battery cable.
2. Disconnect the negative battery cable.

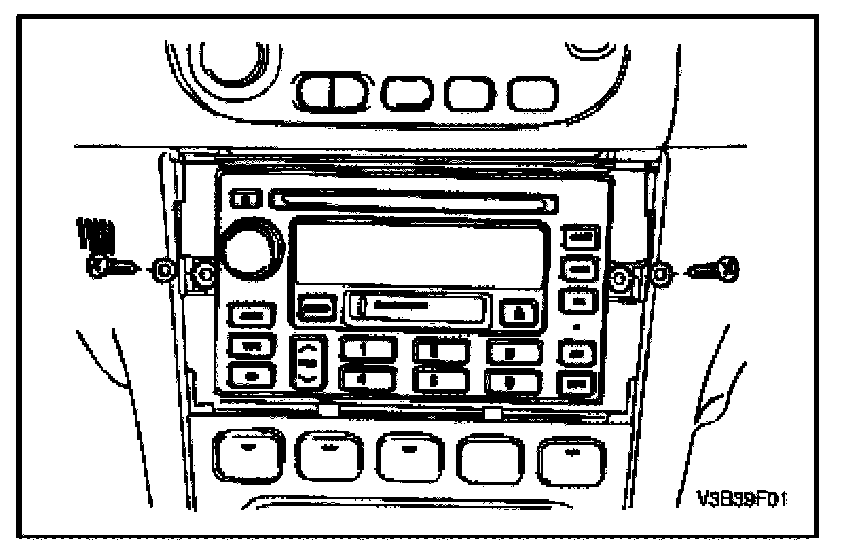

3. Remove the screws and the audio system.




4. Disconnect the audio system electrical connectors.

Stereo Cassette AM/FM Radio Installation

1. Connect the audio system electrical connectors.

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

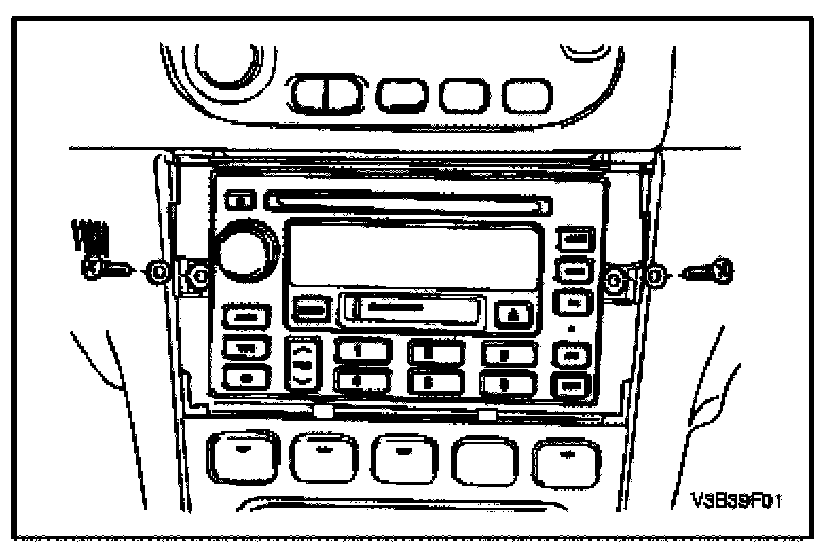

2. Install the audio system with the screws.

Tighten:
Tighten the audio system screws to 4 N.m (35 lb.in).

3. Install the audio system trim plate.




4. Connect the negative battery cable.
