Power Windows Circuit Wiring Diagram

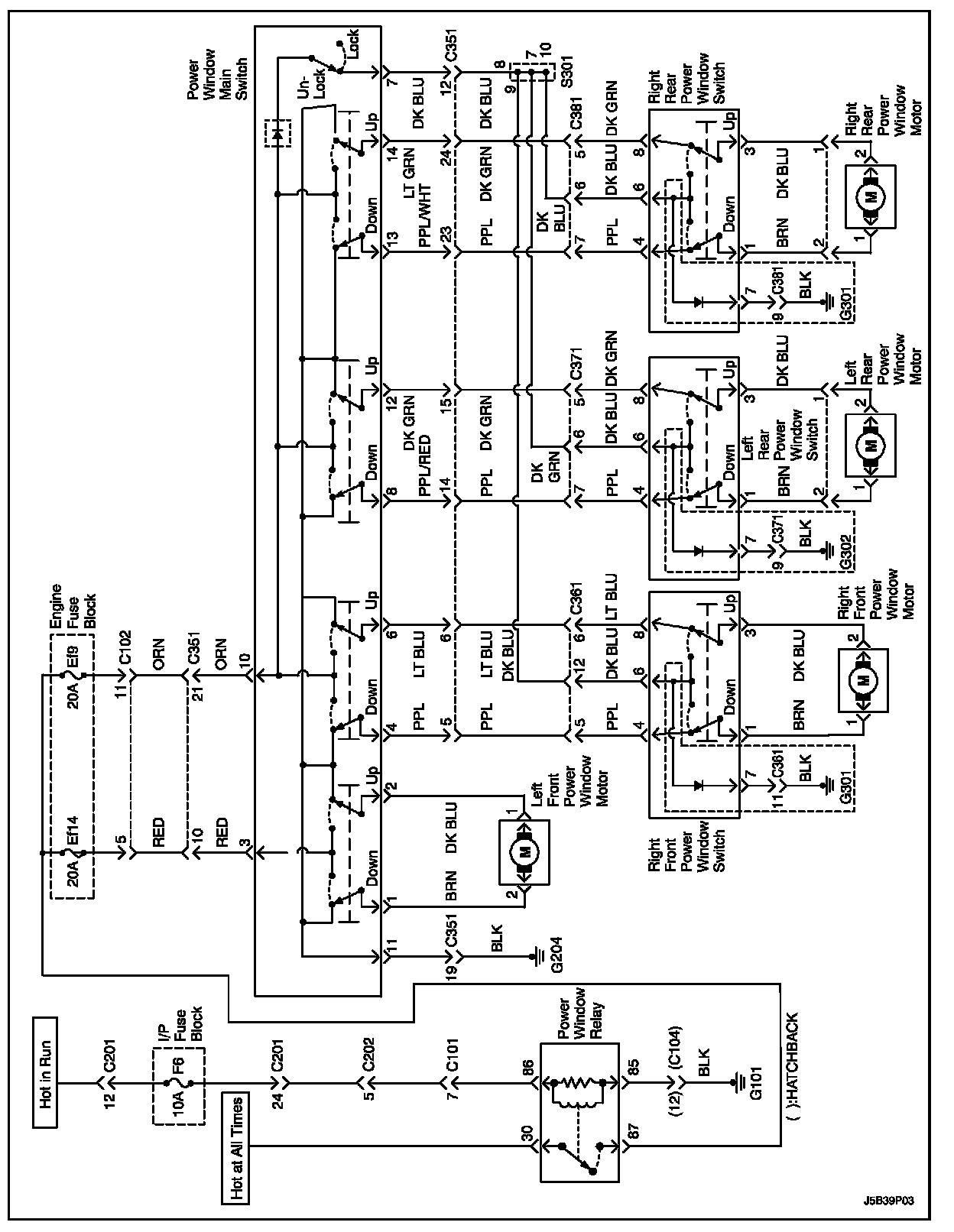

Power Windows Circuit Wiring Diagram
Power Windows Circuit Wiring Diagram
Front Only
Front and Rear
