Home >> Suzuki >> 2006 >> Reno L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> Defogger System Circuit Wiring Diagram (For Station Wagon Model)

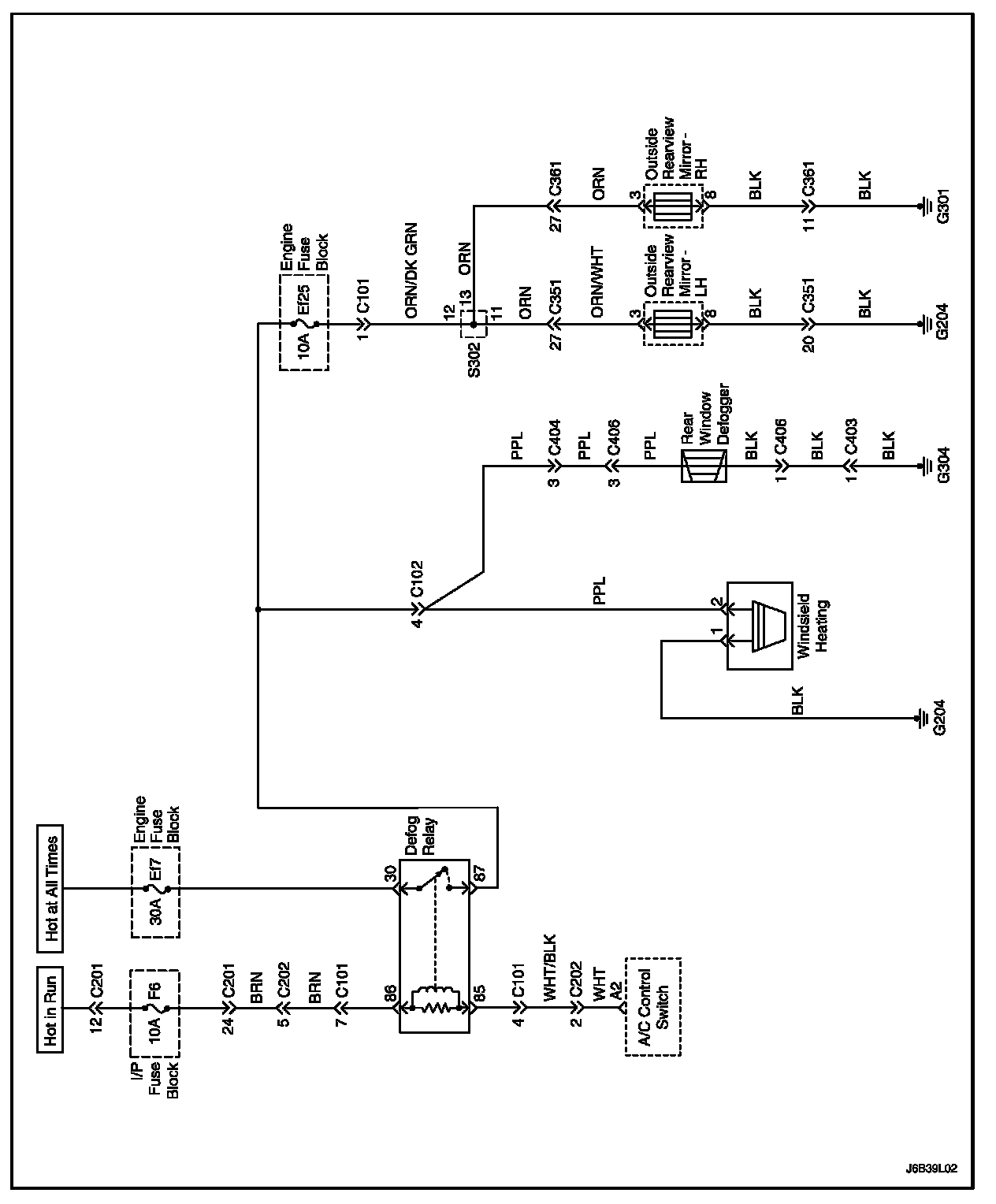

Defogger System Circuit Wiring Diagram (For Station Wagon Model)

Defogger System Circuit Wiring Diagram (For Station Wagon Model):
