Rear Brakes

Brake Hose (Rear) Removal and Installation
Removal
1. Raise and suitably support the vehicle.

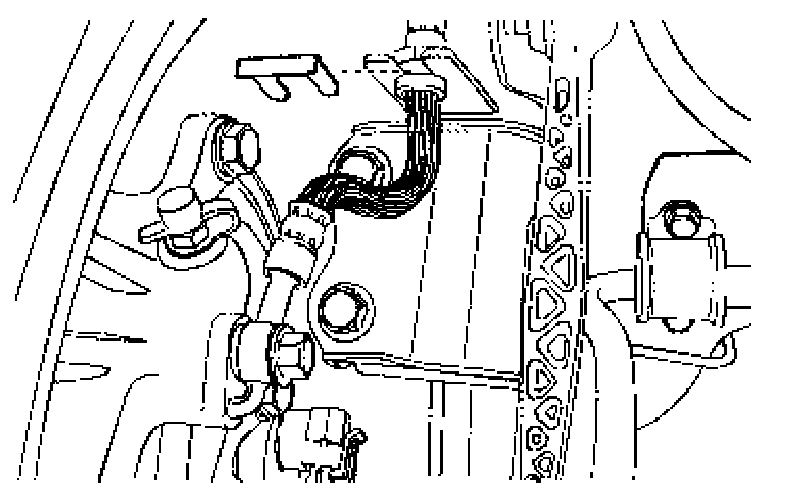

2. Remove the brake hose retainer.

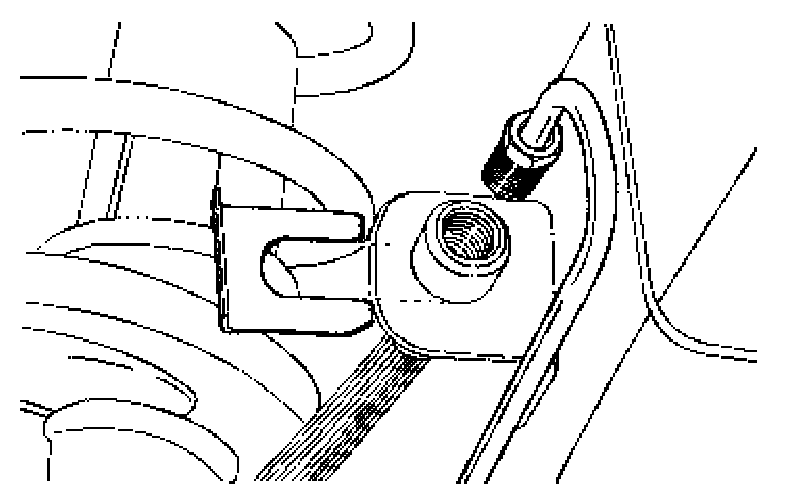

3. Disconnect the brake pipe line from the disc brake hose.





4. Remove the rear disc brake hose retainer and the brake hose from the bracket on the steering knuckle shaft.

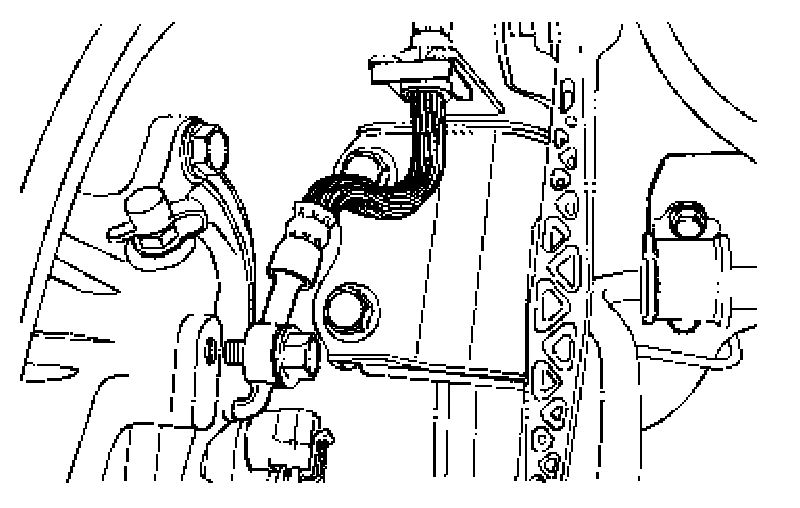

5. Remove the rear disc brake hose from the caliper.

Installation

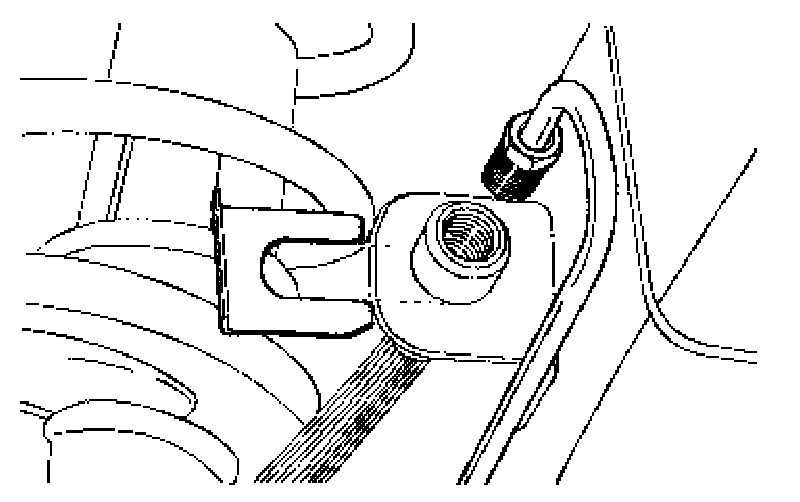

1. Connect the brake pipe line to the brake hose.
Tighten: Tighten the brake line to 16 Nm (12 ft. lbs.).





2. Install the retainer onto the rear brake hose bracket from the wheel house.

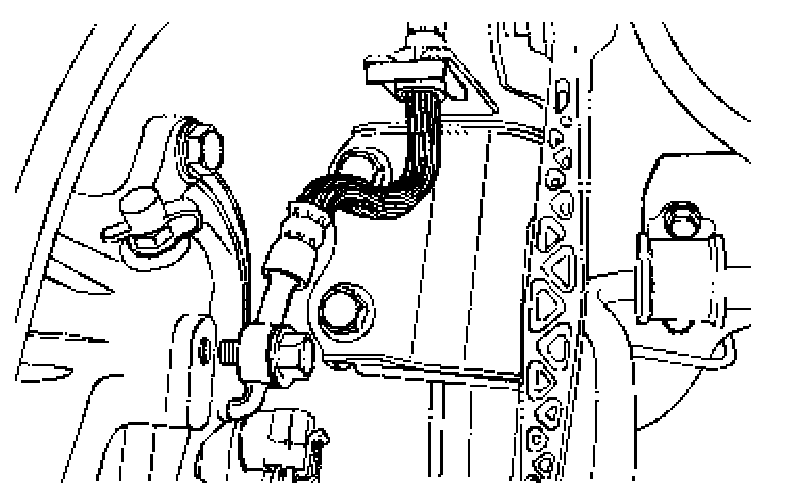

3. Install the rear disc brake hose to the caliper.
Tighten: Tighten the rear disc brake hose-to-caliper bolt to 32 Nm (24 ft. lbs.).
4. Install the rear disc brake hose and retainer on the bracket on the steering knuckle shaft.
5. Lower the vehicle.
6. Bleed the brake system.





7. Check the brake system for leaks.
