Automatic Transmission/Transaxle
>>
System Diagram
>>

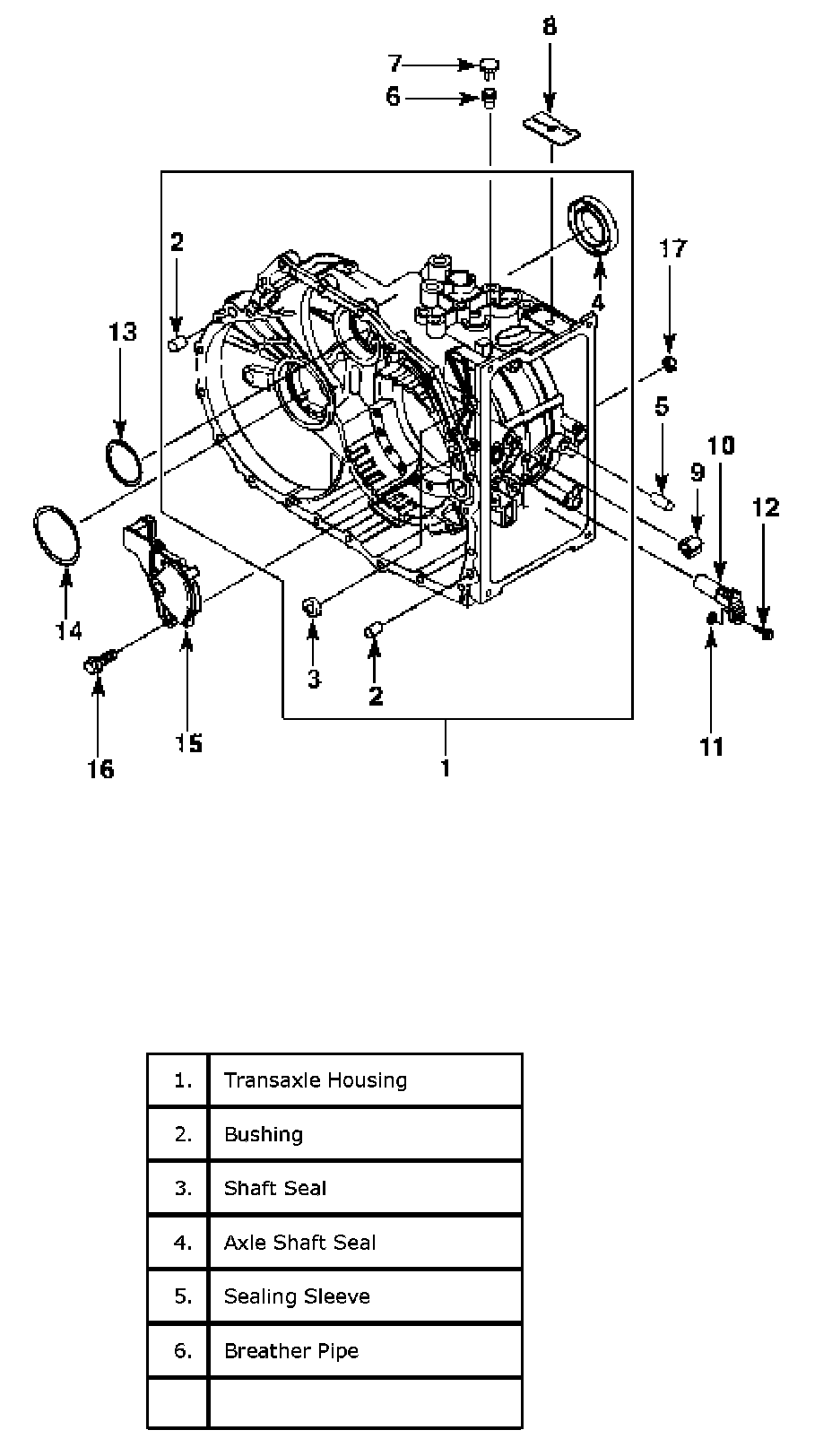

Transaxle Housing Components
Transaxle Housing Components
Part 1:
Part 2:
Transaxle Housing Components
