Home >> Suzuki >> 2006 >> Aerio L4-2.3L >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt >> Service and Repair >> Rear Seat Belt

Rear Seat Belt

Rear Seat Belt

WARNING: Be sure to read Precautions on Service and Diagnosis of Seat Belt before starting to work and observe every precaution during work.






Removal

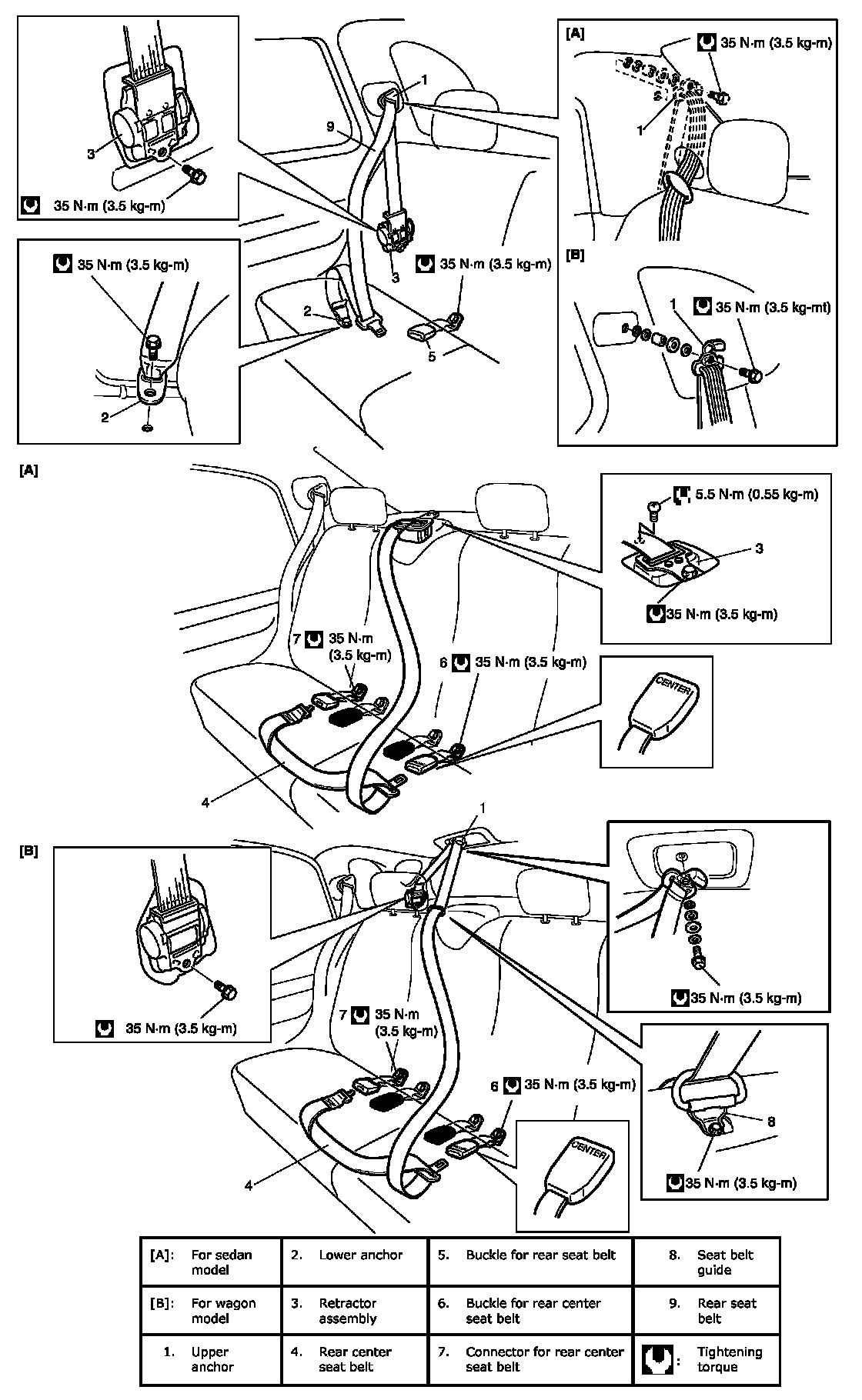

Remove rear seat belts as shown in figure.

Installation

Reference: Rear Seat Belt Inspection

Install the rear seat belt observing the same precautions as Front Seat Belt Removal and Installation.
