Home >> Suzuki >> 2006 >> Aerio L4-2.3L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> With Advanced Air Bag >> OCM

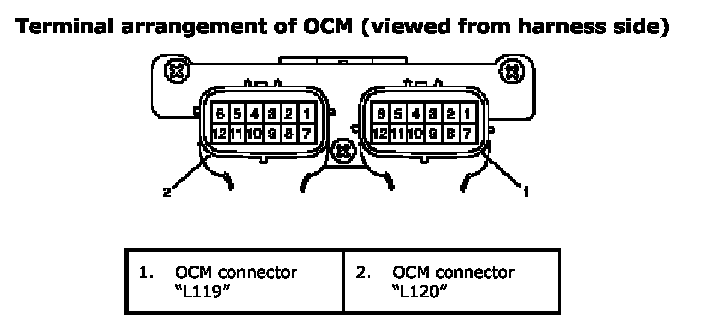

OCM

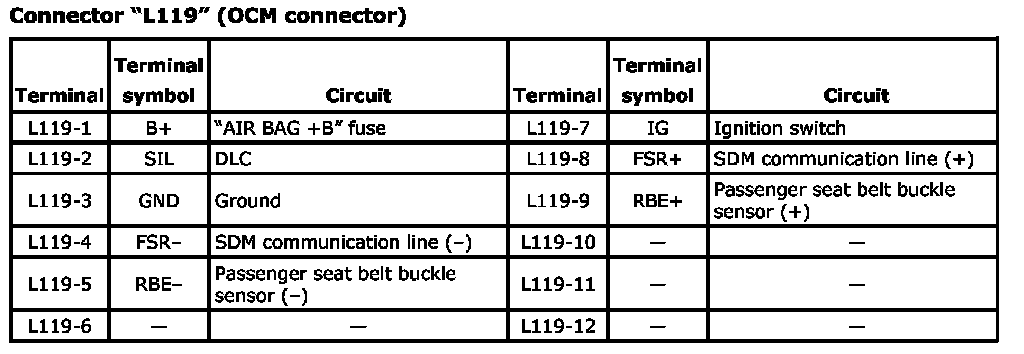

Ter. L119-1 - L119-6:

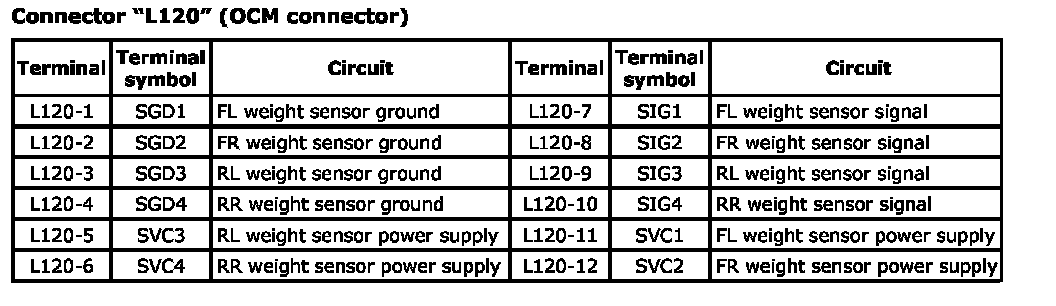

Ter. L120-1 - L120-6:
