Canister Vent Valve: Service and Repair

EVAP Canister Vent Valve Removal and Installation

REMOVAL




1. Remove EVAP canister.

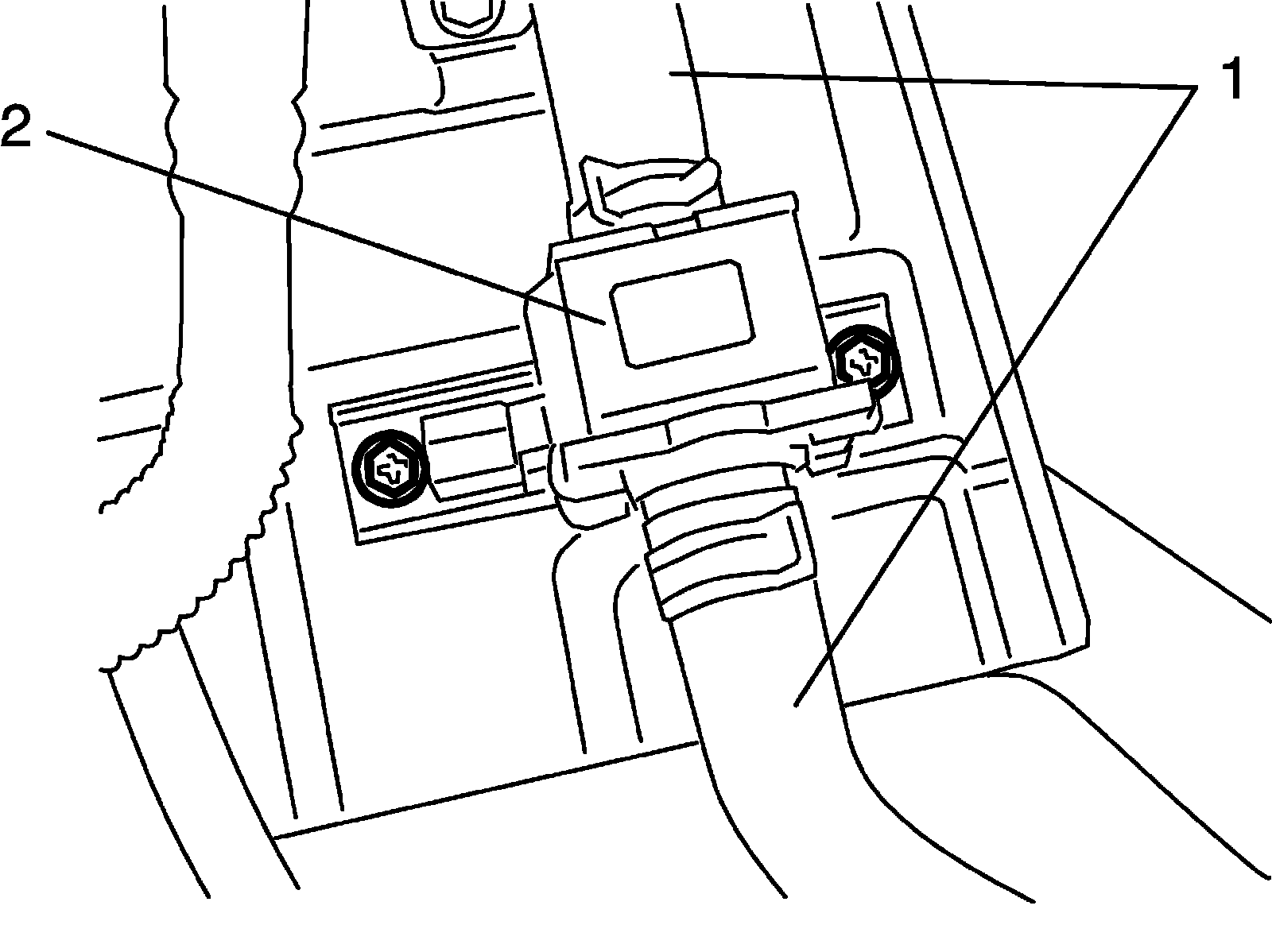

2. Disconnect vent valve hoses (1) and then remove vent valve (2) from bracket.

INSTALLATION
Reference: EVAP Canister Vent Valve Inspection




1. Connect vent valve hoses to EVAP canister vent valve.

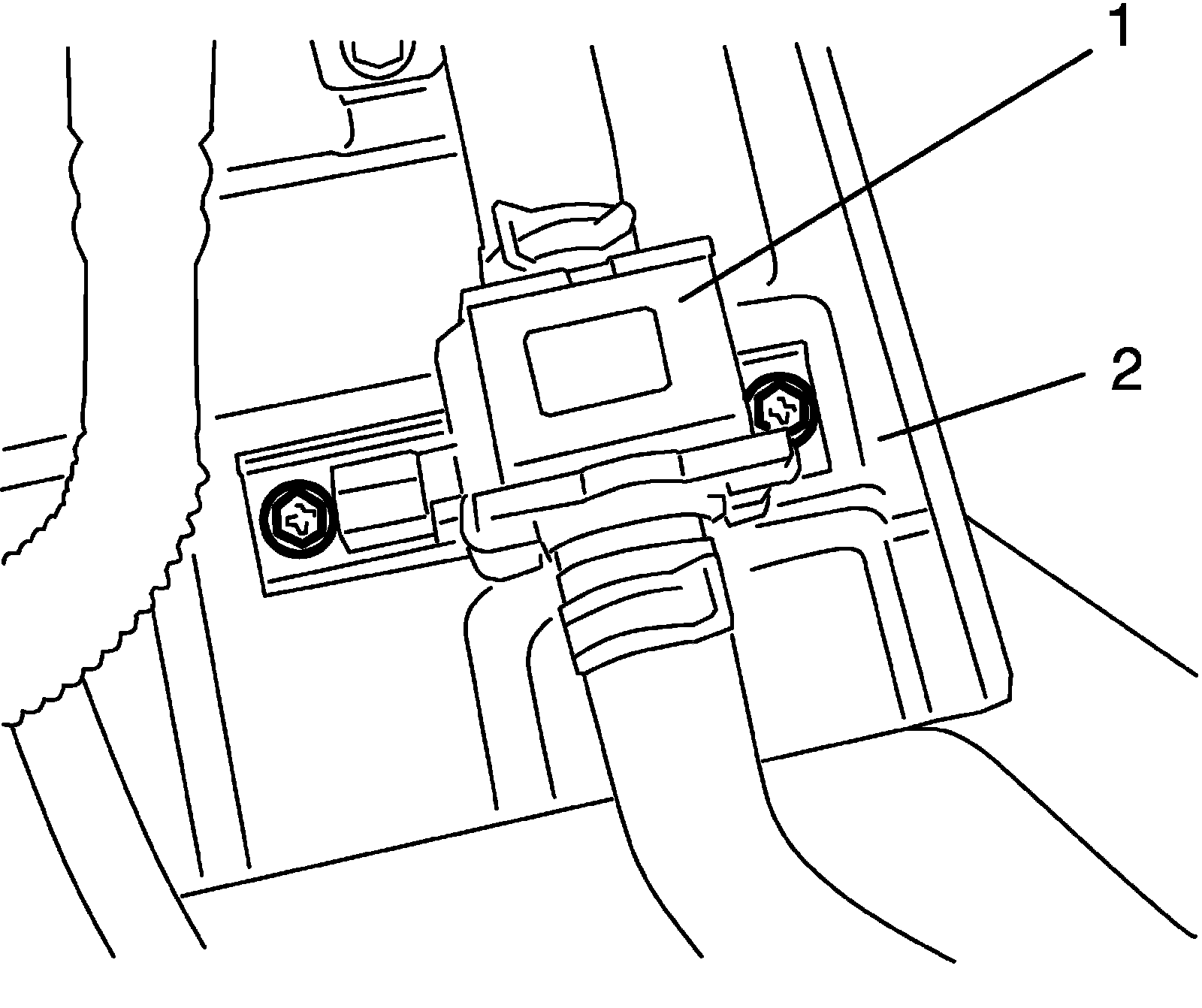

2. Install vent valve (1) to EVAP canister bracket (2).
3. Install EVAP canister.
