Vacuum and Vapor Hose Diagrams

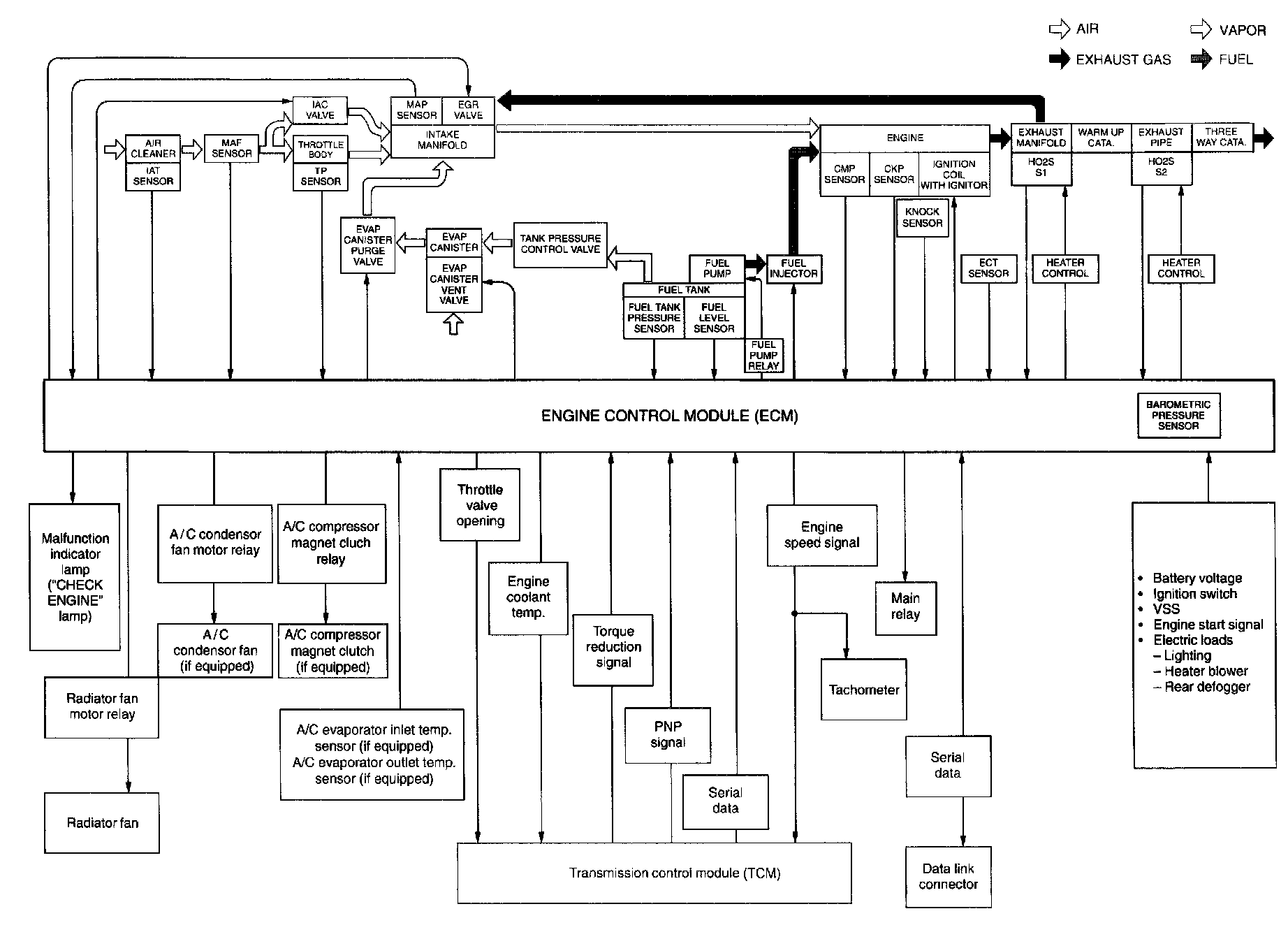

Engine And Emission Control System Flow Diagram:

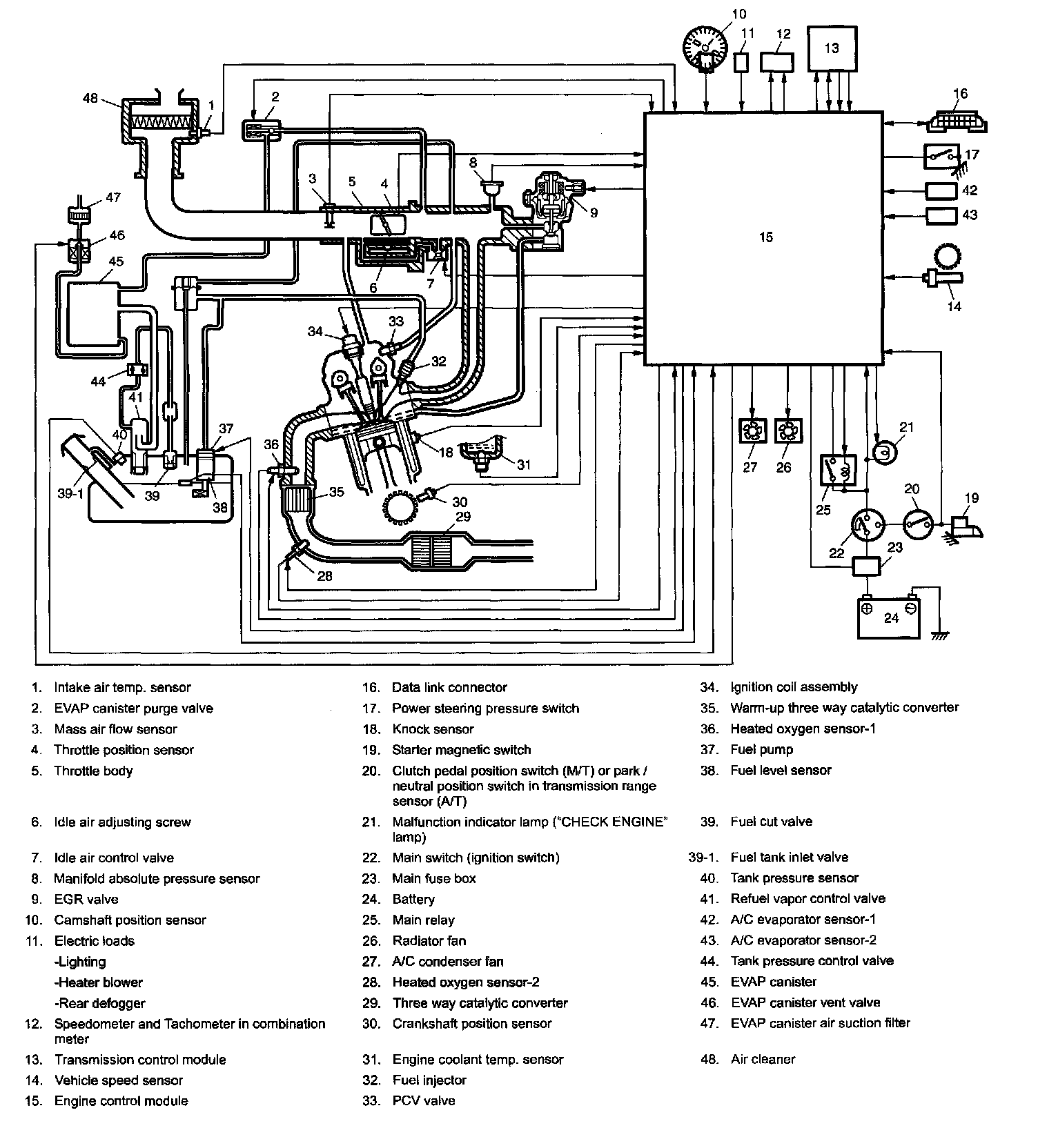

Engine And Emission Control System Diagram:
