Instrument Cluster / Carrier: Testing and Inspection

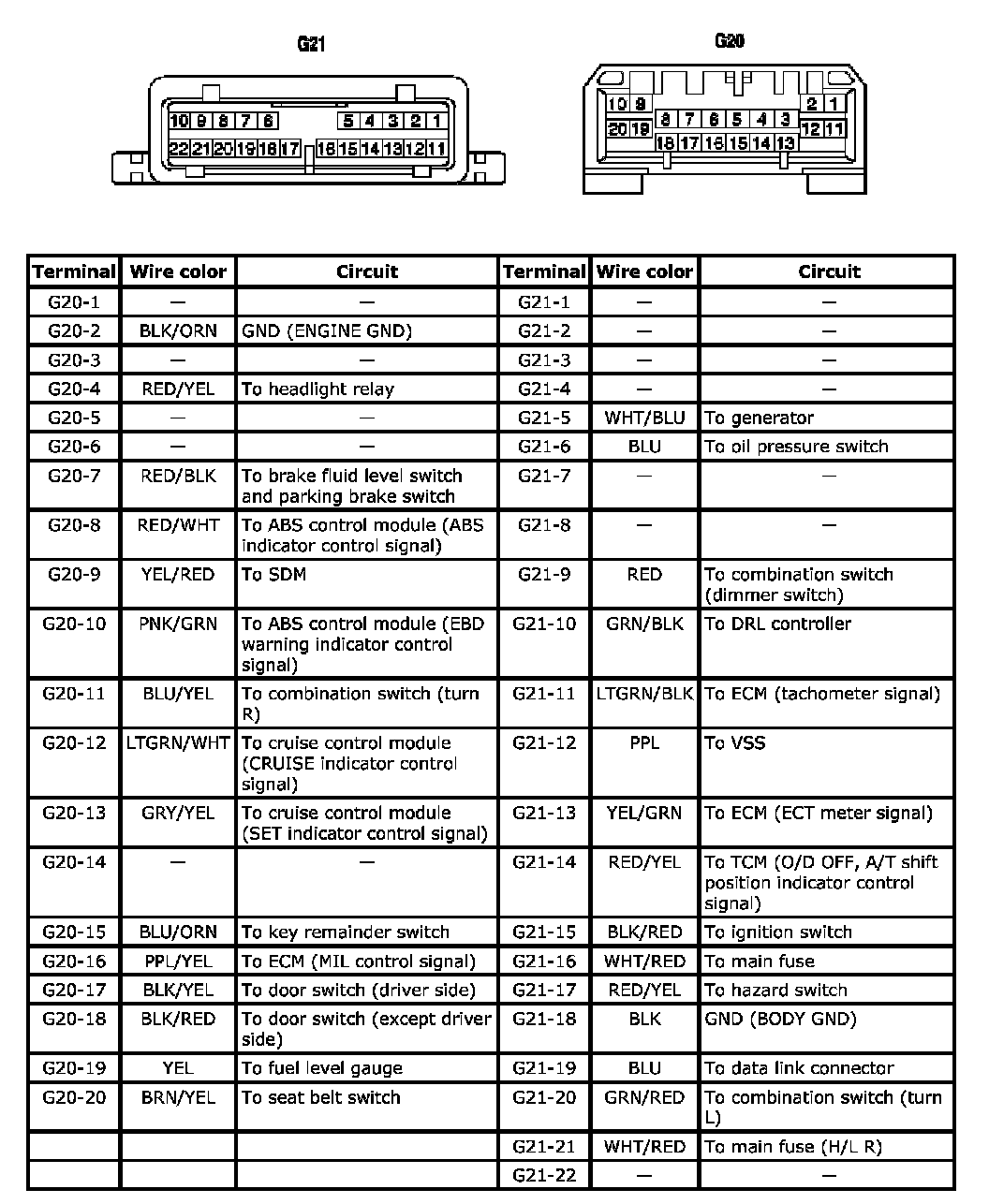

Terminal arrangement of coupler viewed from harness side:
