Temperature Control Actuator

Temperature Control Actuator Removal and Installation

Removal

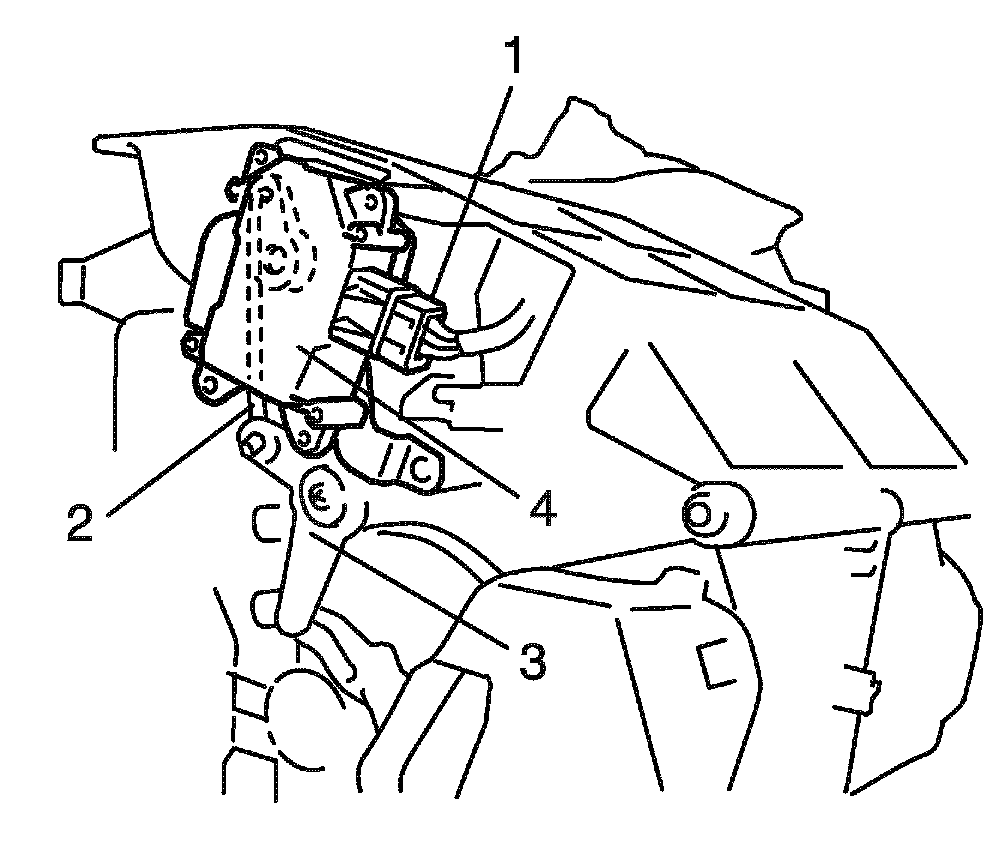

1. Disconnect negative (-) cable at battery.
2. Disconnect connector (1).
3. Detach temperature control actuator rod (2) from linkage (3).
4. Remove temperature control actuator (4) from heater unit.

Installation
Reference: Temperature Control Actuator Inspection

Reverse removal procedure to install temperature control actuator.
