Air Intake Control Actuator

Air Intake Control Actuator Removal and Installation

Reference: Blower Unit Components

Removal
1. Disconnect negative (-) cable at battery.
2. Remove glove box.

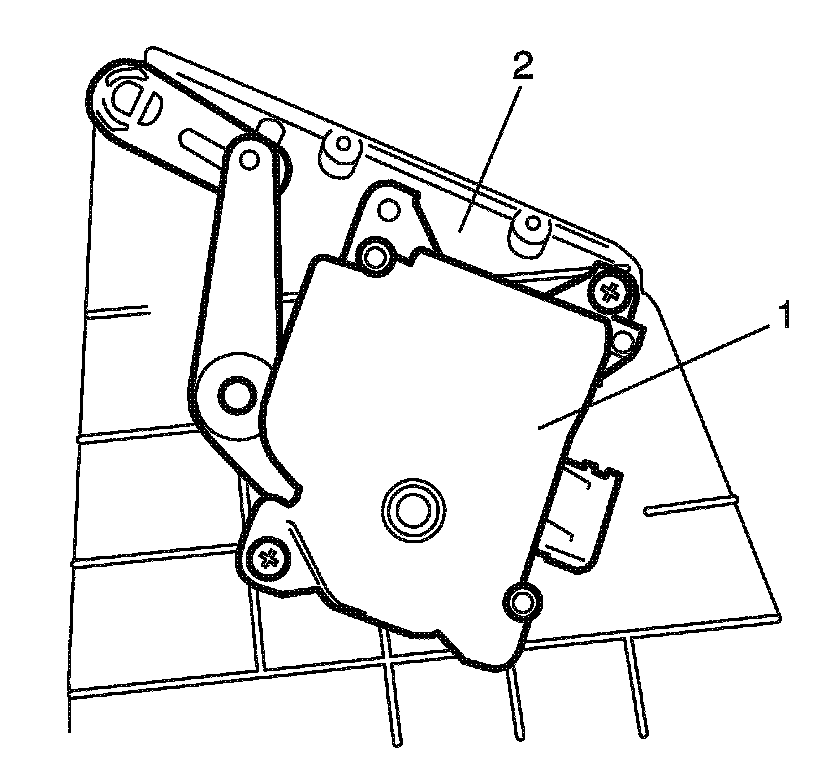

3. Disconnect air intake control actuator connector from air intake control actuator (1).
4. Remove air intake control actuator from blower unit (2).

Installation
Reference: Air Intake Control Actuator Inspection
Reverse removal procedure to install air intake control actuator.
