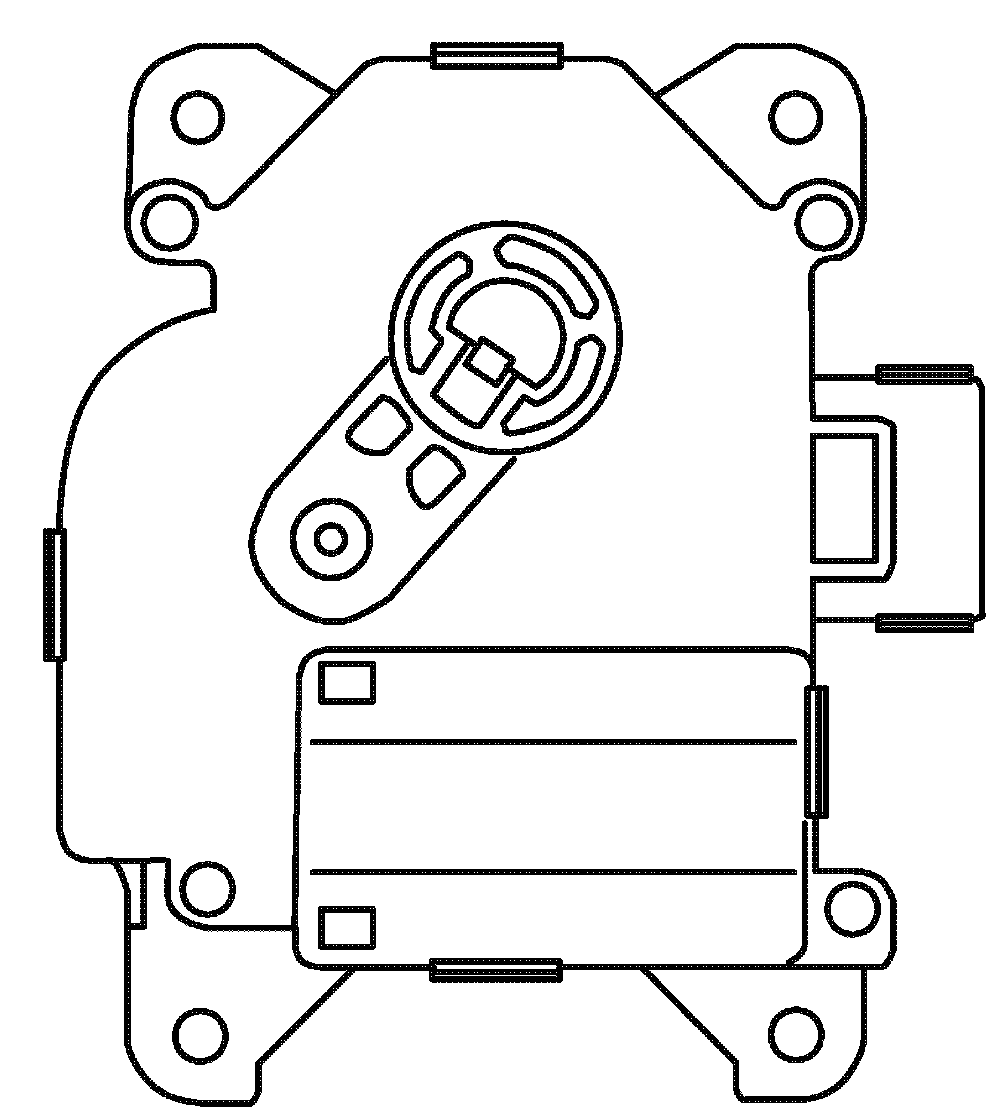

Air Flow Control Actuator

Air Flow Control Actuator Removal and Installation

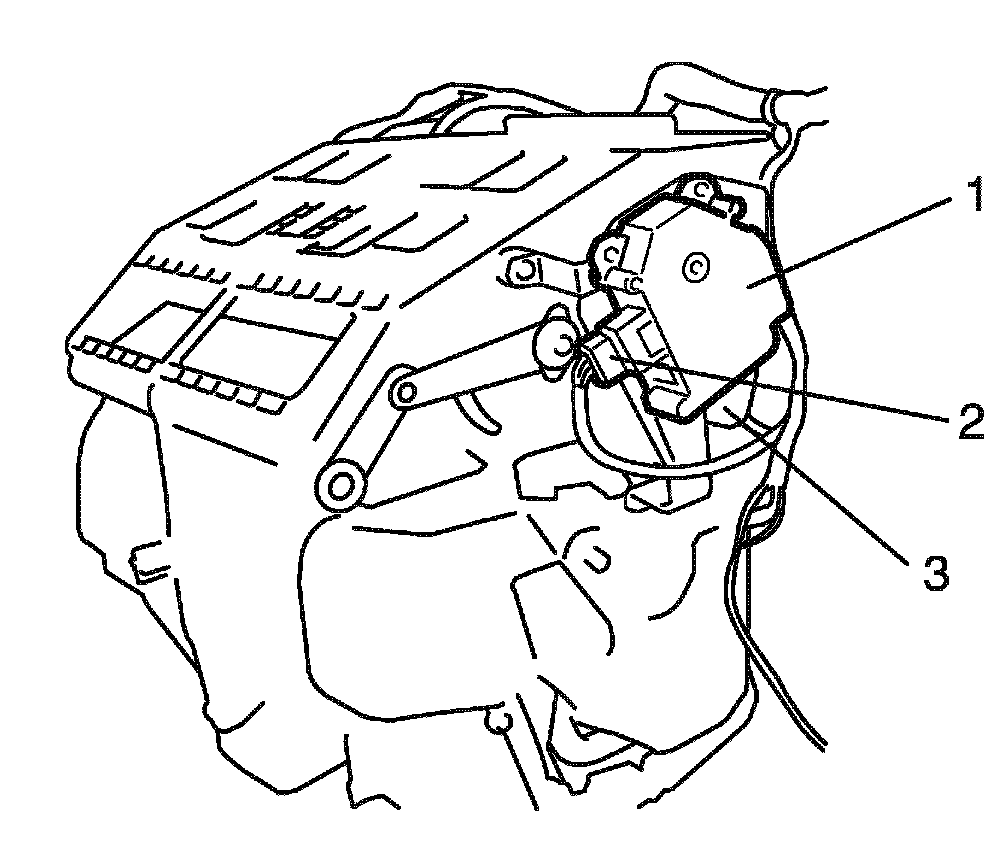

Removal
1. Set air flow selector to DEF position.
2. Disconnect negative cable at battery.




3. Disconnect connector (2).
4. Remove air flow control actuator (1) from heater unit, and then detach air flow actuator rod from clip on linkage (3).

Installation

Reference: Air Flow Control Actuator Inspection




1. Install air flow control actuator on heater unit, and then connect connector to air flow control actuator.
2. Set air flow selector to DEF position with ignition on.

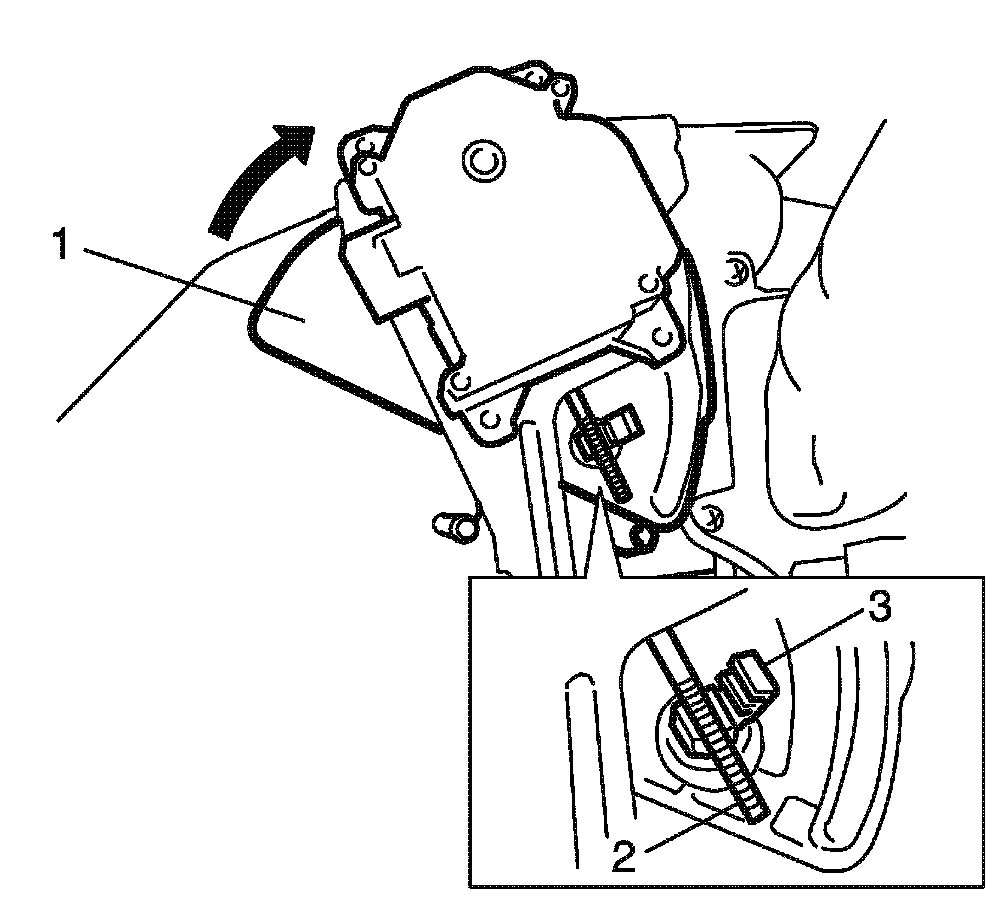

3. Set position of air flow selector linkage (1) to DEF position by rotating the linkage to the arrow direction till it stops.
4. Engage air flow control actuator rod (2) with the clip (3).
