Suzuki
>>
2006
>>
Aerio L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Door Locks
>>
Rearend Door Lock Assembly
Rearend Door Lock Assembly

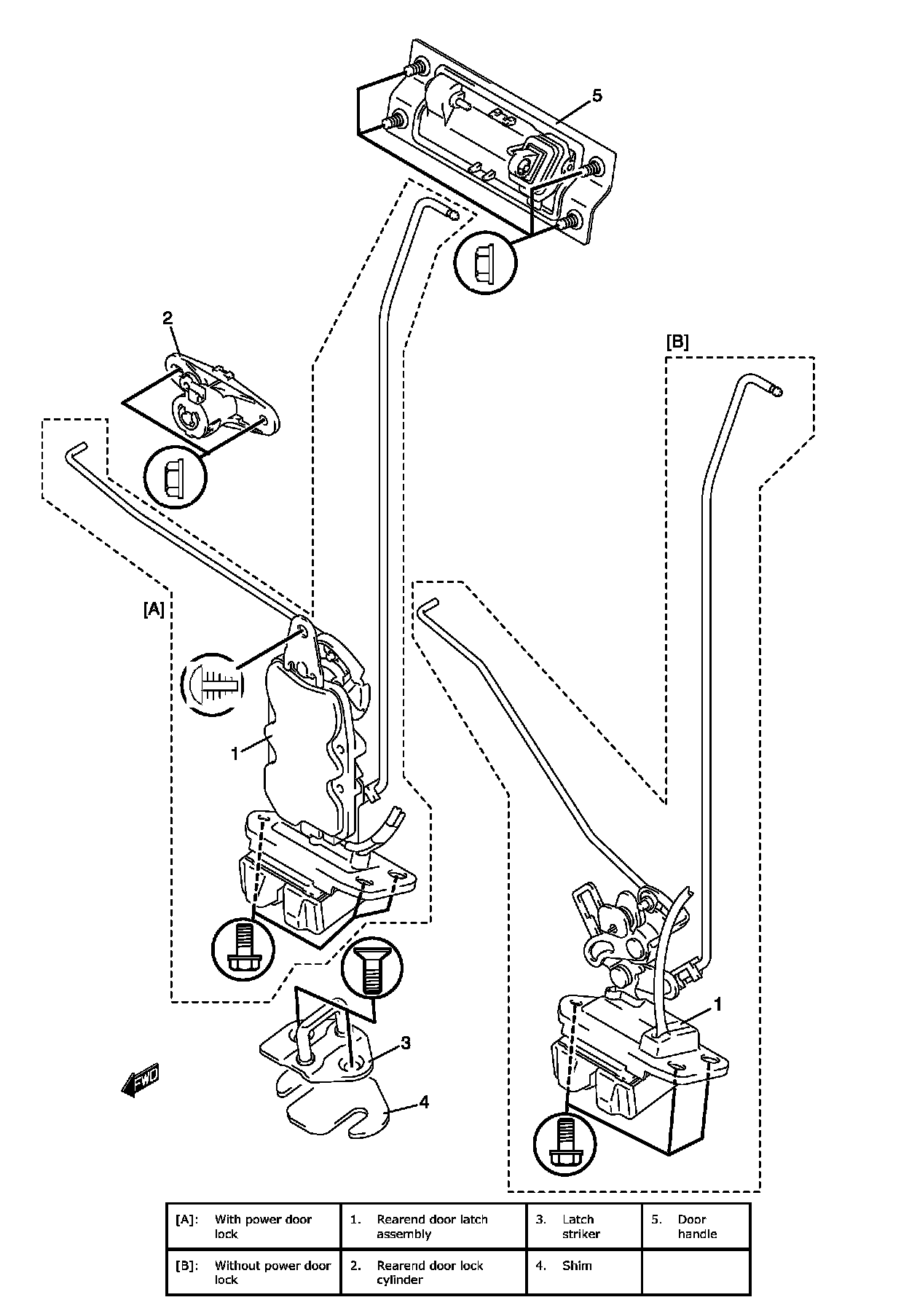

Rearend Door Lock Assembly (for Wagon Model) Components:
