Woofer Speaker

WOOFER SPEAKER REMOVAL AND INSTALLATION

Removal
1. Disconnect negative cable at battery.
2. Remove driver side front seat.

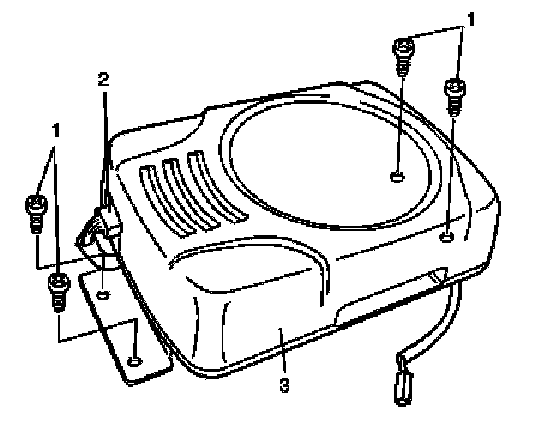

3. Remove 4 speaker mounting screws (1).




4. Disconnect speaker coupler (2) from woofer speaker (3).

Installation
Reverse removal procedure to install woofer speaker noting the following point.
- When installing woofer speaker, be careful not to catch any wiring harness.
- Install driver side front seat.
