Wagon Rear

REAR SPEAKER (FOR WAGON MODEL) REMOVAL AND INSTALLATION

Removal

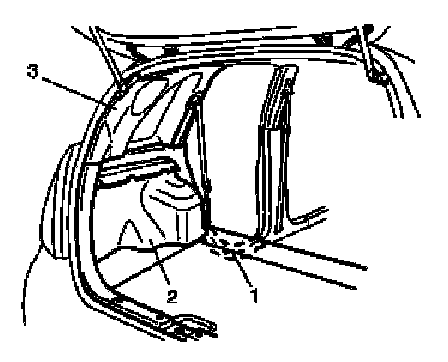

1. Remove rear side sill scuff (1), quarter inner trim (2) and quarter window trim (3).
2. Remove 3 rear speaker mounting screws.
3. Remove rear speaker from side panel.
4. Disconnect rear speaker coupler from rear speaker.

Installation
Reverse removal procedure.
