Tweeter Speaker

TWEETER SPEAKER REMOVAL AND INSTALLATION

Removal
1. Disconnect negative cable at battery.

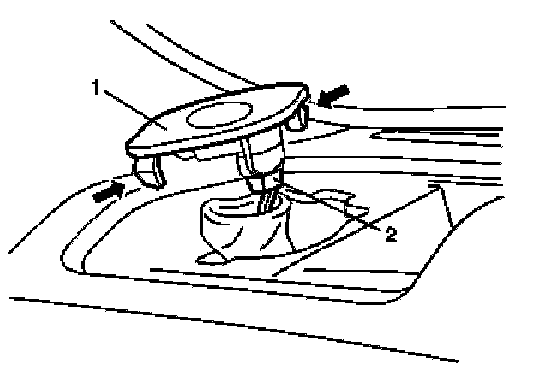

2. Remove tweeter cover (1) from instrument panel as shown.

CAUTION: To prevent instrument panel from scratch, wrap flat head screw driver or the like (2) with tape.

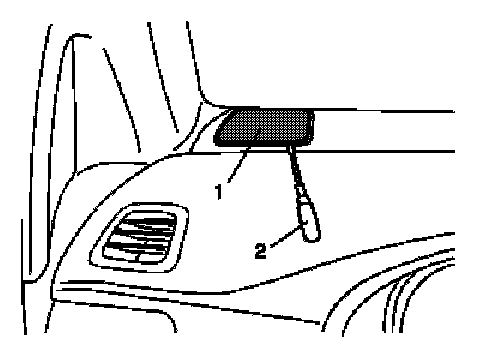

3. Remove tweeter speaker (1) from instrument panel.




4. Disconnect connector (2) from tweeter speaker (1).

Installation
Reverse removal procedure.
