Sedan Rear

REAR SPEAKER (FOR SEDAN MODEL) REMOVAL AND INSTALLATION

Removal
1. Fold rear seat back forward.

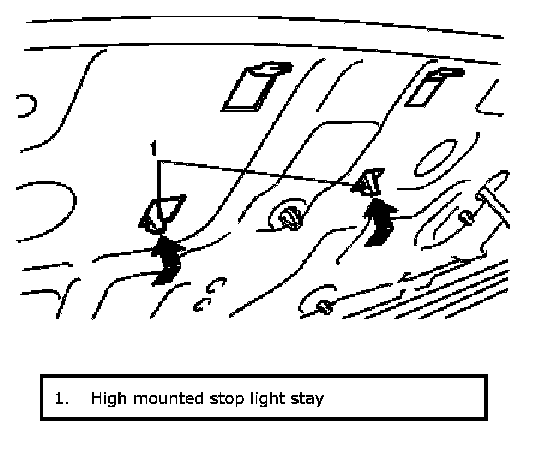

2. Remove high mounted stop light (if equipped).

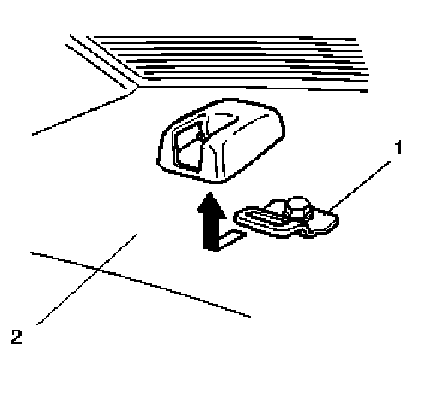

3. Remove tether anchorages (if equipped) (1) and center seat belt cover.




4. Remove partition trim (2).

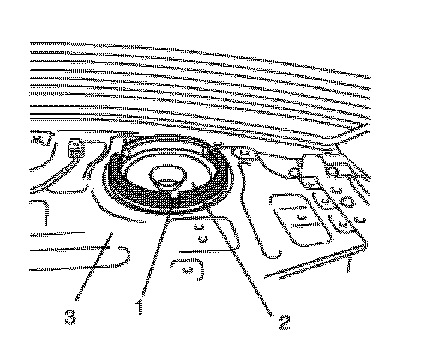

5. Remove rear speaker mounting screw (1).
6. Remove rear speaker (2) from back panel (3).




7. Disconnect rear speaker coupler from rear speaker (2).

Installation
Reverse removal procedure, noting the following.

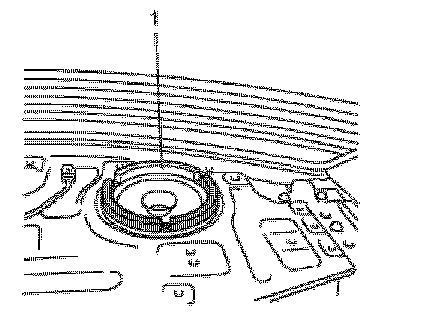

- Install rear speaker putting white cushion (1) to rear side of vehicle.
