Front

FRONT SPEAKER REMOVAL AND INSTALLATION

Removal
1. Remove door trim referring to Step 1.to 3.of Front Door Glass Removal and Installation.

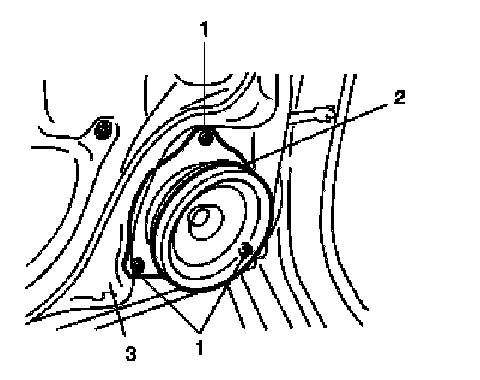

2. Remove 3 front speaker mounting screws (1).
3. Remove front speaker (2) from front door (3).




4. Disconnect front speaker coupler from front speaker (2).

Installation
Reverse removal procedure.
