Wagon

ANTENNA AMPLIFIER (FOR WAGON MODEL) REMOVAL AND INSTALLATION

NOTE: Antenna amplifier for wagon model incorporated with antenna base.

Removal
1. Remove head lining referring to Head Lining Removal and Installation.

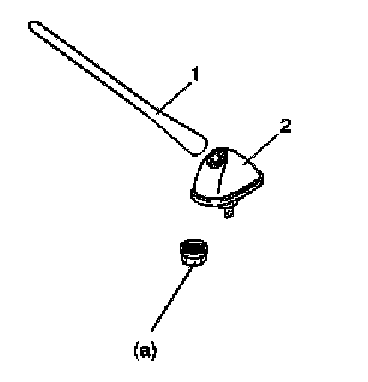

2. Remove antenna (1) from antenna base (2).
3. Disconnect antenna feeder from antenna base (2).
4. Remove antenna base (2) from vehicle.

Installation
Reverse removal procedure noting the following.




- Tighten antenna base mounting nut to specified torque.

Tightening torque
Antenna base mounting nut a: 9 N.m (0.9 kg-m, 6.5 lb-ft)
