Sedan

ANTENNA AMPLIFIER (FOR SEDAN MODEL) REMOVAL AND INSTALLATION

Removal
1. Fold rear seat back forward.

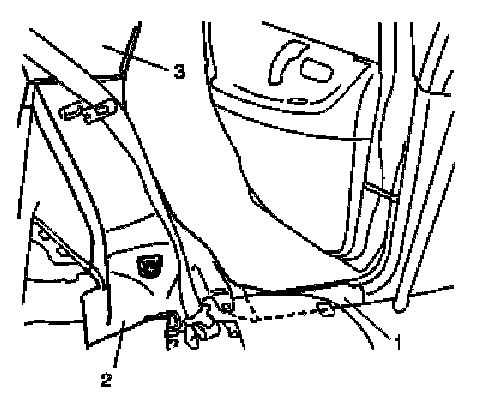

2. Remove rear side sill scuff (1), rear side lower trim (2) and rear side upper trim (3).

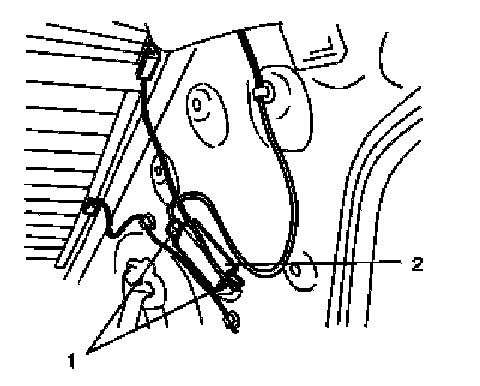

3. Disconnect 2 coupler (1) from antenna amplifier (2).




4. Remove antenna amplifier (2) from vehicle.

Installation
Reverse removal procedure.
