Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Fuse Location (Engine)
Fuse Location (Engine)

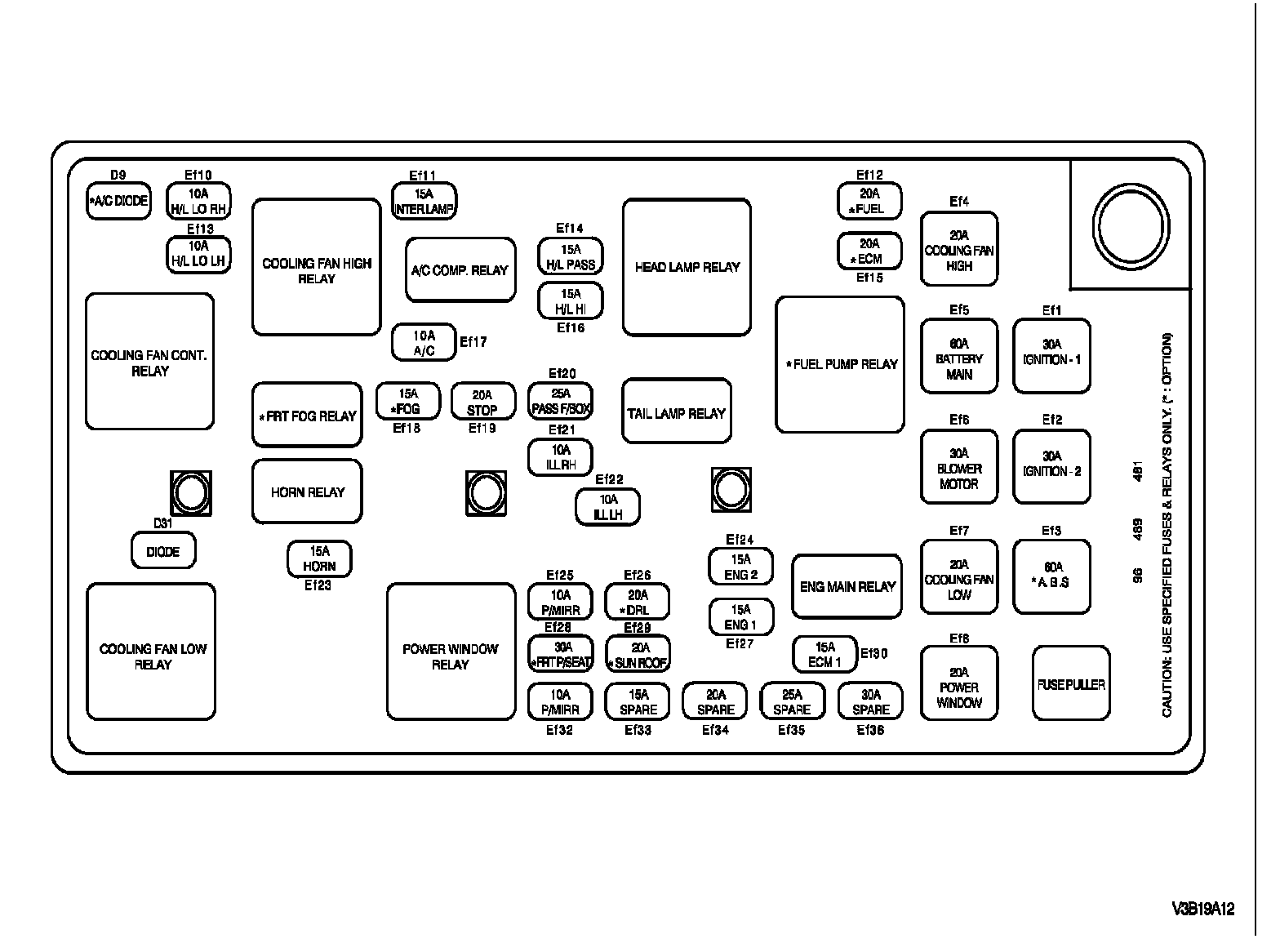

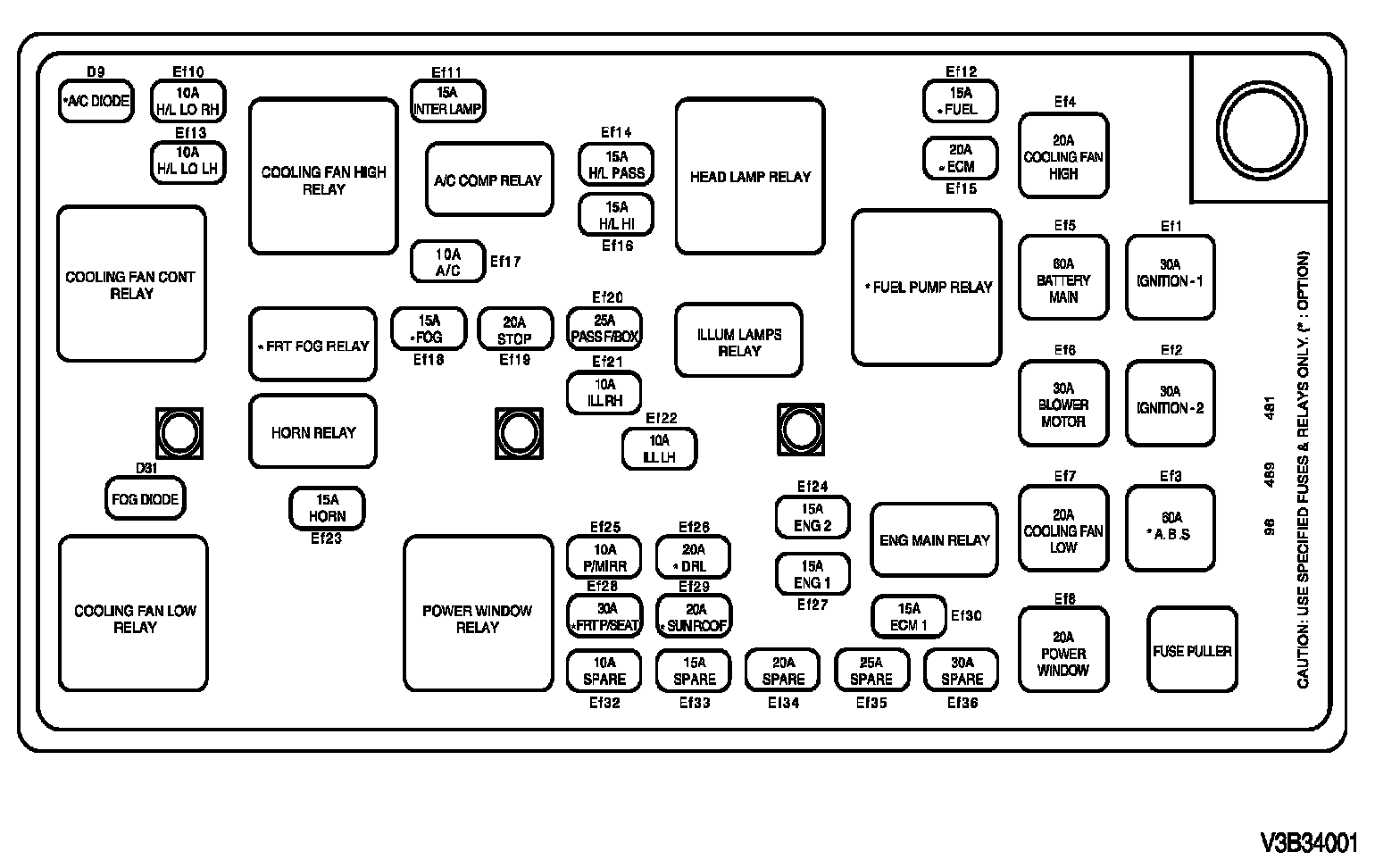

Front View:

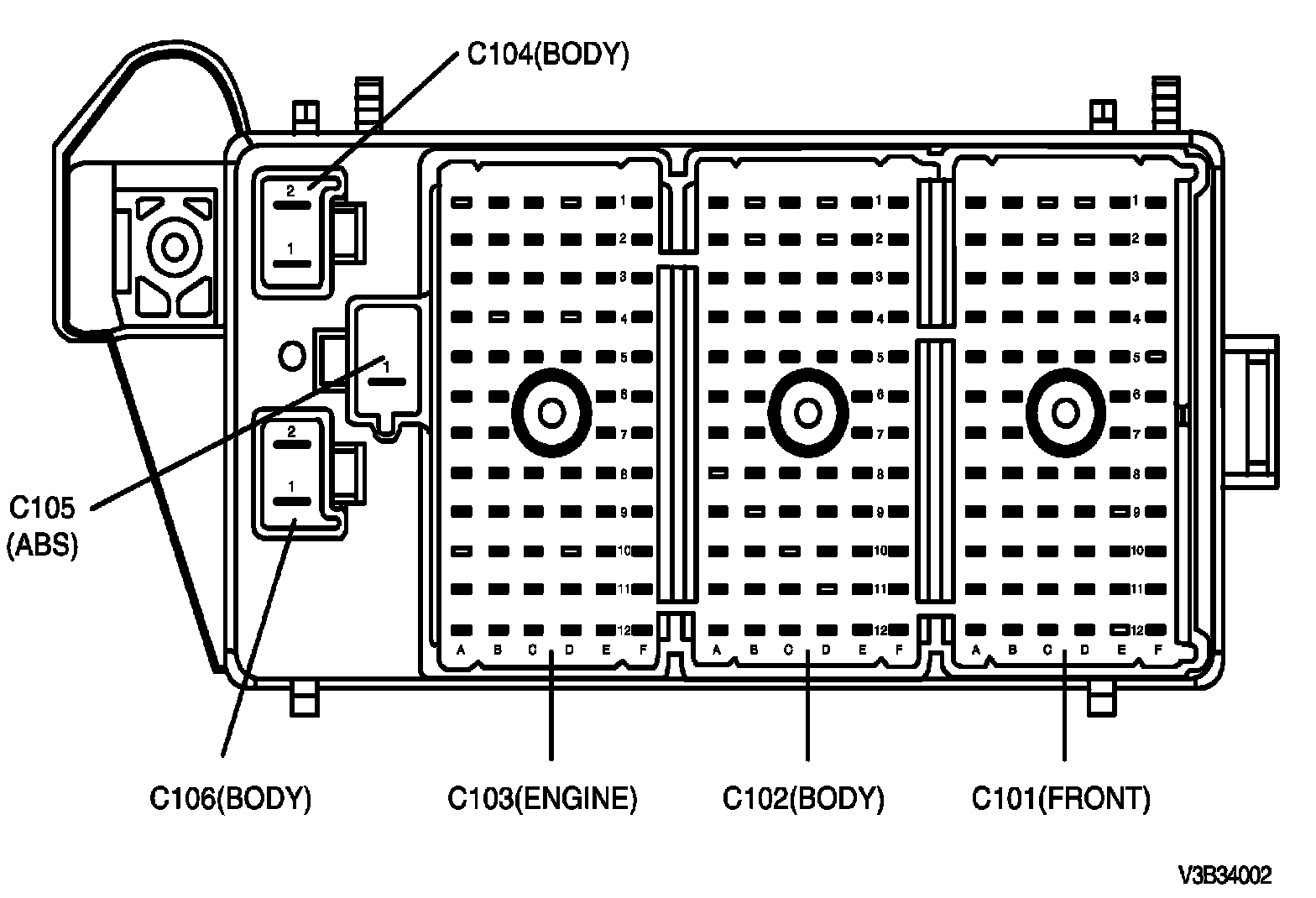

Rear View:
