Refueling Vapor Recovery System
Refueling Vapor Recovery System

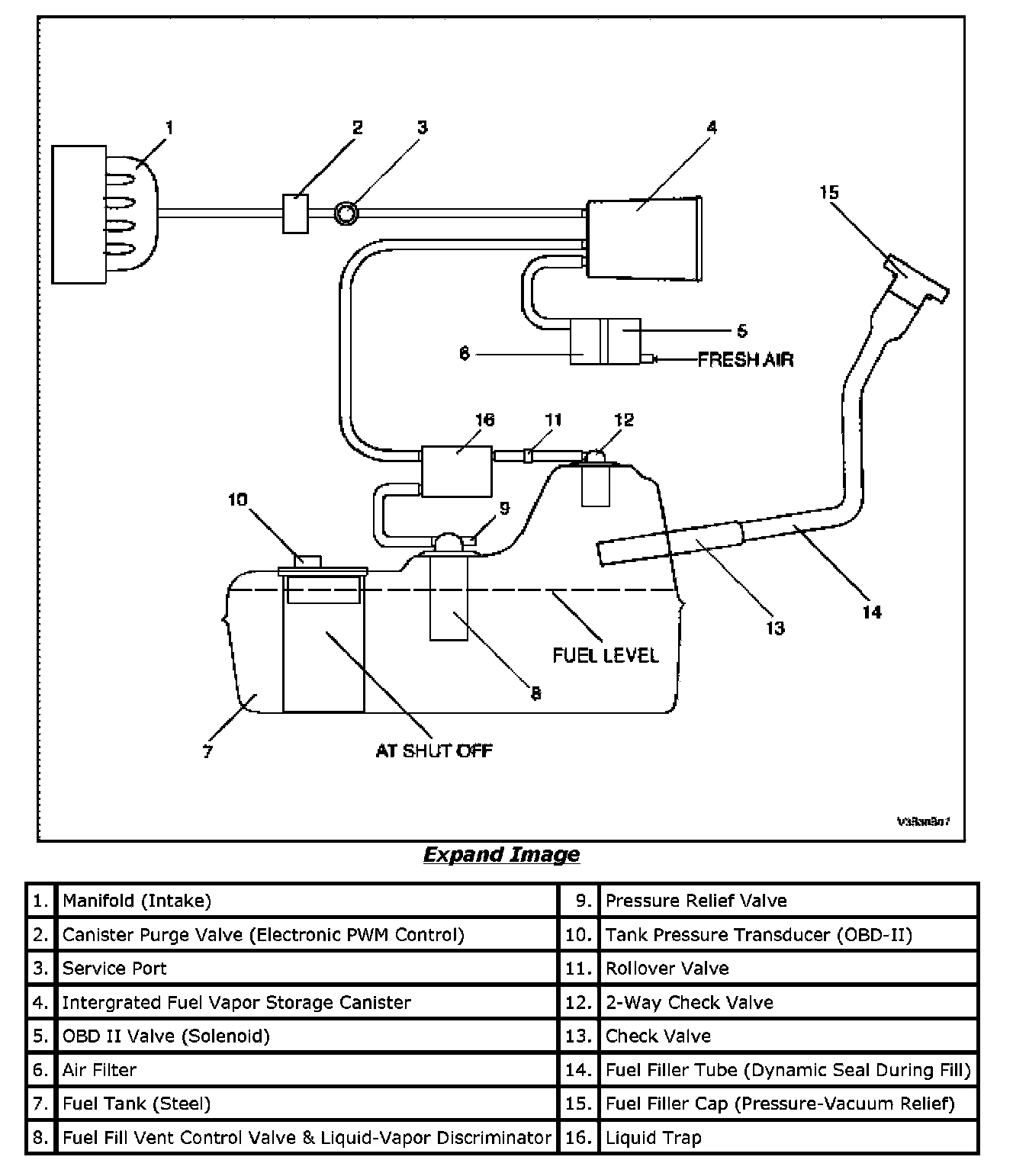

Schematic Of On Board Refueling Vapor Recovery System:
