Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2004
>>
Verona L6-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry
Keyless Entry

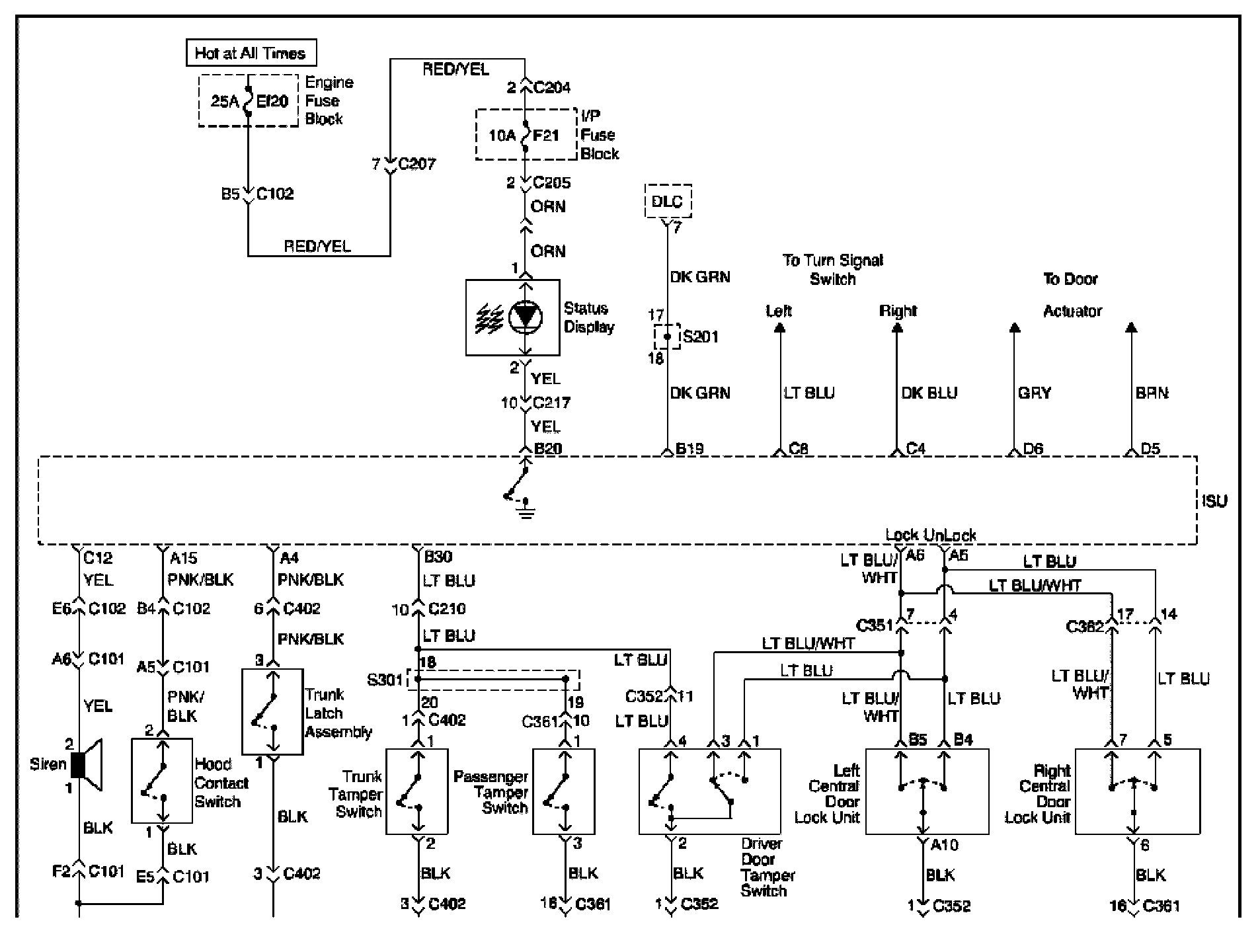

Remote Keyless Entry System With Anti-Theft System Diagram:
