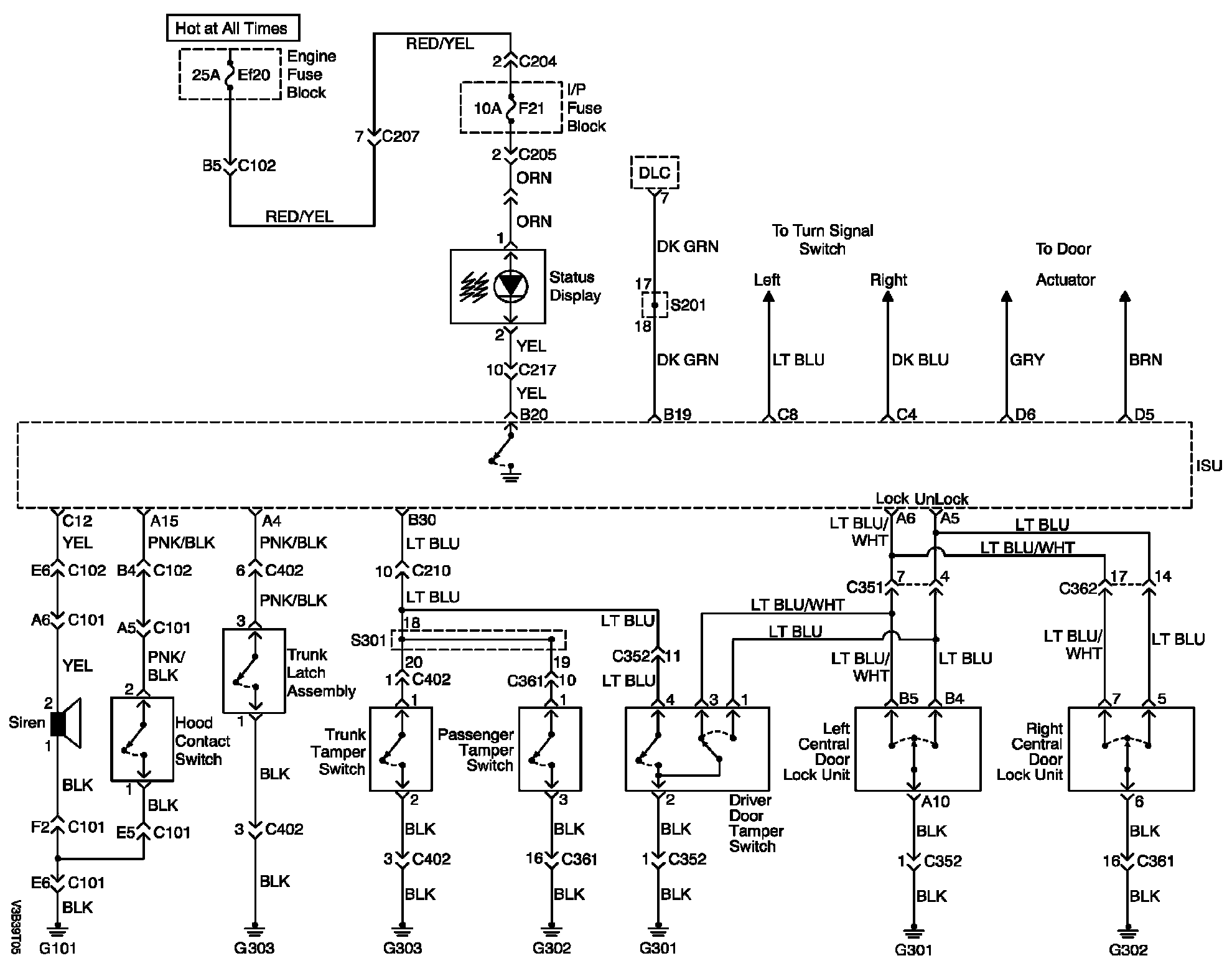

Remote Keyless Entry System With Anti-Theft System Diagram
Remote Keyless Entry System With Anti-Theft System Diagram
Remote Keyless Entry System With Anti-Theft System Diagram:
