Cruise Control System Circuit Diagram
Cruise Control System Circuit Diagram

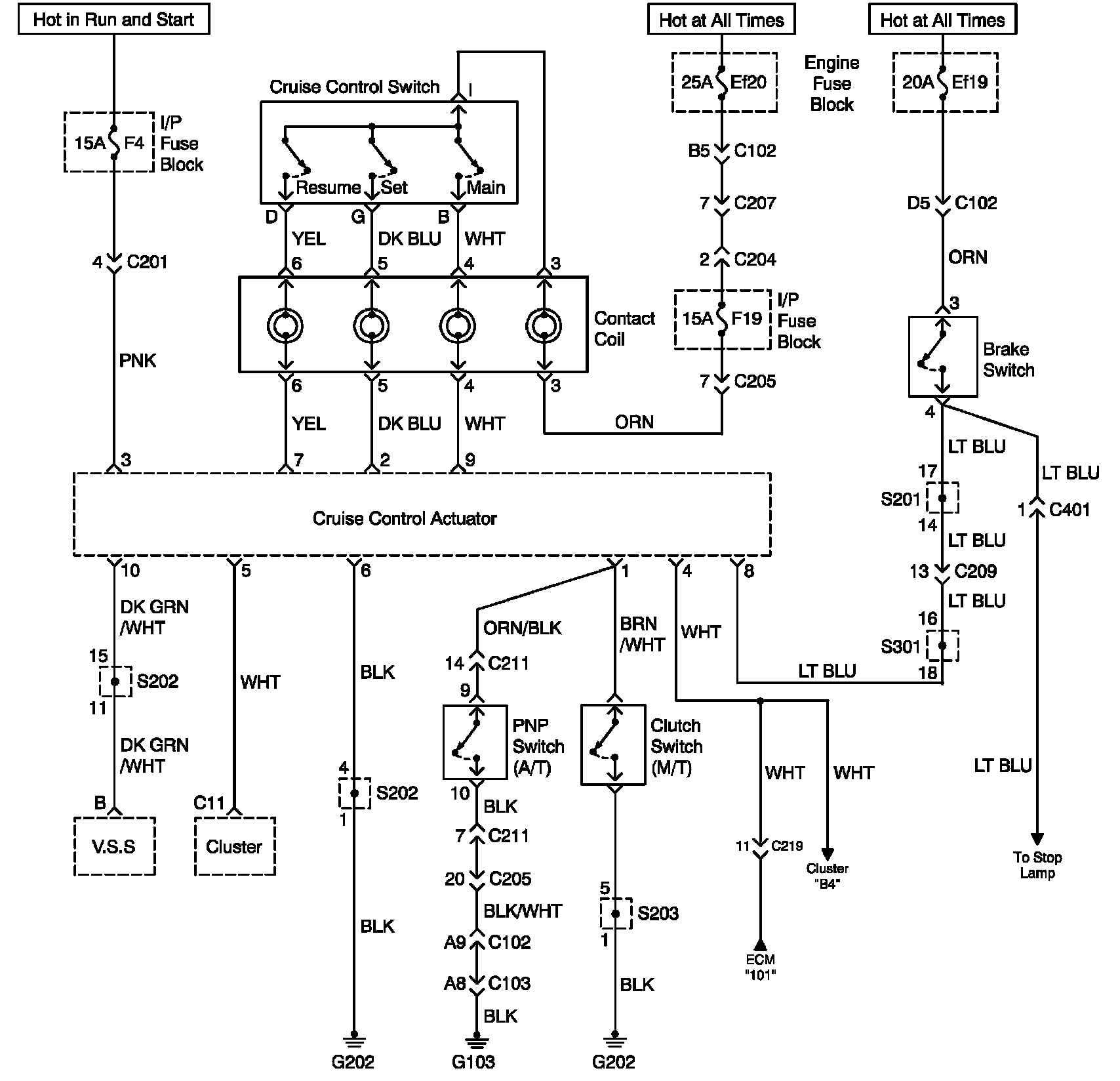

Cruise Control System Circuit Diagram:
