Home
>>
Suzuki
>>
2004
>>
Forenza L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Starting System
>>
System Diagram
System Diagram

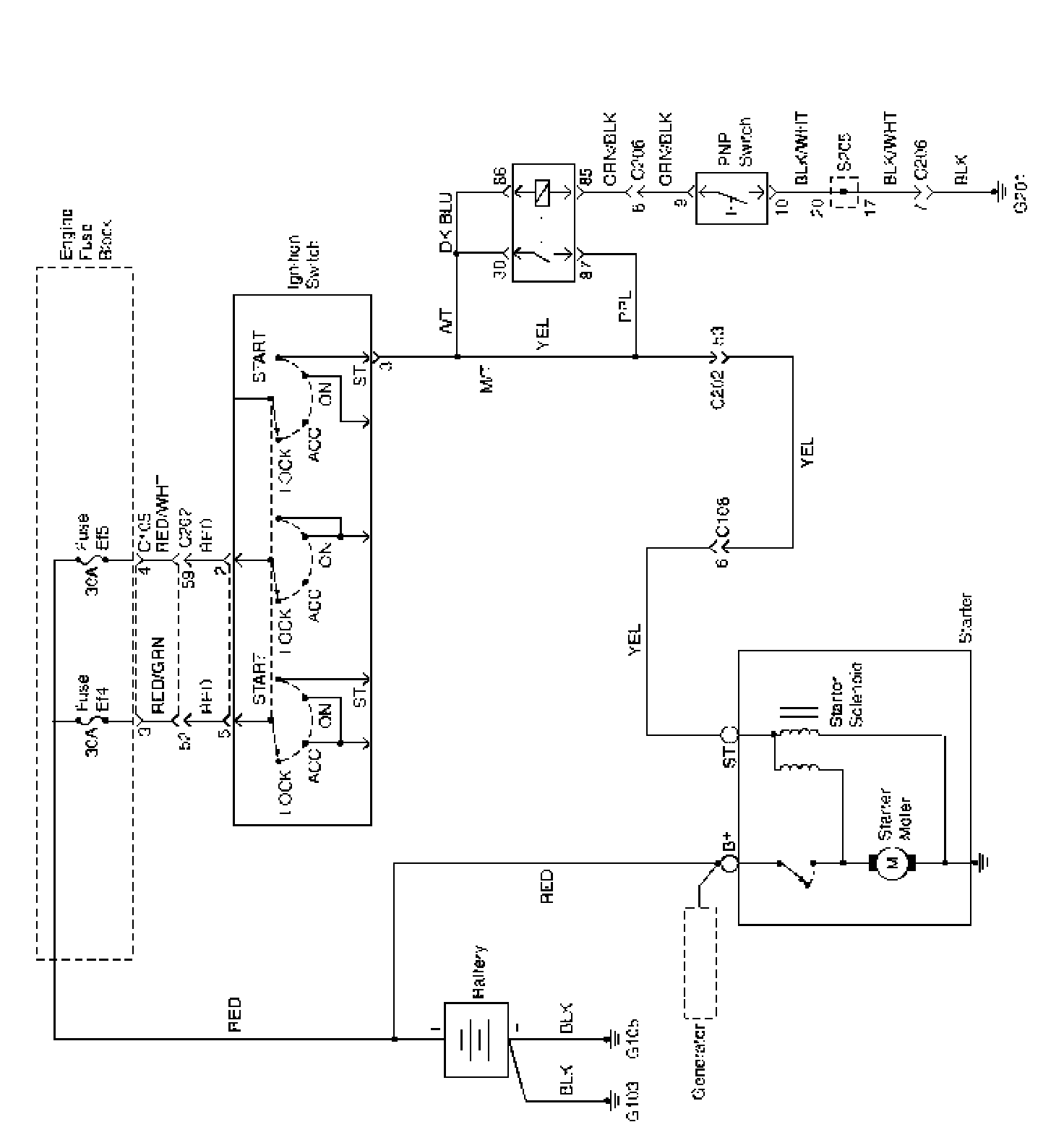

Starting System Wiring Diagram:
